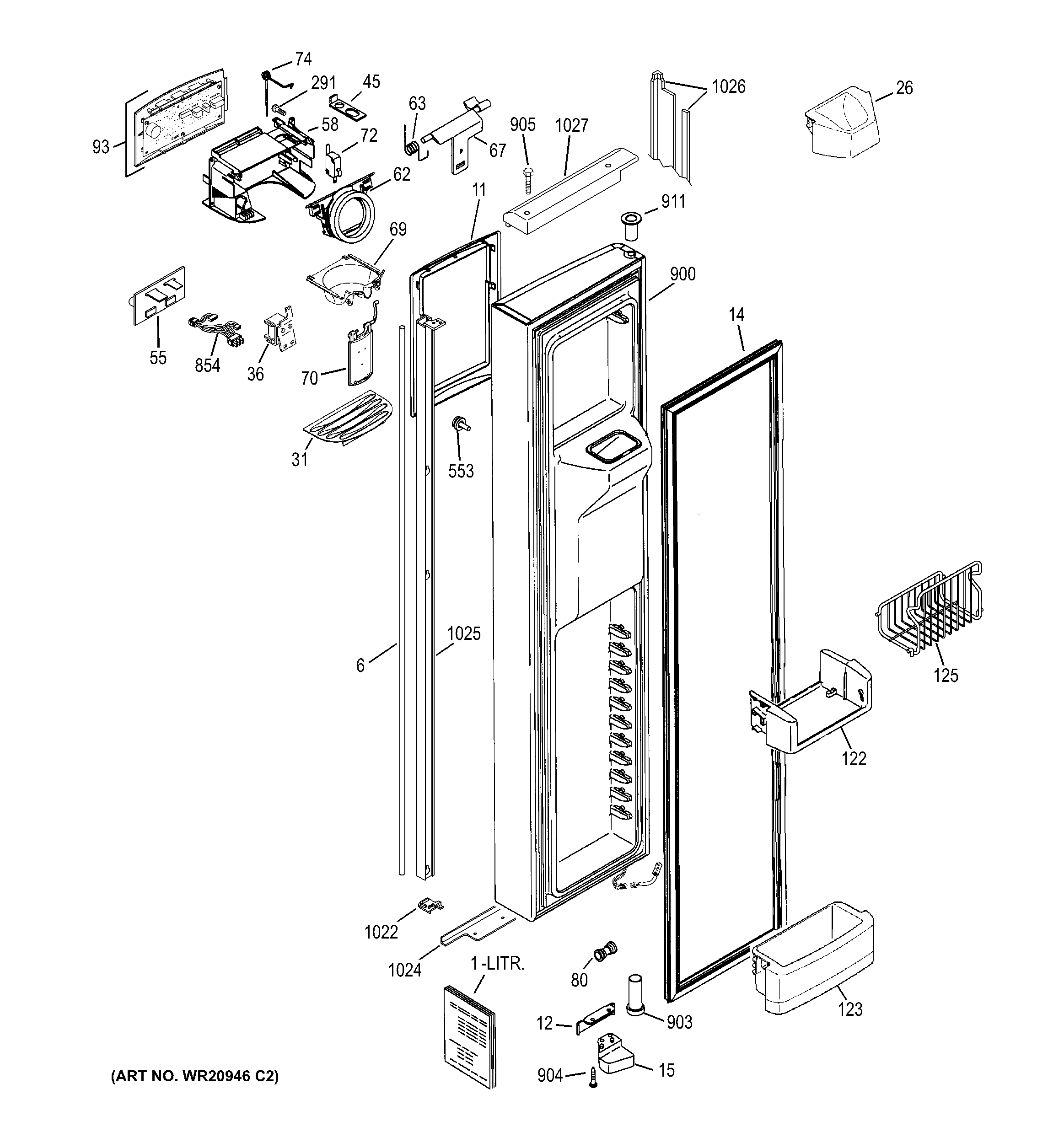

PZS23KPEBFBV FREEZER DOOR

PZS23KPEBFBV FREEZER DOOR

Written by

in

PZS23KPEBFBV FREEZER DOOR

Products

PositionProduct
1GEN 200D4303G411
1GEN 31-51706
1GEN 200D7974P001
1GEN EUX1137G008
1GEN EFX1316P009
1GEN 49-60647
1GEN 225D2177P003
6GEN 200D7355G076
6WR12X10974 GE Refrigerator Soft Touch Handle Insert
11GEN WR38X10239
12WR02X13425 GE Refrigerator Door Stop
14WR24X20455 GE Refrigerator Freezer Door Gasket
15WR02X10780 GE Refrigerator Cam Closure
26WR71X10633 GE Refrigerator Ice Guide
31WR17X11655 GE Refrigerator Grille Recess Black
36WR62X10055 GE Refrigerator Dispenser Door Solenoid Assembly
45WR2X8818 GE Refrigerator Retainer
55WR55X10899 GE Refrigerator Dispenser Lighting Board Assembly
58WR17X12784 GE Refrigerator Housing Shield Dispenser
62WR17X11653 GE Refrigerator Ice Door Flap Assembly
63WR02X10585 SPRING RECES
67WR17X10706 GE Refrigerator Door Crank Recess
69WR17X12120 GE Refrigerator Ice Dispenser Funnel
70WR17X12885 GE Refrigerator Paddle Assembly
72WR23X10783 GE Refrigerator Dispenser Micro Switch
74WR02X12256 GE Refrigerator Torsion Spring
80WR02X11330 GE Refrigerator 5/16 Union Water Line Connector
93GEN WR55X20468
122WR71X10256 GE Refrigerator Module Support
123WR71X10501 GE Refrigerator Fixed Shelf Module
125WR21X10110 GE Refrigerator Basket Wire TILTOUT
291WR01X10649 GE Refrigerator Screw 8-10 PL PNP 1/2 S
553GEN WR01X10314
854GEN WR23X10657
900GEN WR78X11965
903WR01X10234 GE Freezer Bottom Thimble Door (Black)
904WR01X10611 GE Screw
905WR01X10610 GE Refrigerator Screw 10-32 GX PNT20 1 S L
911WR01X10956 GE Door Thimble
1022GEN WR17X11281
1024GEN WR17X10953
1025GEN WR12X10542
1026GEN WR17X12221
1027GEN WR17X12213
