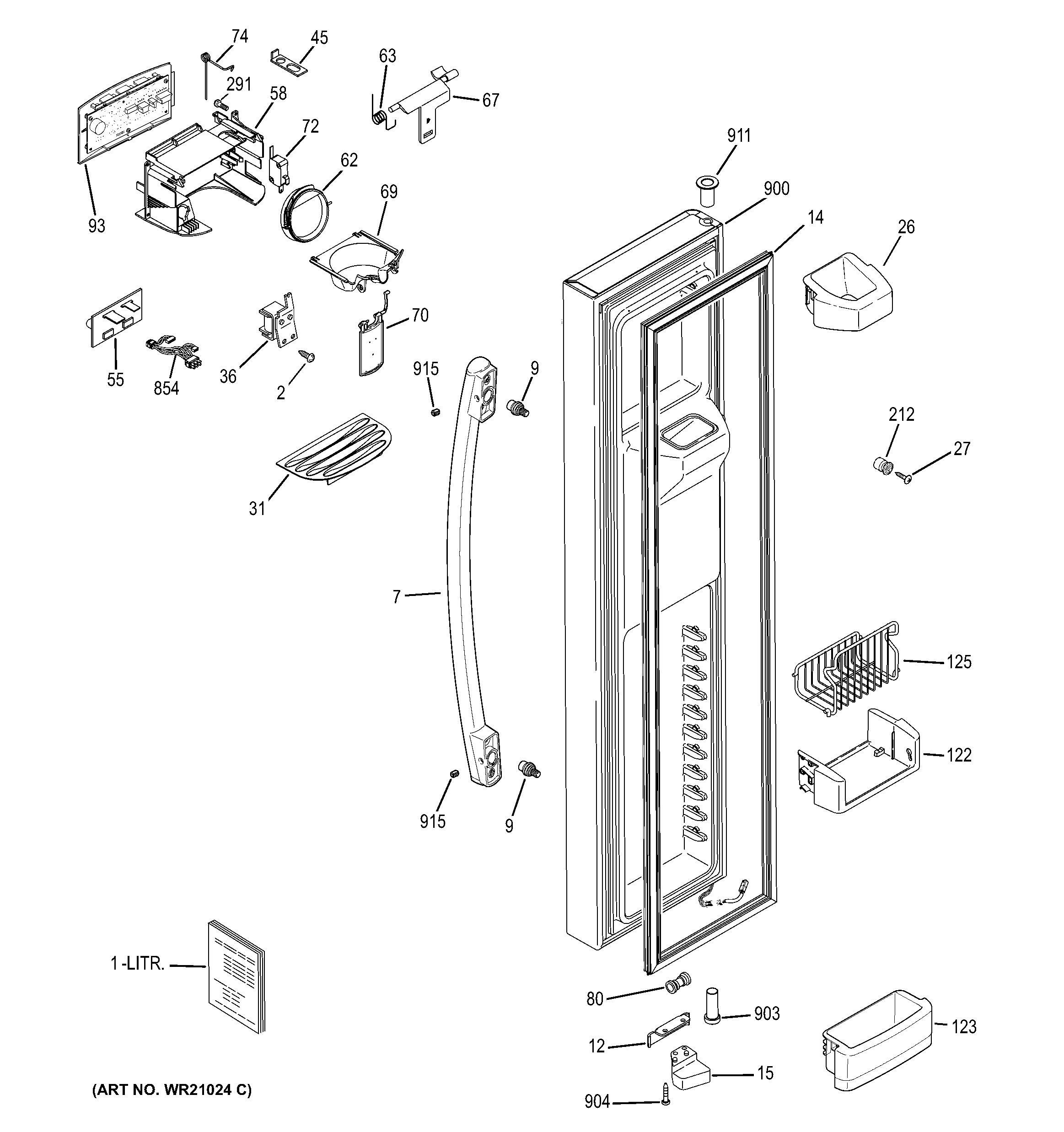

PZS23KSECFSS FREEZER DOOR

Products

Position	Product
1	GEN 31-51706-1-DH
1	GEN 49-60647
2	WR02X12257 GE Refrigerator Stainless Steel Screw 4-10 PL PNP 3/4
7	WR12X21070 GE Refrigerator Door Handle
9	WR01X11007 GE Refrigerator Fastener Door Handle
12	WR02X13425 GE Refrigerator Door Stop
14	WR24X20455 GE Refrigerator Freezer Door Gasket
15	WR02X10780 GE Refrigerator Cam Closure
26	WR71X10633 GE Refrigerator Ice Guide
27	WR01X10857 GE Scr 8-18 Ab Flp 7/8 S
31	WR17X12625 GE Refrigerator Recessed Grille
36	WR62X10055 GE Refrigerator Dispenser Door Solenoid Assembly
45	WR2X8818 GE Refrigerator Retainer
55	WR55X10899 GE Refrigerator Dispenser Lighting Board Assembly
58	WR17X12496 GE Refrigerator Housing Shield Dispenser
62	WR17X11653 GE Refrigerator Ice Door Flap Assembly
63	WR02X10585 SPRING RECES
67	WR17X10706 GE Refrigerator Door Crank Recess
69	WR17X12120 GE Refrigerator Ice Dispenser Funnel
70	GEN WR17X20448
72	WR23X10783 GE Refrigerator Dispenser Micro Switch
74	WR02X12256 GE Refrigerator Torsion Spring
80	WR02X11330 GE Refrigerator 5/16 Union Water Line Connector
93	WR55X20624 GE Refrigerator Dispenser Interface Assembly
122	WR71X10256 GE Refrigerator Module Support
123	WR71X10501 GE Refrigerator Fixed Shelf Module
125	WR21X10110 GE Refrigerator Basket Wire TILTOUT
212	WR02X10689 GE Refrigerator Base Grille Grommet
291	WR01X10649 GE Refrigerator Screw 8-10 PL PNP 1/2 S
854	WR23X10665 GE Dispenser Recess Harness
900	WR78X22283 GE Refrigerator Door Assembly
903	WR01X10234 GE Freezer Bottom Thimble Door (Black)
904	WR01X10611 GE Screw
911	WR01X10956 GE Door Thimble
915	WR01X11014 GE Refrigerator Set Screw
