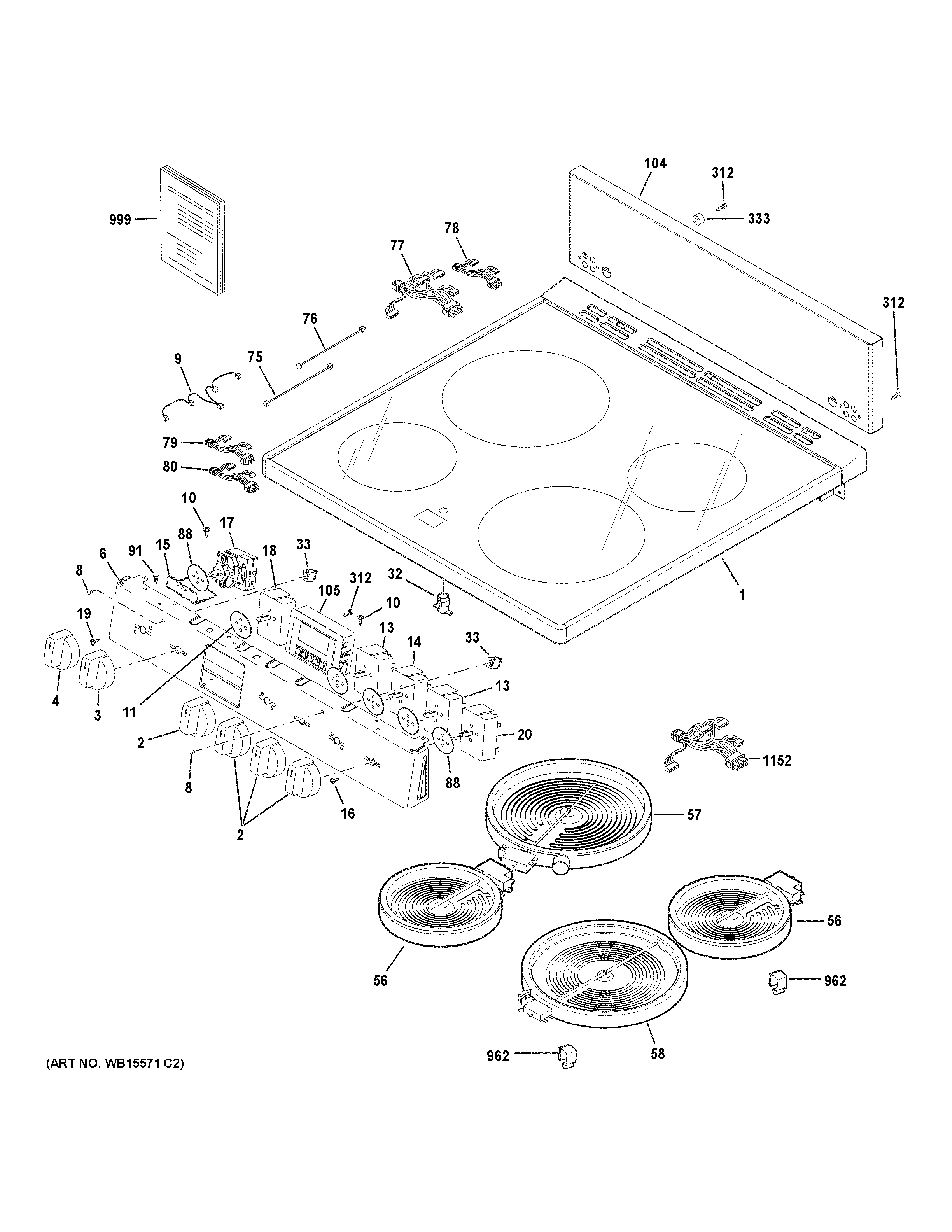

QAS740RM1SS CONTROL PANEL & COOKTOP

Products

PositionProduct
1WB62X31184 GE Range Top and Glass Assembly
2WB03X31071 GE Knob Assembly
3WB03X31070 GE Oven Mode Selector Knob
4WB03X31072 GE Knob Assembly
6WB36X31069 GE Manifold Panel
8WB25X29379 GE Oven Lens
9HARNESS PILOT
10WB01T10009 GE Screw 10-16 Shoulder Type A
11SEAL VALVE
13WB24X31917 GE Oven Infinite Switch
14WB24X31928 GE Infinite Switch
15COVER THERMOSTAT
16WB01X23501 GE Oven Screw 8-32 Tapping Flat Head
17WB24X31068 GE Electric Thermostat
18OVEN MODE SELECTOR SWITCH
19WB1K8 GE Oven Thermostat Screw
20WB24X31082 GE Oven Infinite Switch
32WB27T10668 GE Oven Light Indicator
33WB25K10010 GE Oven Light Indicator Pilot
56WB30X30921 GE Halogen Element and Pad Assembly
57WB30X30934 GE Element Haliant & Pad Assembly
58ELEMENT HALIANT & PAD ASM
75HARNESS GROUND
76WB18X30895 GE Ground Harness
77HARNESS MAIN
78HARNESS COOKTOP
79WB18X31073 GE Thermostat Harness
80WB18X31075 GE Harness Commutator
88SEAL VALVE
91WB1X1261 GE Oven Screw
104WB36X31079 GE Range Backguard
105WB24X31108 GE Oven Timer Clock and Overlay Assembly
312WB01K10091 GE Oven Screw
333WB01K10020 GE Oven Handle Spacer
962WB09X40389 GE Radiant Element Spring
999PM INSTALL INSTRUCTIONS
999PM QUICK GUIDE
999PM INSTALL INSTRUCTIONS
999PM MANUAL MINI & WD ASM
1152HARNESS INFINITE
