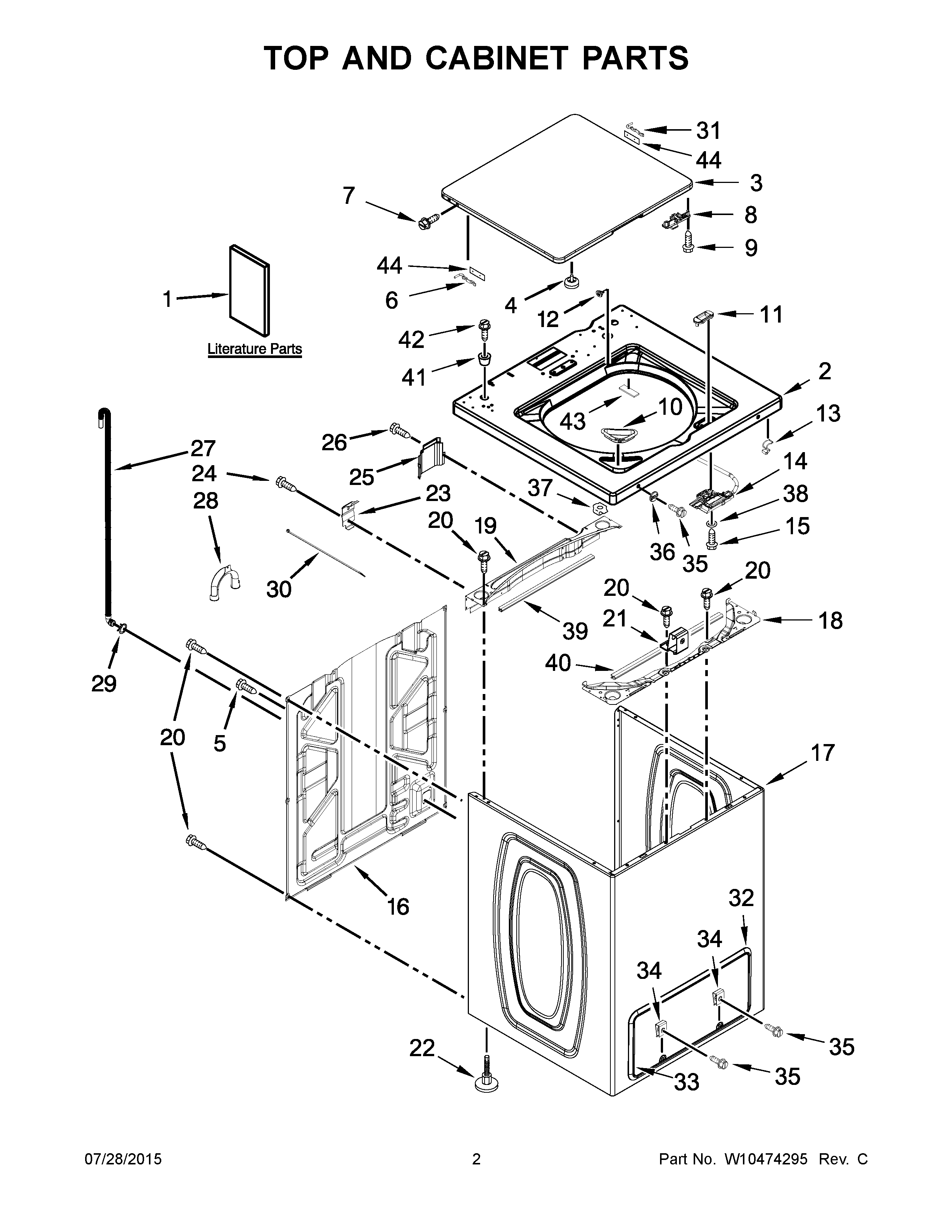

QCAE2733BQ0 02 – TOP AND CABINET PARTS

Products

Position	Product
1	INSTALLATION INSTRUCTIONS
1A	WIRING DIAGRAM
1B	TECH SHEET
2	W10461168 Whirlpool Top
3	W10839384 Whirlpool Lid
4	W11252488 Whirlpool Bumper
5	WP9740848 Whirlpool Dishwasher Screw
6	WP91770 Whirlpool Hinge
7	SCREW
8	WPW10240513 Whirlpool Strike
9	WPW10273971 Whirlpool Screw
10	W10515627 Whirlpool Dispenser
11	WPW10392041 Whirlpool Dishwasher Lid Lock Bezel
12	WP21258 Whirlpool Washer Lid Hinge Bearing
13	WP90016 Whirlpool Clip
14	LATCH
15	W11679611 Whirlpool Commercial Part Screw
16	W11486091 Whirlpool Rear Panel
17	CABINET (WHITE)
18	W11695476 Whirlpool Brace Support
19	W11712680 Whirlpool Commercial Part Brace
20	WP489069 Whirlpool Compactor Screw
21	W10461182 Whirlpool Lock
22	W10739673 Whirlpool Leveling Feet
23	W10461176 Whirlpool Hinge
24	WP489128 Whirlpool Refrigerator Screw
25	W10461180 Whirlpool Cover Assembly
26	W10846509 Whirlpool Screw
27	W11244231 Whirlpool Hose
28	WPW10280024 Whirlpool Retainer
29	WP356138 Whirlpool Hose Clamp
30	WPW10339879 Whirlpool Wire Tie
31	WP54583 Whirlpool Hinge
32	FRAME, FRONT ACCESS
33	DOOR, FRONT ACCESS
34	WP3400915 Whirlpool Nut
35	W11170603 Whirlpool Screw
36	W10461181 Whirlpool Bushing
37	WP90406 Whirlpool Nut
38	W10318627 Whirlpool O-Ring
39	W10521454 Whirlpool Dishwasher Protector
40	W10521453 Whirlpool Dishwasher Protector
41	WPL 356674
42	3353994 Whirlpool Screw Assembly
43	W11312189 Whirlpool Pad Assembly
44	WP21097 Whirlpool Pad
