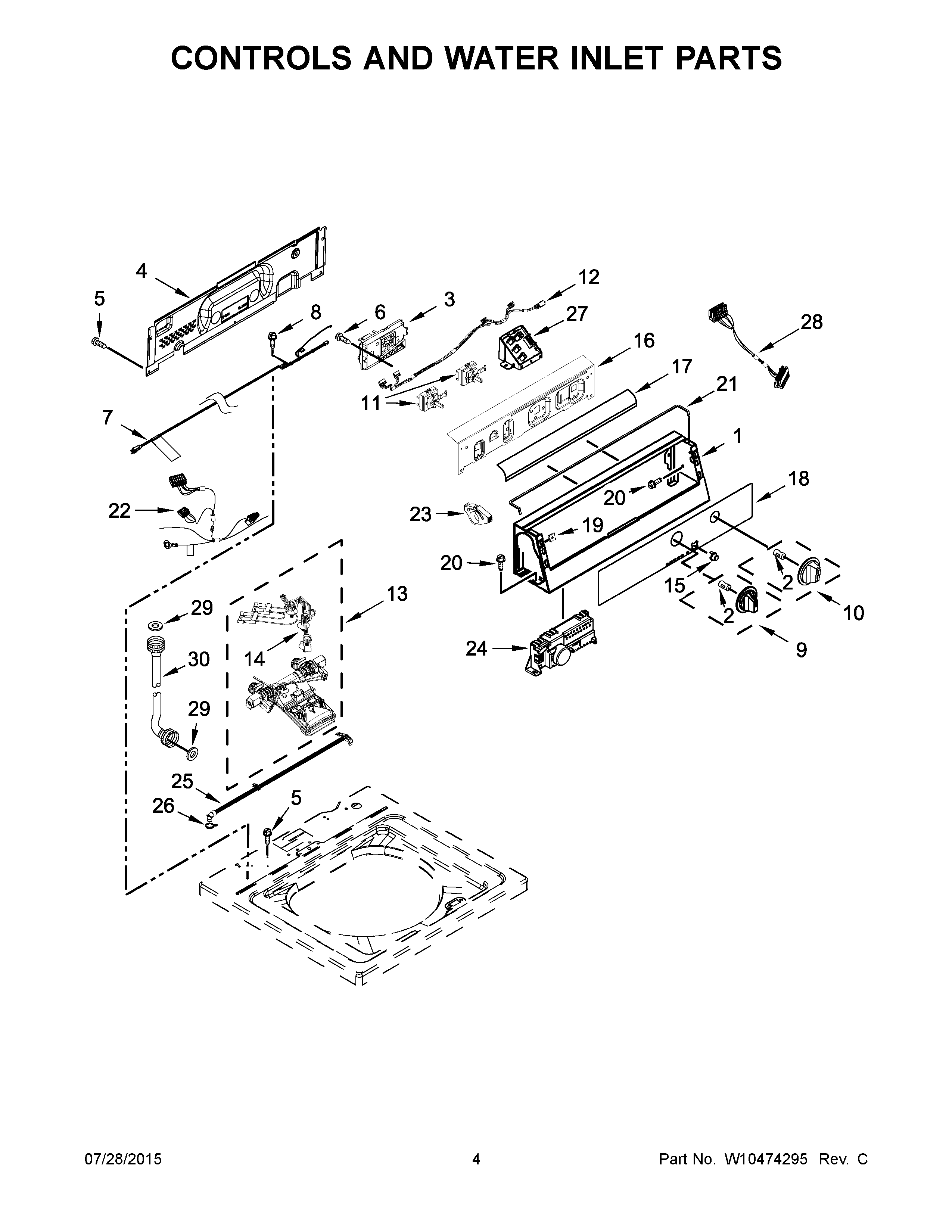

QCAE2733BQ0 03 – CONTROLS AND WATER INLET PARTS

Products

Position	Product
1	W10461094 Whirlpool Control Panel
2	Clip, Knob
3	W10860464 Whirlpool Electric Control Board
4	WPW10461159 Whirlpool Rear Panel
5	WP489069 Whirlpool Compactor Screw
6	WP90767 Whirlpool Screw
7	W10482500 Whirlpool Power Cord
8	W10846509 Whirlpool Screw
9	W10461101 Whirlpool Control Knob
10	W10461100 Whirlpool Knob
11	WPW10285512 Whirlpool Cycle Switch
12	W10291184 Whirlpool Wire Harness
13	WPW10486031 Whirlpool Valve
14	W10472990 Whirlpool Wire Harness
15	WPW10461117 Whirlpool Push Button
16	W10461067 Whirlpool Bracket
17	W10133515 Whirlpool Shield
18	W10506032 Whirlpool Overlay Assembly
19	WPW10131123 Whirlpool Nut
20	WP3390631 Whirlpool Screw
21	WPW10157932 Whirlpool Seal Foam
22	W10480947 Whirlpool Wire Harness
23	WPW10663966 Whirlpool Washer Water Level Switch
24	WPW10482833 Whirlpool Electronic Control Board
25	WPW10461189 Whirlpool Hose
26	WP596669 Whirlpool Hose Clamp
27	INTERFACE
28	W11296297 Whirlpool Wire Harness
29	WP16123 Whirlpool Washer
30A	HOSE, WATER INLET (COLD)
30	HOSE, WATER INLET (HOT)
