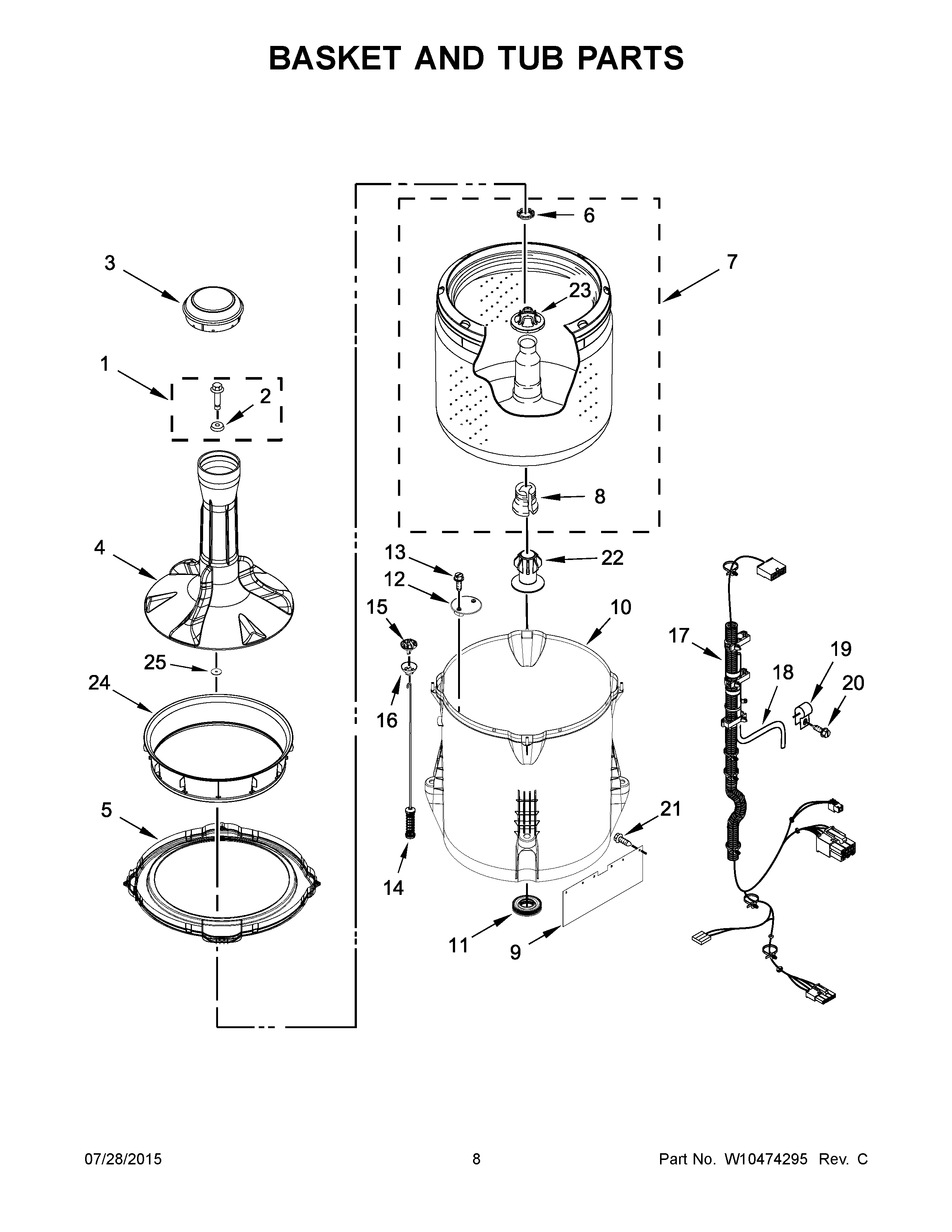

QCAE2733BQ0 05 – BASKET AND TUB PARTS

QCAE2733BQ0 05 – BASKET AND TUB PARTS

Written by

in

QCAE2733BQ0 05 – BASKET AND TUB PARTS

Products

PositionProduct
1W10772621 Whirlpool Washplate Screw
2WP3949550 Whirlpool Gasket Assembly
3CAP, AGITATOR
4W10772620 Whirlpool Washplate
5WPW10461196 Whirlpool Tub Ring
6WP21366 Whirlpool Spanner Nut
7W10738339 Whirlpool Basket Assembly
8W11084139 Whirlpool Brush Block
9W10339098 Whirlpool Shield
10W10371566 Whirlpool Outer Tub
11W10579816 Whirlpool Tub Seal
12WPW10215093 Whirlpool Filter
13WP8533928 Whirlpool Refrigerator Screw
15W10780046 Whirlpool Suspension Rod Kit
16W10440729 Whirlpool Suspension
17W10861643 Whirlpool Wire Harness
18WP353244 Whirlpool Hose
19W10005430 Whirlpool Clamp
20WPW10109200 Whirlpool Screw
21W10429200 Whirlpool Retainer
22W11084129 Whirlpool Spacer
23W10461124 Whirlpool Ring
24W11222084 Whirlpool Adapter
25W10832827 Whirlpool Washer
