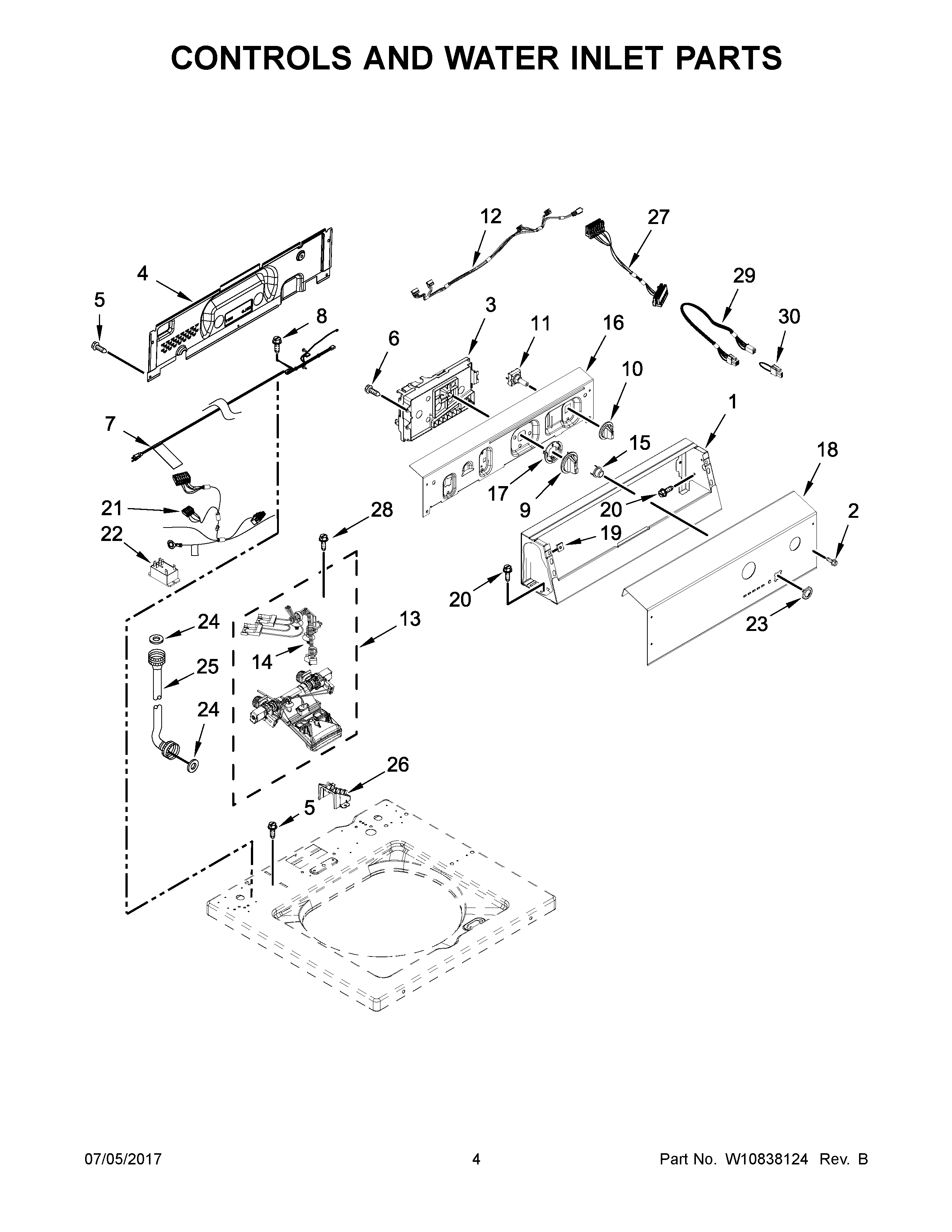

QCAE2735FQ0 03 – CONTROLS AND WATER INLET PARTS

QCAE2735FQ0 03 – CONTROLS AND WATER INLET PARTS

Written by

in

QCAE2735FQ0 03 – CONTROLS AND WATER INLET PARTS

Products

PositionProduct
1W10461094 Whirlpool Control Panel
2WPW10131119 Whirlpool Screw
3W11188527 Whirlpool Washer Electronic Control Board
4WPW10461159 Whirlpool Rear Panel
5W11685943 Whirlpool Screw
6WP90767 Whirlpool Screw
7W11676810 Whirlpool Power Cord
8W10846509 Whirlpool Screw
9W10461101 Whirlpool Control Knob
10W10461100 Whirlpool Knob
11WPW10285518 Whirlpool Cycle Switch
12W10291184 Whirlpool Wire Harness
13VALVE-WASHER INLET
14W10843398 Whirlpool Wire Harness
15WPW10461117 Whirlpool Push Button
16W10461067 Whirlpool Bracket
17W10828902 Whirlpool Insert
18FASCIA
19WPW10131123 Whirlpool Nut
20WP3390631 Whirlpool Screw
21W11736785 Whirlpool Commercial Wire Harness
22W11384790 Whirlpool Relay
23W10510149 Whirlpool Bezel
24WP16123 Whirlpool Washer
25W11085908 Whirlpool Fill Hose
26INTERFACE
27W11296297 Whirlpool Wire Harness
28WPW10213953 Whirlpool Screw
29W10539192 Whirlpool Wire Harness
30W11243585 Whirlpool Wire Harness
