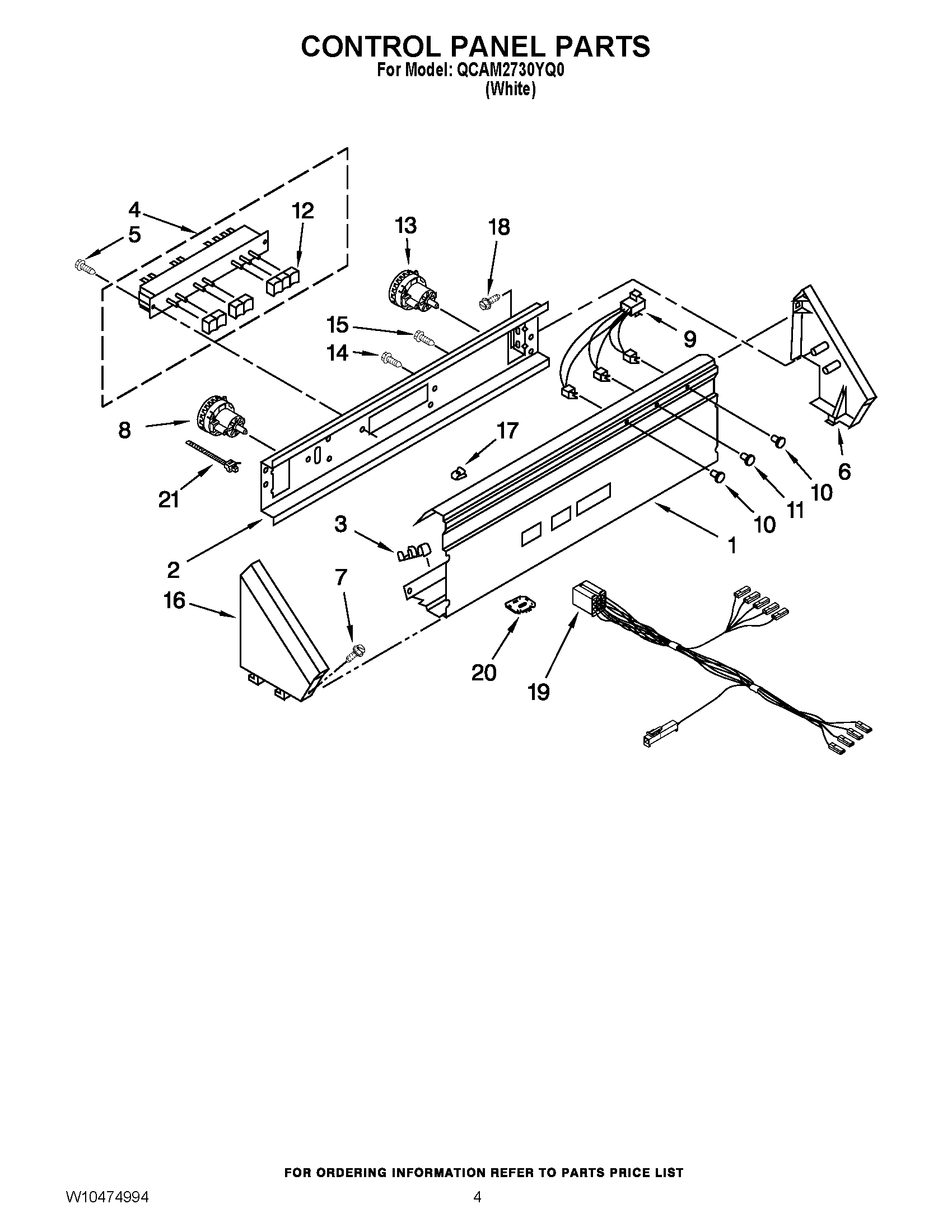

QCAM2730YQ0 02 – CONTROL PANEL PARTS

Products

Position	Product
1	PANEL, CONSOLE
2	Bracket, Control
3	W10113937 Whirlpool Clamp
4	WPW10330140 Whirlpool Push Button Switch
5	WPW10139210 Whirlpool Screw
6	End Cap (R.H.)
7	WP8281182 Whirlpool Screw Assembly
8	WPW10414164 Whirlpool Washer Water Level Switch
10	WP3348109 Whirlpool Light Lens
11	WP3348110 Whirlpool Light Lens
12	SWITCH-PB
13	WPW10414162 Whirlpool Washer Water Level Switch
14	3400073 Whirlpool Screw
15	WP90767 Whirlpool Screw
16	W11686050 Whirlpool Drive Motor
17	WP689559 Whirlpool Nut
18	WPW10109200 Whirlpool Screw
19	Harness, Wiring
20	Control, Automatic Temp. (ATC)
21	CABLE TIE
