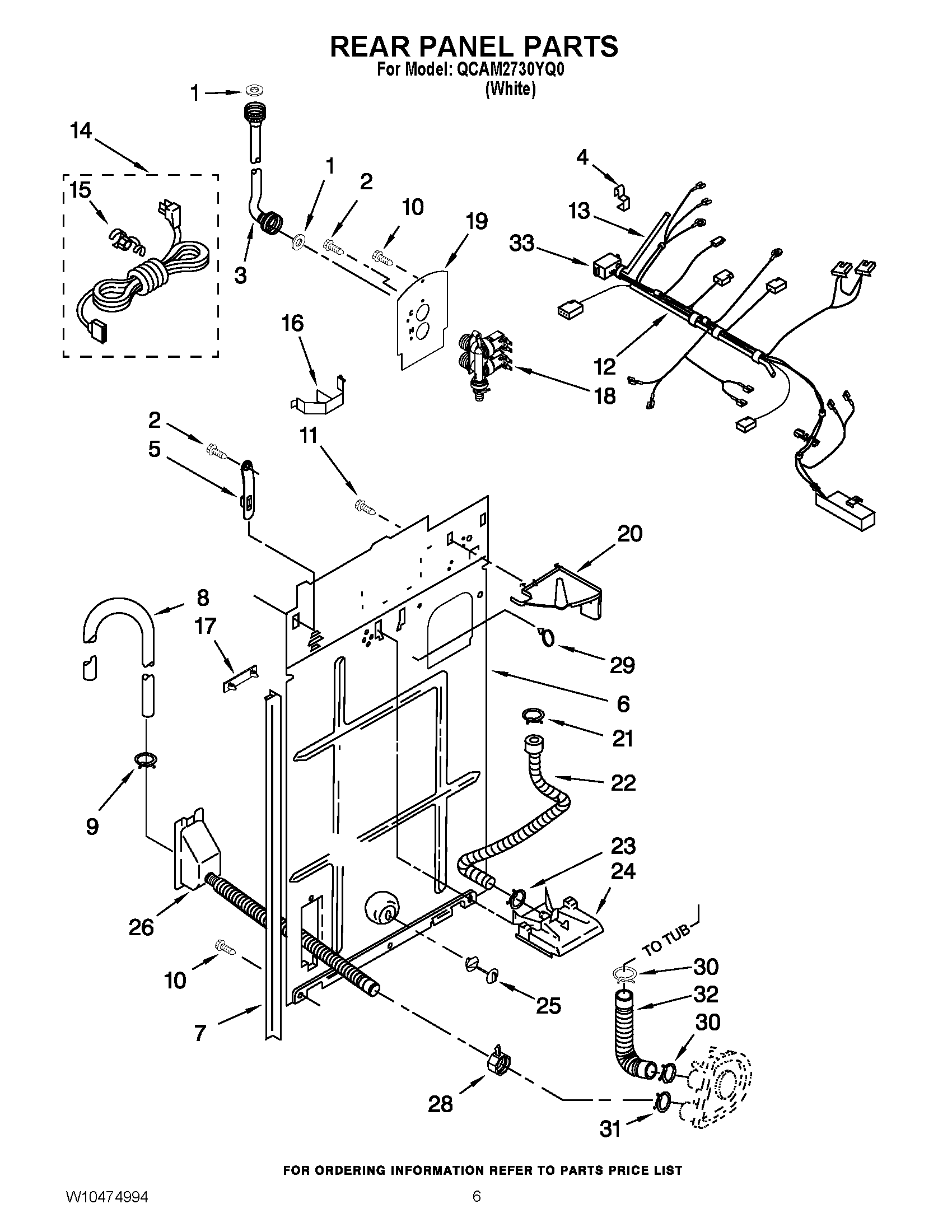

QCAM2730YQ0 04 – REAR PANEL PARTS

Products

Position	Product
NI	Miscellaneous Parts Bag
1	WP16123 Whirlpool Washer
2	WP9740848 Whirlpool Dishwasher Screw
3	WP3949380 Whirlpool Fill Hose
3	WP3949381 Whirlpool Fill Hose
4	Clip, Harness
5	WP8568314 Whirlpool Strap
6	285929 Whirlpool Rear Panel
7	WP62747 Whirlpool Pad
8	WP96743 Whirlpool Hose
9	WP285655 Whirlpool Hose Clamp
10	WP3390631 Whirlpool Screw
11	WP3351614 Whirlpool Screw
13	WP353244 Whirlpool Hose
14	285928 Whirlpool Power Cord Assembly
15	Strain Relief, Power Cord
16	Clip, Harness & Pressure Hose
17	WP389379 Whirlpool Retainer
18	WP3979346 Whirlpool Water Inlet Valve
19	285930 Whirlpool Plate
20	WPL 8539874
21	WP596669 Whirlpool Hose Clamp
22	HOSE
24	WP3360977 Whirlpool Washer Tub Fill Nozzle
25	WP8519200 Whirlpool Support Assembly
26	WPW10358149 Whirlpool Hose
28	Clamp, Hose
29	8559320 Whirlpool Clip
30	WP616099 Whirlpool Clamp
31	WP356138 Whirlpool Hose Clamp
32	285871 Whirlpool Hose and Clamp
33	Harness, Wiring (Includes Items 12 & 13) (For Detail See Pages 12 & 13)
