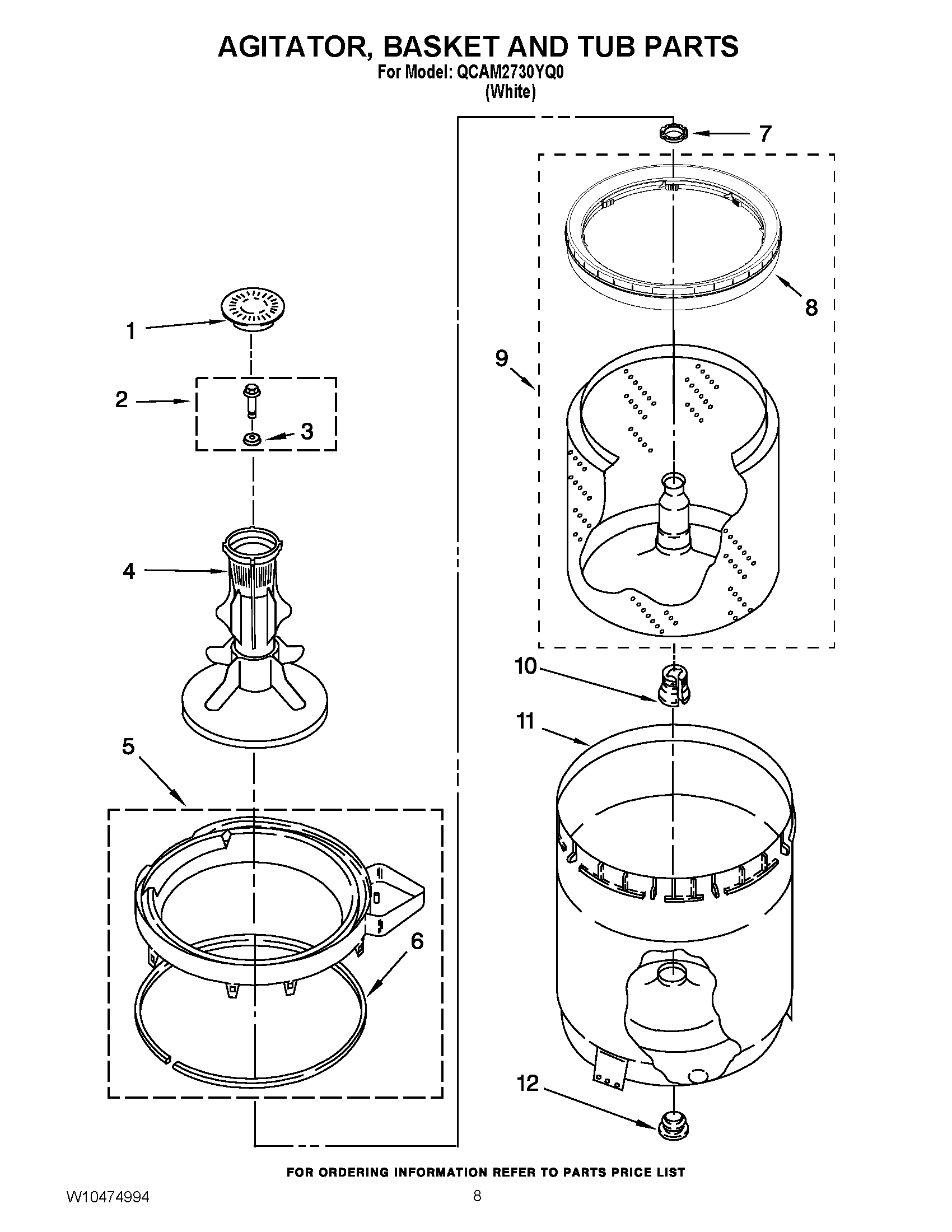

QCAM2730YQ0 05 – AGITATOR, BASKET AND TUB PARTS

QCAM2730YQ0 05 – AGITATOR, BASKET AND TUB PARTS

Written by

in

QCAM2730YQ0 05 – AGITATOR, BASKET AND TUB PARTS

Products

PositionProduct
1WP3352483 Whirlpool Cap
2W10772621 Whirlpool Washplate Screw
3WP3949550 Whirlpool Gasket Assembly
4AGITATOR
5W10880720 Whirlpool Tub Ring
6WP3976308 Whirlpool Tub Seal
7WP21366 Whirlpool Spanner Nut
8WP387240 Whirlpool Balance Ring
9W10389329 Whirlpool Microwave Basket
10WP389140 Whirlpool Drive Block or Bell
1163849 Whirlpool Outer Tub Primary Assembly
12W10814296 Whirlpool Washer Center Post Seal Gasket
