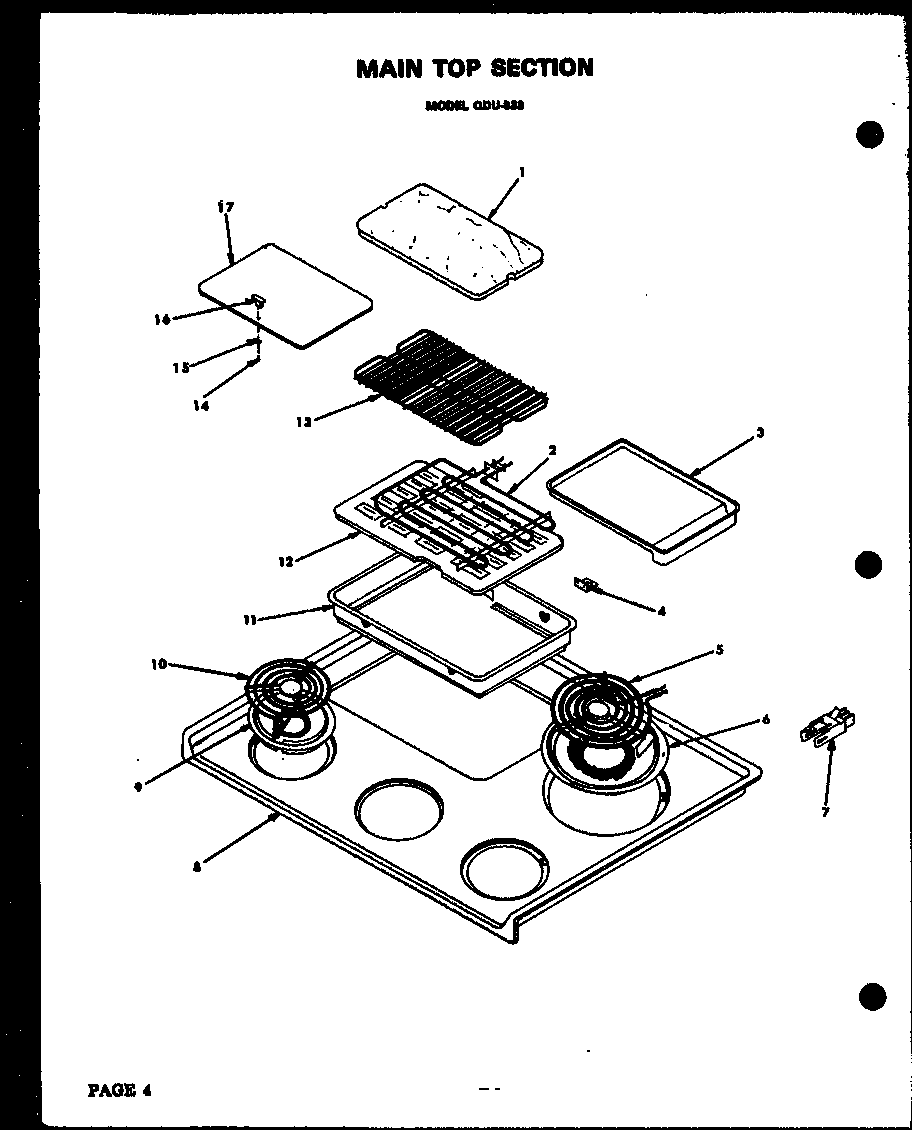

QDU-838 05 – MAIN TOP SECTION
Written by
in
QDU-838 05 – MAIN TOP SECTION
Products
Position
Product
NI
MAY 44-01-630
1
SEE NOTE GROUND WIRE, GREEN
2
MAY 74-06-169
3
MAY 80-01-005
4
MAY 44-01-559
5
MAY 74-06-138
6
MAY 74-06-182
6
MAY 36-01-035
7
MAY 74-06-132
7
MAY 71-02-058
8
MAY 0040053
9
MAY 74-06-183
9
MAY 0045105
10
MAY 74-06-140
11
MAY 0040593
12
MAY 0040594
13
MAY 78-01-091
14
MAY 71-01-046
15
MAY 71-09-011
16
MAY 77-01-037
17
MAY 0040597
←
