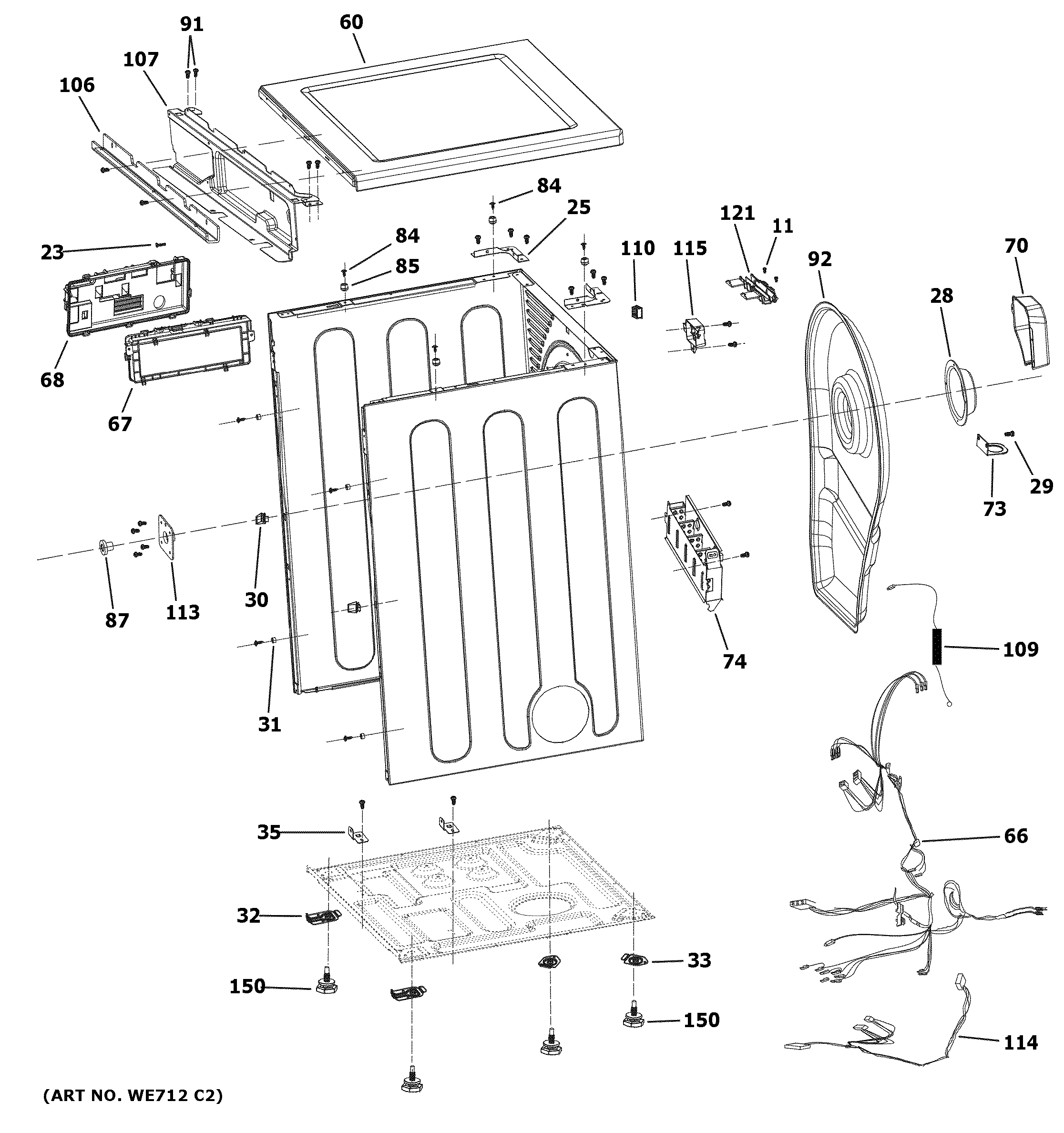

QFD15ESSN0WW CABINET & TOP PANEL

QFD15ESSN0WW CABINET & TOP PANEL

Written by

in

QFD15ESSN0WW CABINET & TOP PANEL

Products

PositionProduct
11GUIDE POST SCREW
23WH02X28411 GE Control Panel Position Screw
25WE02X28742 GE Lower Reinforcing Bracket
28WE13X28712 GE Bearing Cover
29GROUND SCREW
30WE02X28701 GE Front Panel Clip
31LOCATOR PIN
32LEVELING LEG
33FRONT LEVELING LEG BRACKET
35REAR LEVELING LEG BRACKET
60WE13X28732 GE Top Panel
66WE08X28730 GE Main Harness with 3 Prong Outlet
67WE04X27515 GE Control Board
68WE01X27516 GE Control Board Cover
70WE01X26404 GE Terminal Block Cover
73WE13X28714 GE Power Cord Conduit Bracket
74WE11X28897 GE Dryer Heater Assembly
84WH02X26265 GE Top Panel Guide Pin Screw
85WH01X26264 GE Top Panel Guide Pin
87REAR BEARING
91WH02X26236 GE Screw Assembly
92WE13X28717 GE Back Panel Cover
106WATER CHANNEL
107CONTROL PANEL BRACKET
109WE01X27782 GE Dryer Fuse
110RJ45 CONNECTOR
113WE13X28718 GE Rear Support Drum Bearing
114WH19X28477 GE RJ45 Harness
115OUTLET COVER
121WE08X28521 GE Fuse Harness Holder
150WH46X28359 GE Washer Leveling Leg
