QFD15ESSN1WW FRONT PANEL & DOOR

QFD15ESSN1WW FRONT PANEL & DOOR

Written by

in

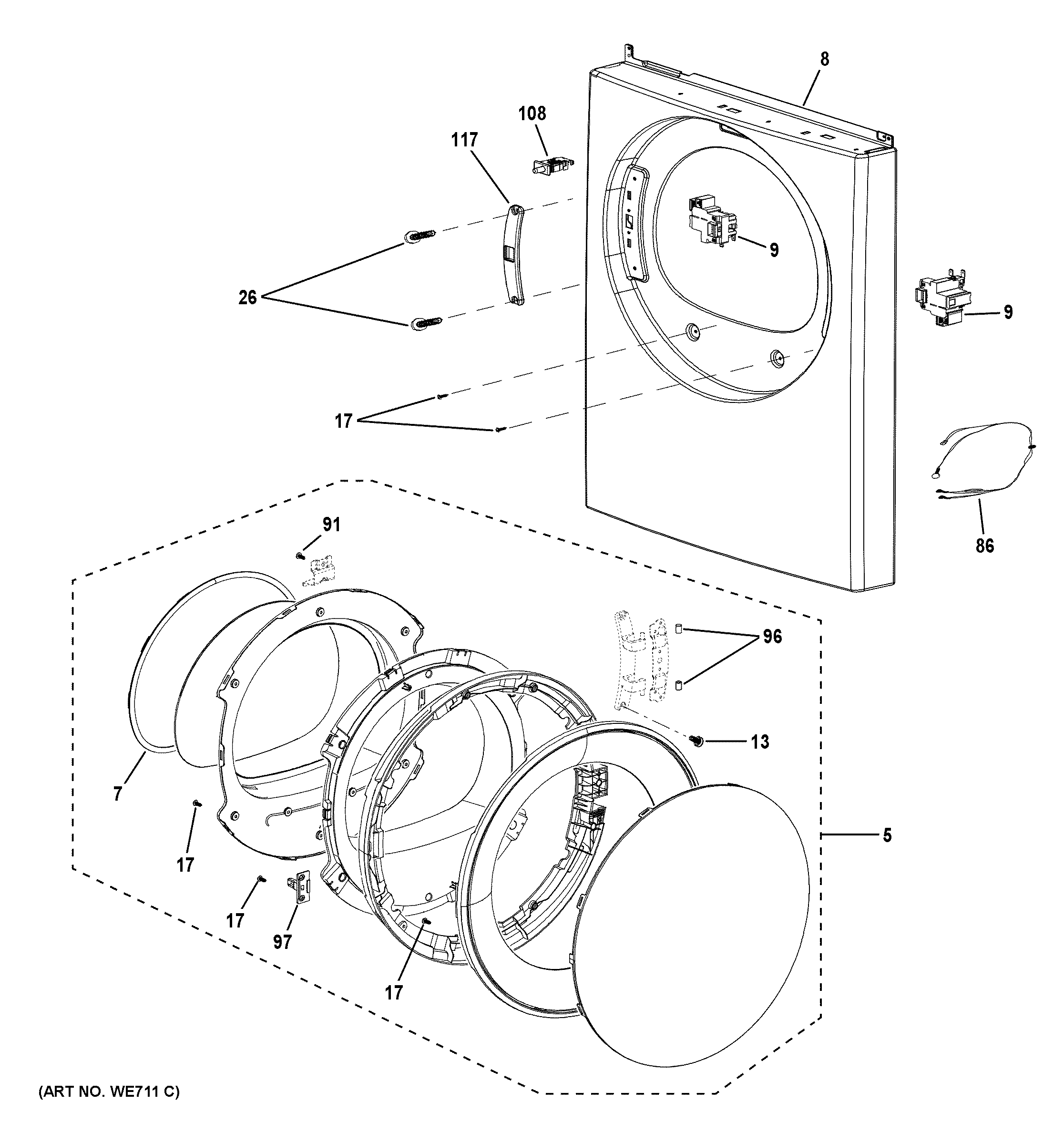

QFD15ESSN1WW FRONT PANEL & DOOR

Products

PositionProduct
5DRYER DOOR
7WE05X28709 GE Door Gasket
8WE13X28736 GE Front Panel
9WE01X26341 GE Door Switch
13WE02X27505 GE Hinge Screw
17WH02X26247 GE Housing Screw ST4 12
26WH02X26271 GE Door Hinge Screws
86WE01X26415 GE Humidity Sensor and Harness
91WH02X26236 GE Screw Assembly
96WE10X26837 GE Dryer Hinge Cover
97WE01X26345 GE Door Strike
108WE01X29445 GE Switch Door
117WE10X28517 GE Hinge Hole Cover
