QFT15ESSN0WW FRONT PANEL

QFT15ESSN0WW FRONT PANEL

Written by

in

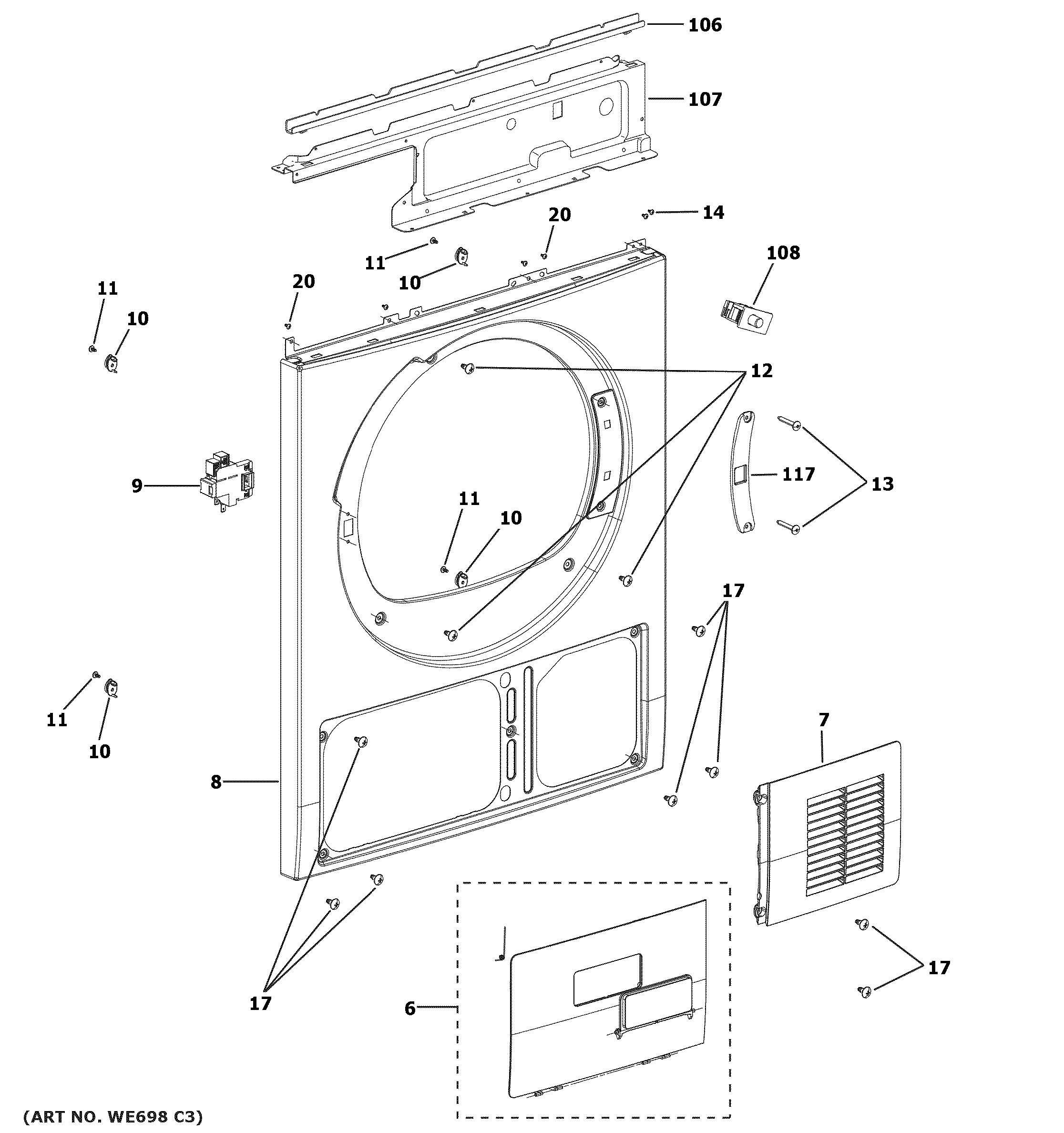

QFT15ESSN0WW FRONT PANEL

Products

PositionProduct
6CONDENSER ACCESS PANEL DOOR
7WE20X27503 GE Vent Panel – Condenser Inlet
8WE13X31897 GE Front Panel
9WE01X26341 GE Door Switch
10GUIDE POST
11GUIDE POST SCREW
12WE02X26338 GE Front Panel Screws
13WE02X27505 GE Hinge Screw
14WH02X26267 GE Screw
17WH02X26247 GE Housing Screw ST4 12
20TAPPING SCREW
106WATER CHANNEL
107CONTROL PANEL MOUNTING BRACKET
108WE01X29445 GE Switch Door
117WE10X28517 GE Hinge Hole Cover
