QFW150SSN1WW CONTROLS & DISPENSER

QFW150SSN1WW CONTROLS & DISPENSER

Written by

in

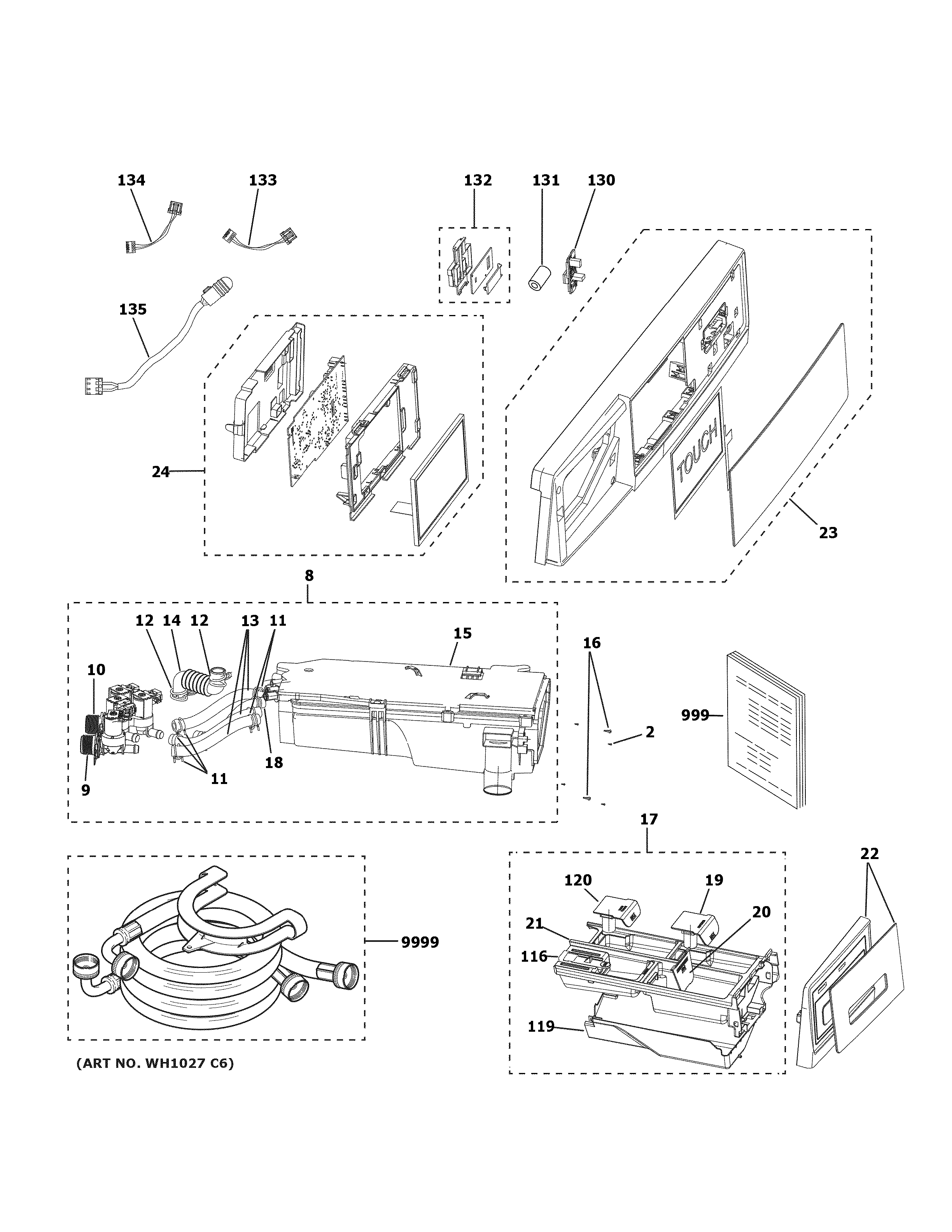

QFW150SSN1WW CONTROLS & DISPENSER

Products

PositionProduct
2WH02X26236 GE Screw Assembly
8DISPENSER HOUSING & WATER VALVE
9WH13X28374 GE Hot Water Valve
10WH13X28339 GE Cold Water Valve
11WH01X26244 GE Clamp Tube
12WH01X26245 GE Tub Vent Hose Clamp
13WH01X28397 GE Water Inlet Hose
14WH41X28340 GE Tub Vent Hose
15DISPENSER HOUSING
16WH02X26514 GE Screw ST4X14
17WH47X28597 GE Dispenser Drawer Handle
18WH01X28398 GE Water Inlet Hose
19WH43X28343 GE Softener Siphon Cap
20WH15X28419 GE Dispense Liquid to Powder Flap
21WH47X28342 GE Dispenser Drawer
22DISPENSER DRAWER HANDLE
23CONTROL PANEL
24WH22X29232 GE Washing Machine User Interface Board & Display
116WH47X28413 GE Drawer Plug
119WH47X28399 GE Dispenser Gutter Guide
120WH47X28400 GE Cap Bleach Siphon
130WB27X33353 GE Wi-Fi Module Kit
131EMI CHOKE
132POWER BUTTON
133WH19X28477 GE RJ45 Harness
134POWER BUTTON JUMPER HARNESS
135LED LIGHT
999PM MINI MANUAL AND WIRING
999PM OWNERS AND INSTALL
9999WH41X33679 GE Inlet Hoses
