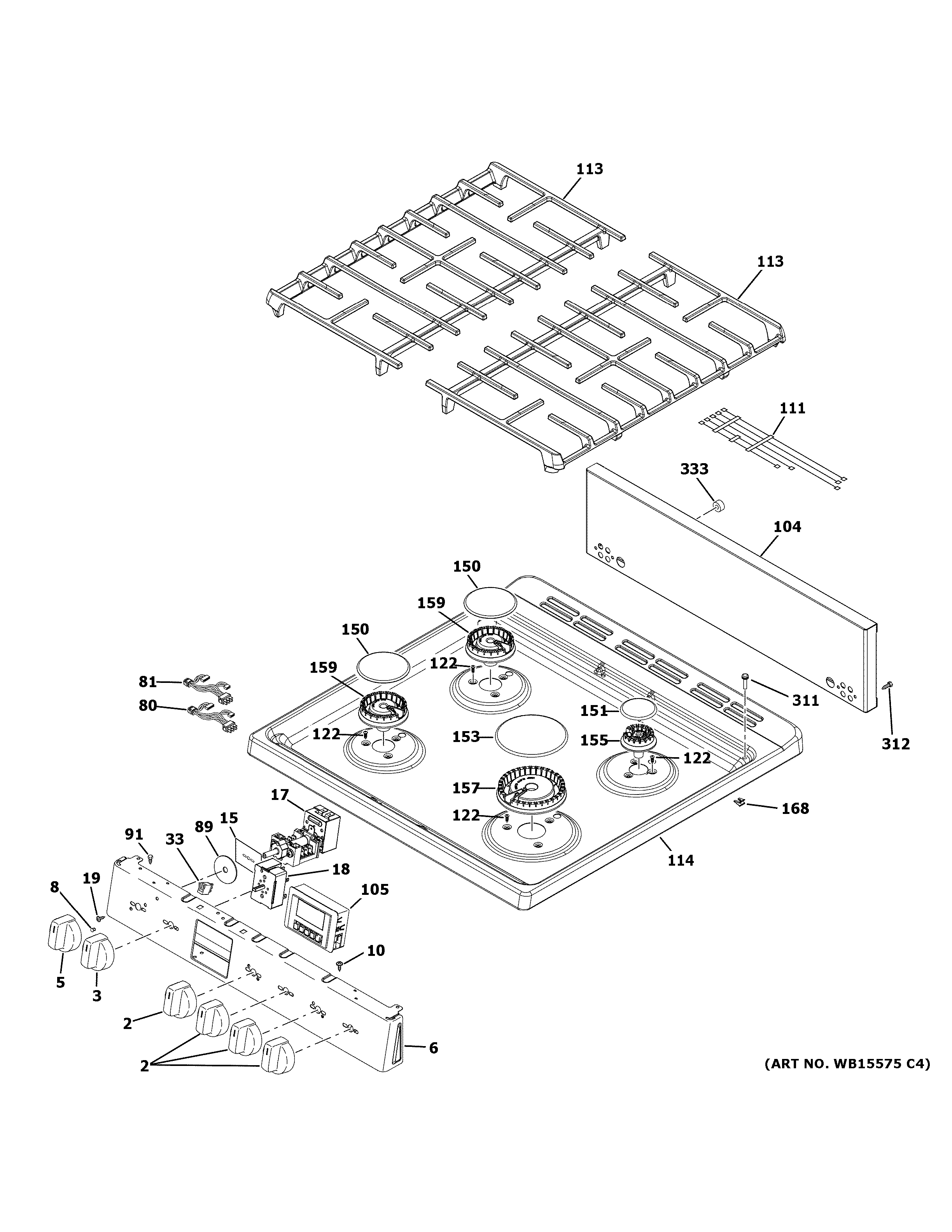

QGAS740RM1SS CONTROL PANEL & COOKTOP

Products

Position	Product
2	WB03X31122 GE Knob Assembly
3	WB03X31070 GE Oven Mode Selector Knob
5	WB03X31121 GE Knob Assembly Thermostat
6	MANIFOLD PANEL
8	WB25X29379 GE Oven Lens
10	WB01T10009 GE Screw 10-16 Shoulder Type A
15	COVER THERMOSTAT
17	WB24X31123 GE Oven Electric Thermostat
18	OVEN MODE SELECTOR SWITCH
19	WB1K8 GE Oven Thermostat Screw
33	WB25K10010 GE Oven Light Indicator Pilot
80	WB18X31075 GE Harness Commutator
81	WB18X31073 GE Thermostat Harness
89	SEAL VALVE
91	WB1X1261 GE Oven Screw
104	WB36X31079 GE Range Backguard
105	WB24X31108 GE Oven Timer Clock and Overlay Assembly
111	ELECTRODE TOP & HARNESS HV
113	WB31X30957 GE Oven Top Grate
114	WB62X31120 GE Range Top Insulation Assembly
122	WB01X24735 GE Oven CKT Screw
150	WB29K10023 GE Oven Burner Cap Assembly
151	WB16X28654 GE Oven Burner Cap Cover
153	CAP BURNER ASM (15K)
155	WB16X24721 GE Oven Range Small Cooktop Burner V2
157	WB16X24722 GE Oven Gas Range XL Surface Burner
159	WB16X24724 GE Oven Medium Burner
168	WB02X24976 GE Oven Igniter Clip V2
311	BUMPER
312	WB01K10091 GE Oven Screw
333	WB01K10020 GE Oven Handle Spacer
