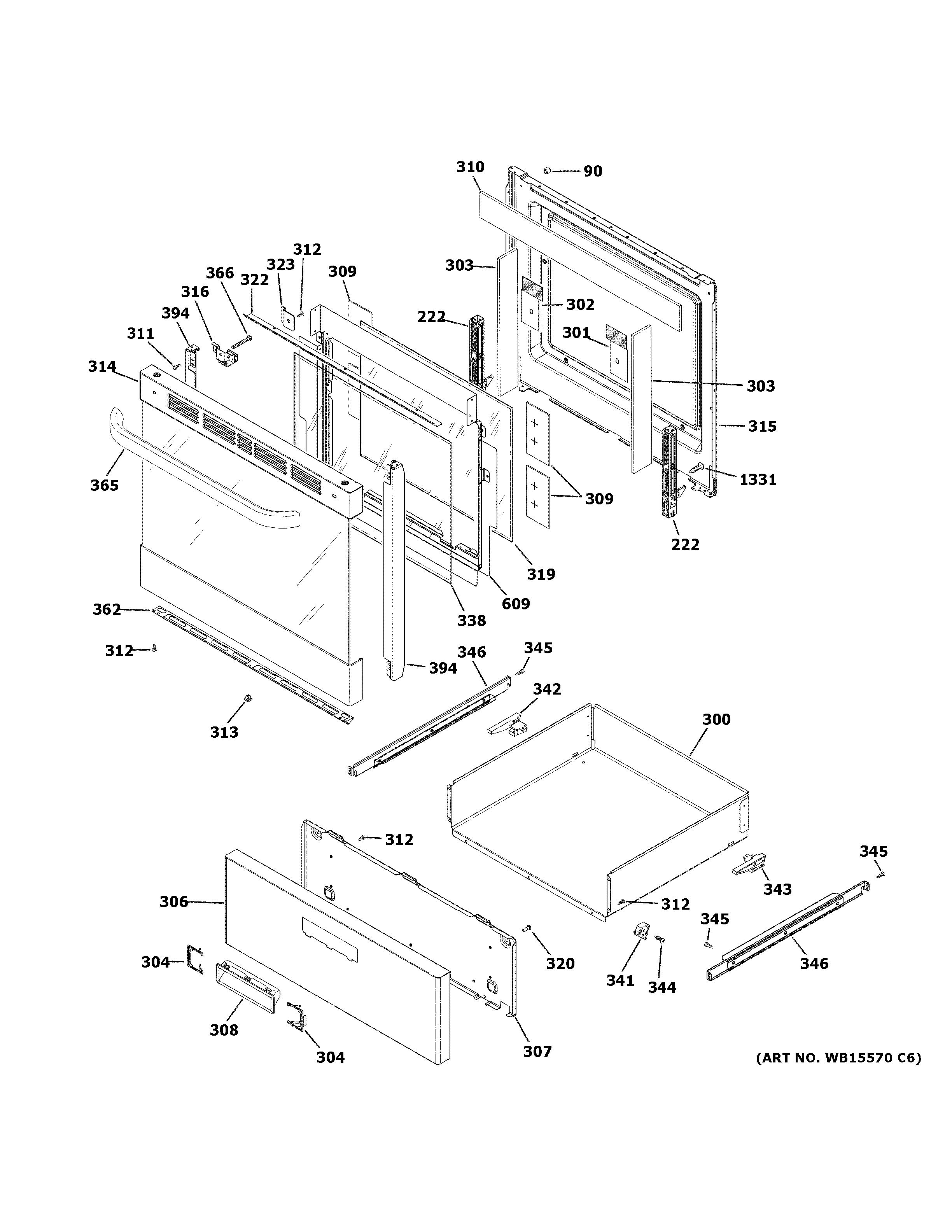

QGAS740RM1SS DOOR & DRAWER PARTS

QGAS740RM1SS DOOR & DRAWER PARTS

Written by

in

QGAS740RM1SS DOOR & DRAWER PARTS

Products

PositionProduct
90WB02X28737 GE Oven Front Frame Bumper
222WB10X30929 GE Door Hinge
300WB63X30936 GE Drawer Body
301INSULATION VENT TRIM
302INSULATION VENT TRIM
303BACKGUARD FOIL
304WB01X26891 GE Range Broil Element Clip
306WB56X30920 GE Drawer Panel
307WB56X30925 GE Drawer Liner
308WB15X26672 GE Oven Broil Handle
309WB35X30903 GE Door Insulation
310WB35X32513 GE Door Insulation
311BUMPER
312WB01K10091 GE Oven Screw
313GEN WB02K0008
314WB56X31077 GE Oven Glass Door Assembly
315WB56X30926 GE Door Liner
316BRACKET BACKER
319GLASS LINER DOOR
320WB2K15 GE Oven Grate Bumper
322DEFLECTOR UPPER DOOR
323BRACKET GLASS
338WB56X45641 GE Door Glass Liner
341WB02K10186 GE Range Drawer Support
342WB02K10062 GE Oven Drawer Glide
343WB02K10061 GE Oven Drawer Glide
344WB01X30915 GE Screw
345WB1K5062 GE Oven Screw
346WB37X30908 GE Drawer Rail and Bracket Guide
362WB56X31921 GE Barrier Door
365WB15X31076 GE Door Handle
366SCREW 10-32 HSW 1/2
394TRIM POST DOOR
609GUARD INSULATION
1331SCREW
