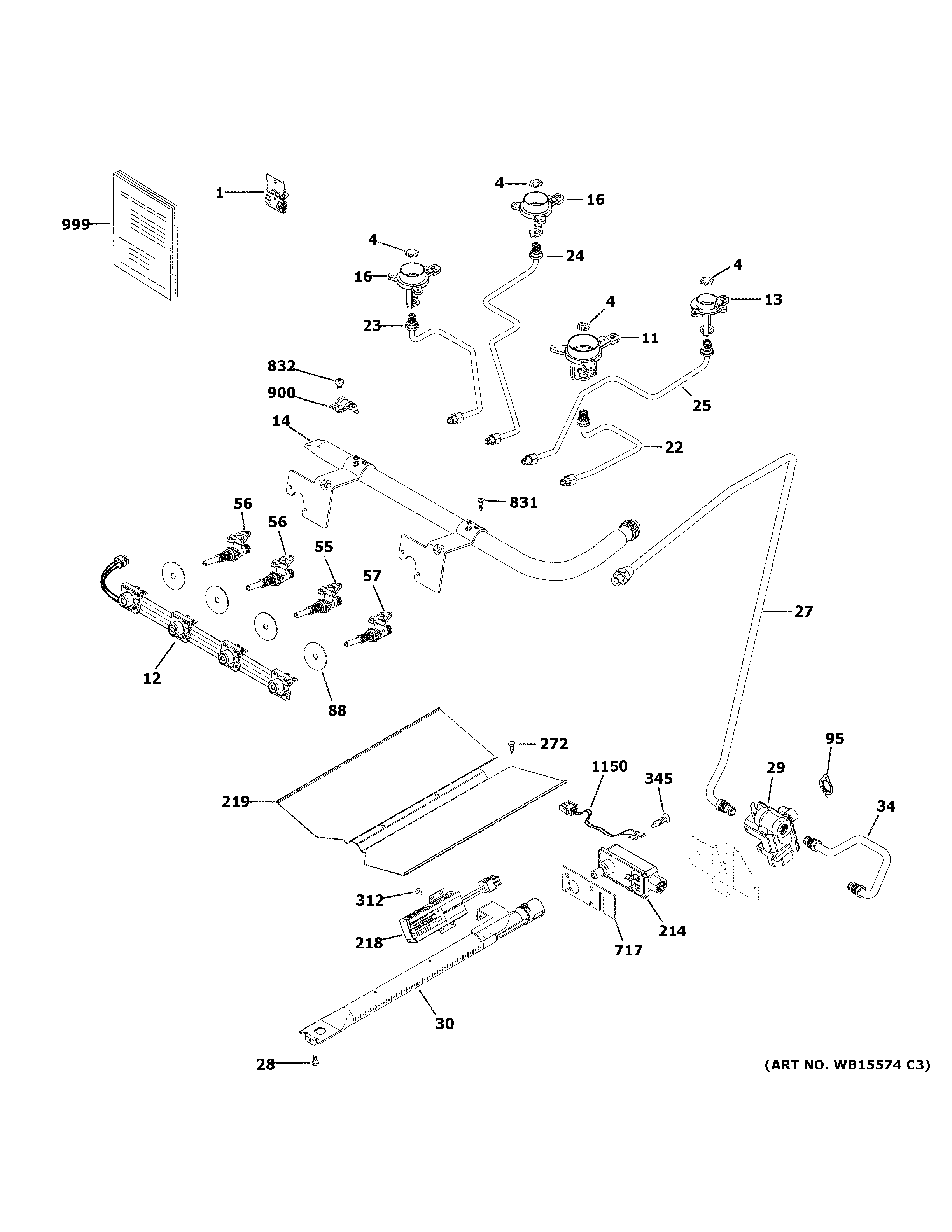

QGAS740RM1SS GAS & BURNER PARTS

QGAS740RM1SS GAS & BURNER PARTS

Written by

in

QGAS740RM1SS GAS & BURNER PARTS

Products

PositionProduct
1WB28X29254 GE Range Natural Gas High Altitude Kit
1WB28X30958 GE LP Conversion Kit Assembly
1WB28X29255 GE Range LP High Altitude Kit
4WB01K10037 GE Oven Economic Nut
11WB02X24725 GE Oven Inlet XLV2
12WB18X30974 GE Harness Switches
13WB02X24728 GE Range Small Injector
14MANIFOLD PIPE ASM
16WB02X24727 GE Oven Right Front Burner Jet with Electrode
22WB28X30967 GE Orifice Holder Right Front
23WB28X30969 GE Left Orifice Holder
24WB28X30966 GE Orifice Holder Left
25WB28X30968 GE Rear Orifice Holder
27WB28X30961 GE Supply Manifold Tube
28WB1X1293 GE Oven Screw
29WB21X30965 GE Oven Pressure Regulator
30WB16X30977 GE Oven Burner Assembly
34WB28X30960 GE Safety Valve Tube
55WB21X20261 GE Oven Burner Valve 270
56VALVE BURNER 270
57WB21X20262 GE Oven Burner Valve 270
88WB35X21708 GE Valve Seal
95WB02K10337 GE Cover Cap
214WB21X31124 GE Safety Valve
218WB13X30972 GE Oven Igniter Glowbar
219WB34X30988 GE Oven Deflector
272WZ4X345D GE Screw Package 12 C92
312WB01K10091 GE Oven Screw
345WB1K5062 GE Oven Screw
717WB35K10079 GE Oven Safety Valve Insulation
831WB01K10083 GE 8-32 Screw
832WB01K10097 GE Range Thermostat Screw
900WB02K10297 GE Oven Valve Bracket
999PM QUICK OWNERS MANUAL
999PM MANUAL MINI & WD ASM
999PM OWNERS MANUAL
999PM PROPANE INSTALLATION
999PM INSTALL INSTRUCTIONS
1150HARNESS SAFETY VALVE
