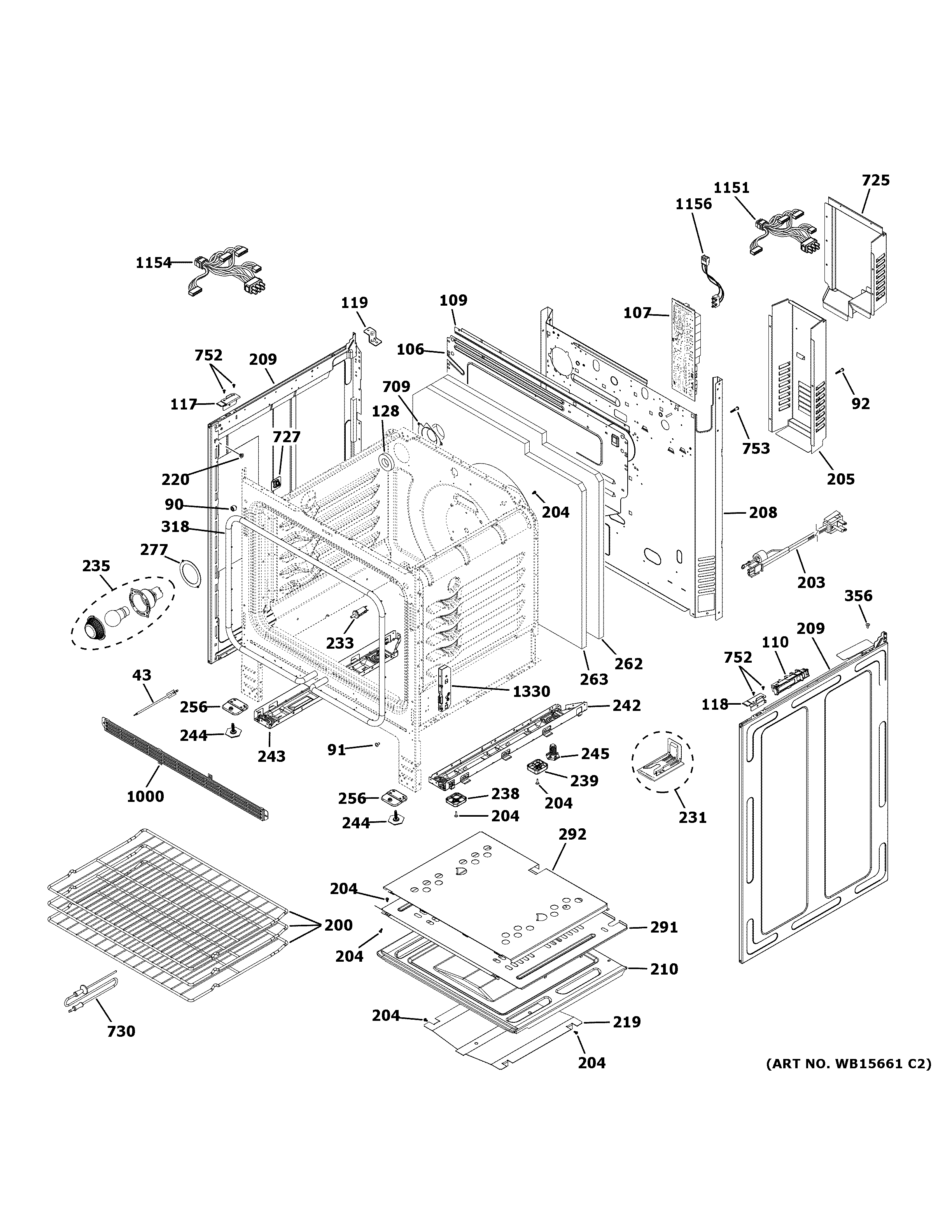

QGSS740RN1SS BODY PARTS

QGSS740RN1SS BODY PARTS

Written by

in

QGSS740RN1SS BODY PARTS

Products

PositionProduct
43WB24X25557 GE Oven Sensor Assembly
90WB02X28738 GE Oven Front Frame Bumper
91WB01T10008 GE Oven Screw 10-32
92WB1X1261 GE Oven Screw
106WB34X28955 GE Back Cover
107WB27X36769 GE Appliance Machine Board With Frame
109WB34X28912 GE Oven Backguard Component
110WB13X24323 GE Oven Ignition Module
117FRONT SUPPORT LH
118FRONT SUPPORT RH
119WB02X20735 GE Top Rear Support
128LAMP INSULATION
200OVEN RACK
203WB18X28854 GE Oven Line Cord
204WB1K5062 GE Oven Screw
205WB34K10097 GE Oven Motor Cover
208WB63X28974 GE Back
209WB56X28849 GE Oven Side Panel
210WB35X37968 GE Heat Shield
219WB34X28689 GE Deflector
219OVEN DEFLECTOR
220GEN WB02K0008
231WB02K10254 GE Oven Anti-Tip Bracket Assembly
233WB24X27550 GE Oven Plunger Switch
235WB08T10002 OVEN LAMP ASSEMBLY 40W BULB
238WB16X20448 GE Oven Spacer Base
239WB16X20449 GE Oven Base Spacer
239WB63K10203 GE Oven Rear Broil Panel
242WB63X20215 GE Oven Support Base
243WB63X20216 GE Oven Support Base
244WB02X29030 GE Range Leveling Leg
245WB02K10182 GE Oven Leveling Leg
256FOOT BRACKET
262WB35X28785 GE Oven Back Insulation
263WB35X28787 GE Oven Back Insulation
277WB32K10044 GE Oven Light Gasket
291WB63K16 GE Oven Bottom Guard
292WB63K10187 GE Bottom Inner Guard
318WB32X29539 GE Oven Gasket Assembly
356WR01X10065 GE Screw
709WB08K10018 GE Range Light Cover
725CONTROL COVER
727WB34K10121 GE Oven Probe Receptacle & Harness
730WB20T10024 GE Oven Thermistor Probe
752WB01K10091 GE Oven Screw
753WB01X21893 GE Screw 8-18 AB X 5/8"
1000WB34X24779 GE Front Frame Trim
1151HARNESS MAIN
1154WB18X35921 GE DC Harness
1156WB18X35926 GE Interface Harness
1330WB10X28563 GE Oven Receiver Hinge
