QGSS740RN1SS DOOR & DRAWER PARTS

QGSS740RN1SS DOOR & DRAWER PARTS

Written by

in

QGSS740RN1SS DOOR & DRAWER PARTS

Products

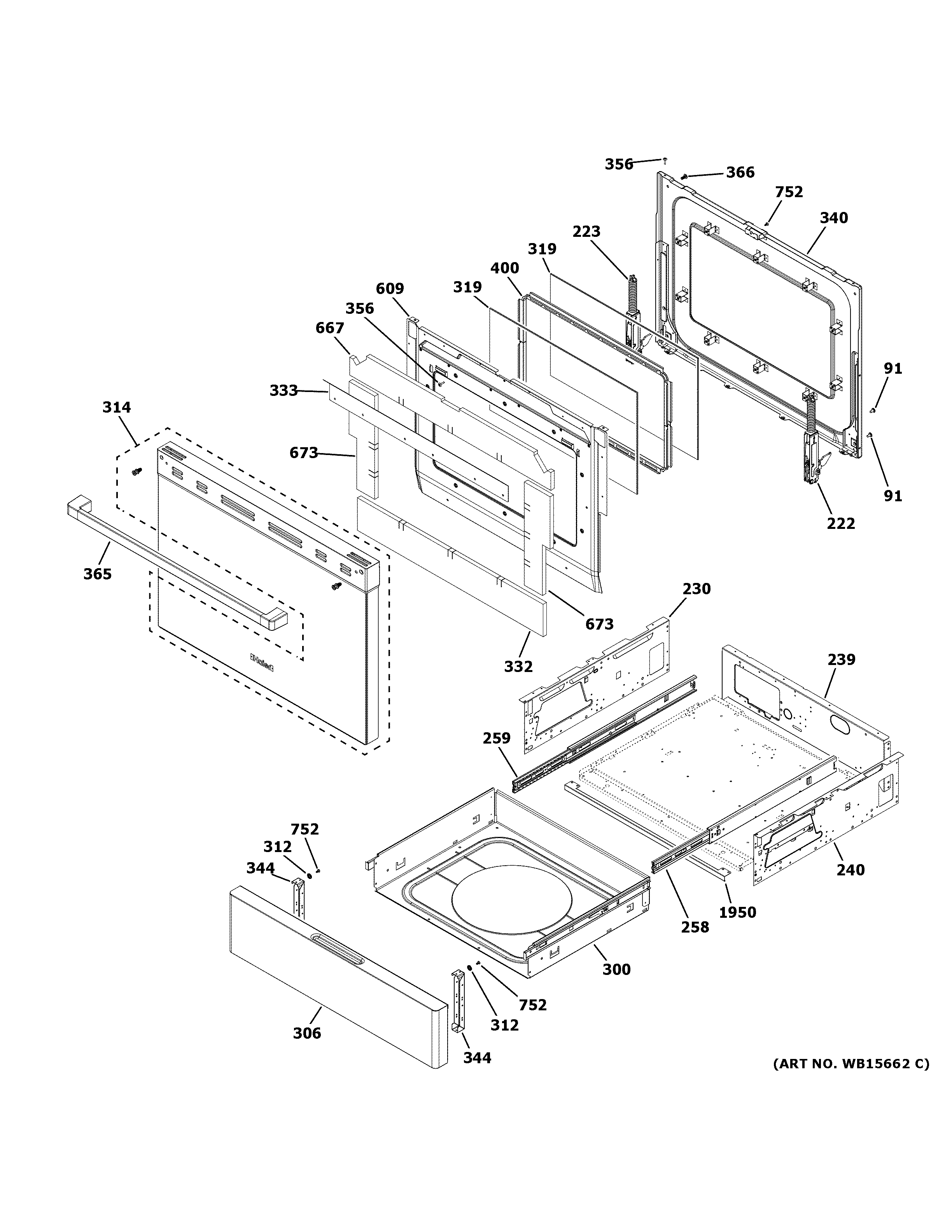

PositionProduct
91WB01T10008 GE Oven Screw 10-32
222WB10X26766 GE Oven Door Hinge
223WB10X24776 GE Oven Door Hinge
230GEN WB63K0002
239WB63K10203 GE Oven Rear Broil Panel
239WB16X20449 GE Oven Base Spacer
240WB63K3 GE Oven Panel Side Broil
258WB39K10020 GE Oven Right Drawer Slide Assembly
259WB39K10021 GE Oven Left Drawer Slide Assembly
300WB49X26562 GE Oven Drawer Body Assembly Kit
306WB56X24829 GE Oven Drawer Panel
312WB02X32440 GE Washer Contoured
314GLASS AND PANEL DOOR
319WB57K10174 GE Range Crystal Window Door
332WB35K10221 GE Range Insulation
333DEFLECTOR DOOR
340WB56X24760 GE Range Door Liner
344WB02X24742 GE Oven Drawer Bracket
356WR01X10065 GE Screw
365WB15X35929 GE Stainless Steel Handle
366GEN WB01K0078
400WB34X28742 GE Window Frame Assembly
609WB34X24749 GE Door Guard
667INSULATION DOOR
673WB35K10222 GE Oven Insulation
752WB01K10091 GE Oven Screw
1950WB01K10072 GE Oven Front Bottom Trim
