QGSS740RN1SS GAS & BURNER PARTS

QGSS740RN1SS GAS & BURNER PARTS

Written by

in

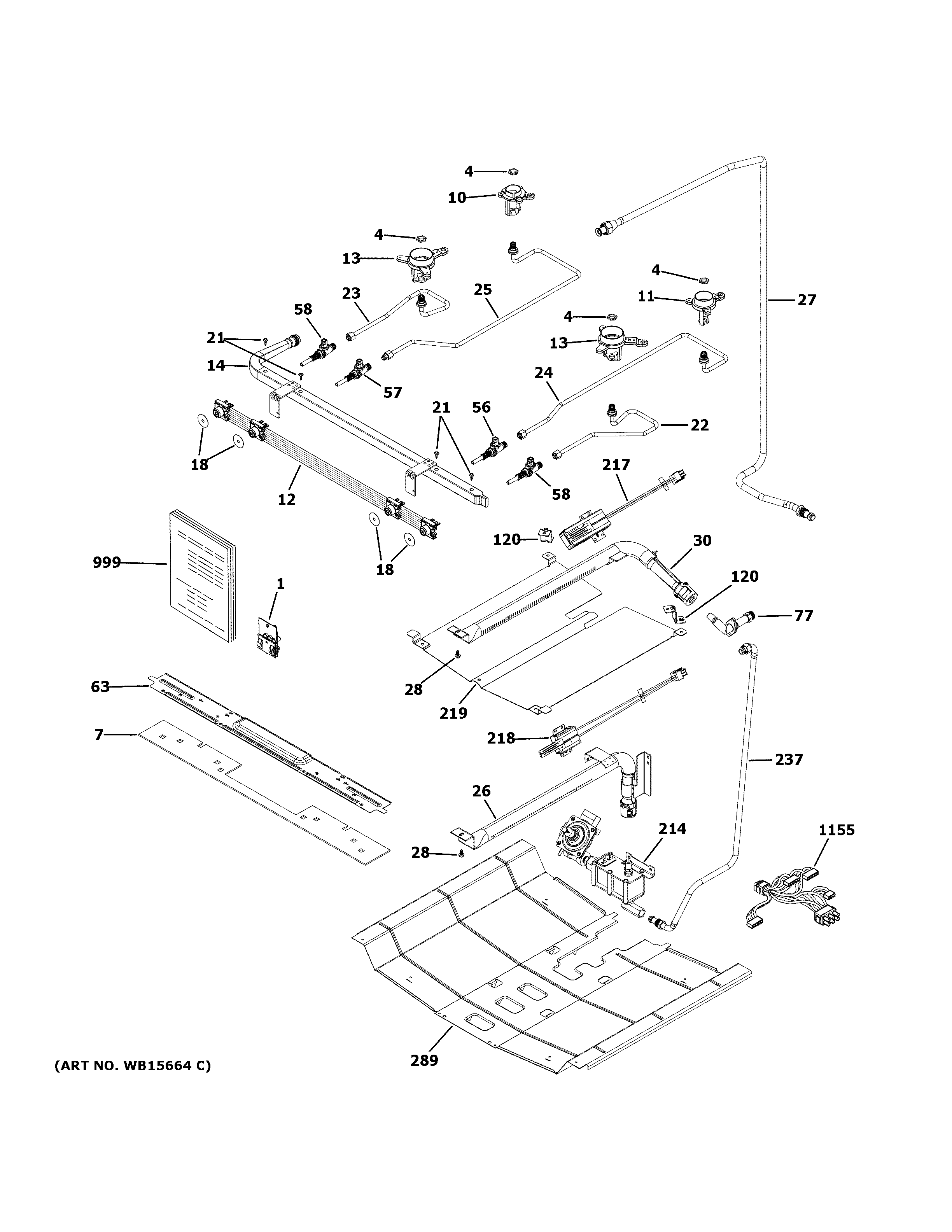

QGSS740RN1SS GAS & BURNER PARTS

Products

PositionProduct
1KIT LP CONVERSION ASM
4WB01K10037 GE Oven Economic Nut
7WB35X24985 GE Burner Box Insulation
10WB02X24728 GE Range Small Injector
11WB02X24727 GE Oven Right Front Burner Jet with Electrode
12HARNESS SWITCHES
13WB02X24725 GE Oven Inlet XLV2
14MANIFOLD PIPE ASM
18WB02X28680 GE Range Valve Cover
21WB01K10067 GE Oven Screw 1/4" HD 20
22ORIFICE HOLDER
23ORIFICE HOLDER
24ORIFICE HOLDER
25ORIFICE HOLDER
26WB16X28250 GE Oven Bake Burner
27WB28X24772 GE Oven Gas Tube Connector
28WB1X1293 GE Oven Screw
30WB16X28251 GE Range Broil Burner
56VALVE BURNER 270
57WB21X25979 GE Oven Burner Valve 270
58VALVE BURNER 270
63WB34X20680 GE Support Manifold
77WB28X28697 GE Oven 90-Degree Elbow Assembly
120SUPPORT COOK TOP REAR
214VALVE CONTROL ASM
217WB13X24755 GE Broil Igniter Glow Bar
218IGNITER GLOWBAR
219WB34X28689 GE Deflector
219OVEN DEFLECTOR
237WB28X24773 GE Oven Burner Supply Tube
289WB34K10086 GE Oven Lower Heat Shield
999PM OWNERS MANUAL
999PM QUICK OWNERS MANUAL
999PM INSTALL INSTRUCTIONS
999PM MINI MANUAL AND WIRING
999PM INSTALL INSTRUCTIONS
999PM WI FI INSTRUCTIONS
1155WB18X28724 GE Drawer Harness
