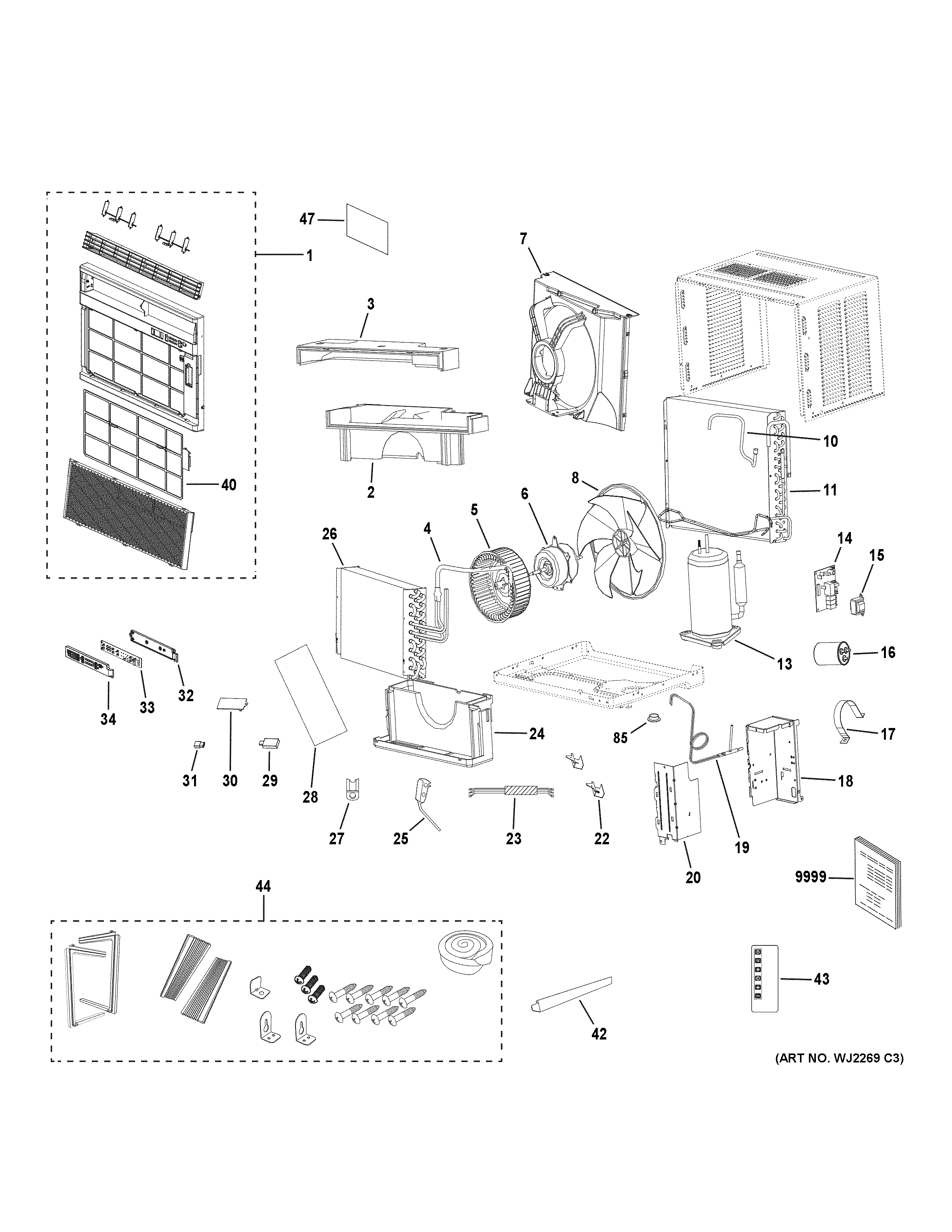

QHC08LXW1 ROOM AIR CONDITIONERadmin2025-04-26T10:21:26+00:00QHC08LXW1 ROOM AIR CONDITIONER ProductsPositionProduct1WJ71X23900 GE Front Panel Assembly2WJ76X23888 GE Indoor Fan Shroud3WJ76X23887 GE Indoor Upper Fan Shroud4SUCTION TUBE5WJ76X22150 GE Air Conditioner Indoor Fan Blade6WJ94X22406 GE Air Conditioner Fan Motor7WJ76X23890 GE Outdoor Fan Shroud8WJ73X20380 GE Axial Fan10DISCHARGING TUBE11WJ88X24346 GE Air Conditioner Condenser13WJ98X23896 GE Air Conditioner Compressor14WJ26X22155 GE Air Conditioner Main Board15WJ27X20099 GE Transformer16WJ20X20068 GE Air Conditioner Capacitor17CAPACITOR CLAMP18WJ05X20076 GE Control Box19WJ53X23897 GE Capillary Tube20WJ76X23886 GE Electric Box Cover22BRACKET GUIDE23WJ35X22191 GE Main Harness24WJ76X23889 GE Indoor Lower Fan Shroud25WJ35X22193 GE Power Cord26WJ87X24341 GE Air Conditioner Evaporator Assembly27WJ01X22194 GE Strain Relief28WJ43X22408 GE Evaporator Side Plate29WJ35X23893 GE Wiring Harness30WJ76X23891 GE Air Conditioner Cover Board31WJ01X23901 GE Wi-Fi Module32WJ26X23867 GE Air Conditioner UI Board Support33WJ26X24348 GE Air Conditioner User Interface Board34WJ26X23868 GE Air Conditioner UI Board Cover40WJ85X23892 GE Filter42WJ86X21742 GE Air Conditioner Top Rail43WJ26X27734 GE Remote44WJ01X21741 GE Air Conditioner Installation Kit47WJ71X29318 GE User Interface Overlay85WJ05X20122 GE Plug9999PM USE AND CARE9999PM MINI MANUAL
