QHC12AXW1 ROOM AIR CONDITIONER

QHC12AXW1 ROOM AIR CONDITIONER

Written by

in

QHC12AXW1 ROOM AIR CONDITIONER

Products

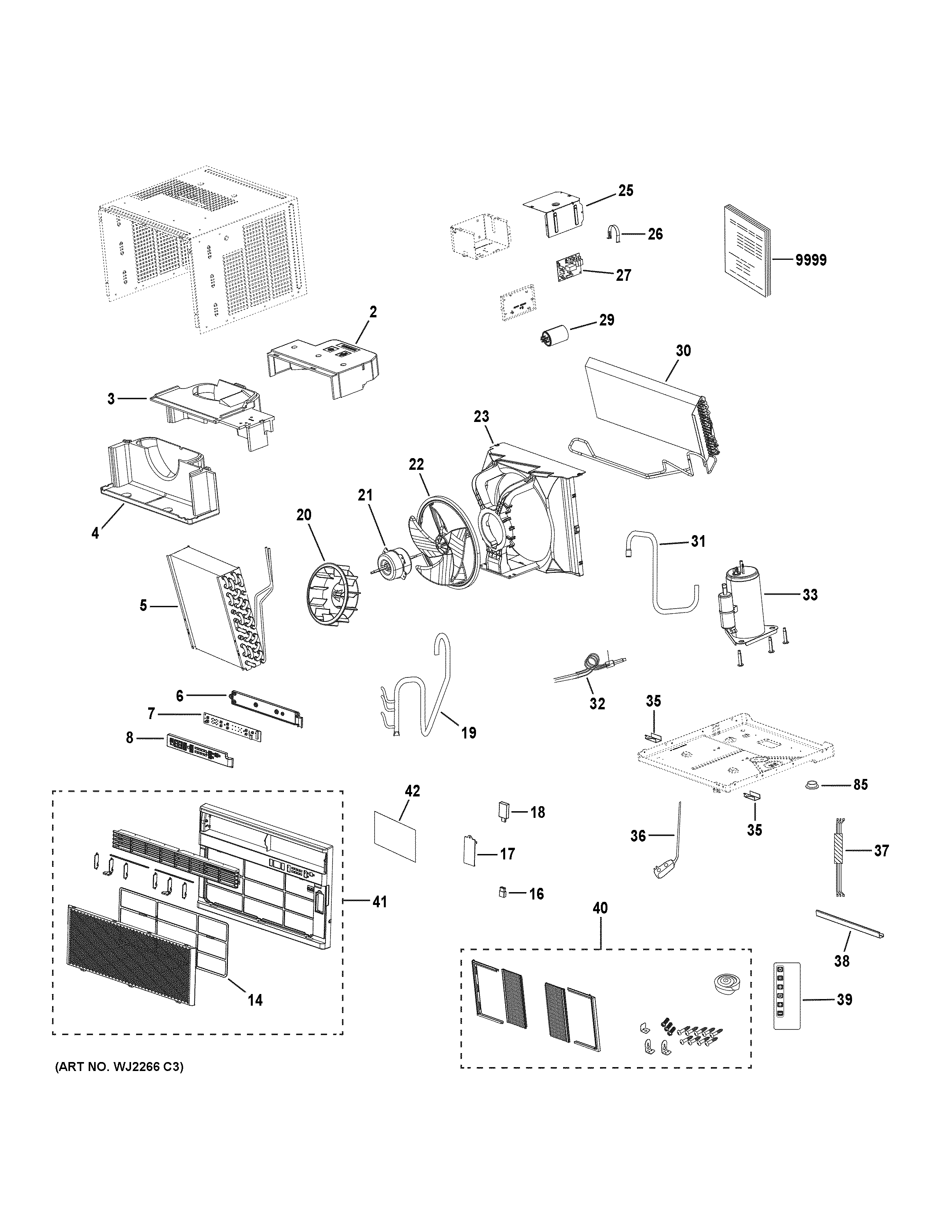

PositionProduct
2WJ76X22153 GE Indoor Fan Shroud Upper
3WJ76X22152 GE Indoor Fan Shroud
4WJ76X22151 GE Indoor Fan Lower Shroud
5WJ87X22940 GE Air Conditioner Evaporator Assembly
6WJ26X23868 GE Air Conditioner UI Board Cover
7WJ26X23922 GE Air Conditioner IU Control Board
8WJ26X23867 GE Air Conditioner UI Board Support
14FILTER
16WJ35X23893 GE Wiring Harness
17WJ76X23891 GE Air Conditioner Cover Board
18WJ01X23911 GE Air Conditioner WiFi Module
19SUCTION TUBE
20WJ76X22150 GE Air Conditioner Indoor Fan Blade
21WJ94X26893 GE Air Conditioner Fan Motor
22WJ76X22156 GE Air Conditioner Outdoor Fan Blade
23WJ76X22157 GE Outdoor Fan Shroud
25WJ76X22145 GE Cover
26CAPACITOR CLAMP
27WJ26X22163 GE Air Conditioner Main Board
29WJ20X20068 GE Air Conditioner Capacitor
30WJ88X22921 GE Condenser
31WJ53X23920 GE Discharging Tube
32WJ53X22159 GE Capillary Tube
33COMPRESSOR
35BRACKET GUIDE
36POWER CORD
37WJ35X23903 GE Main Harness
38WJ65X23641 GE Top Rail
39WJ26X27734 GE Remote
40WJ43X22154 GE Air Conditioner Room Installation
41WJ71X23910 GE Front Panel Assembly
42WJ71X29316 GE User Interface Overlay
85WJ05X20122 GE Plug
9999PM USE AND CARE
