QHC24DXH1 ROOM AIR CONDITIONER

QHC24DXH1 ROOM AIR CONDITIONER

Written by

in

QHC24DXH1 ROOM AIR CONDITIONER

Products

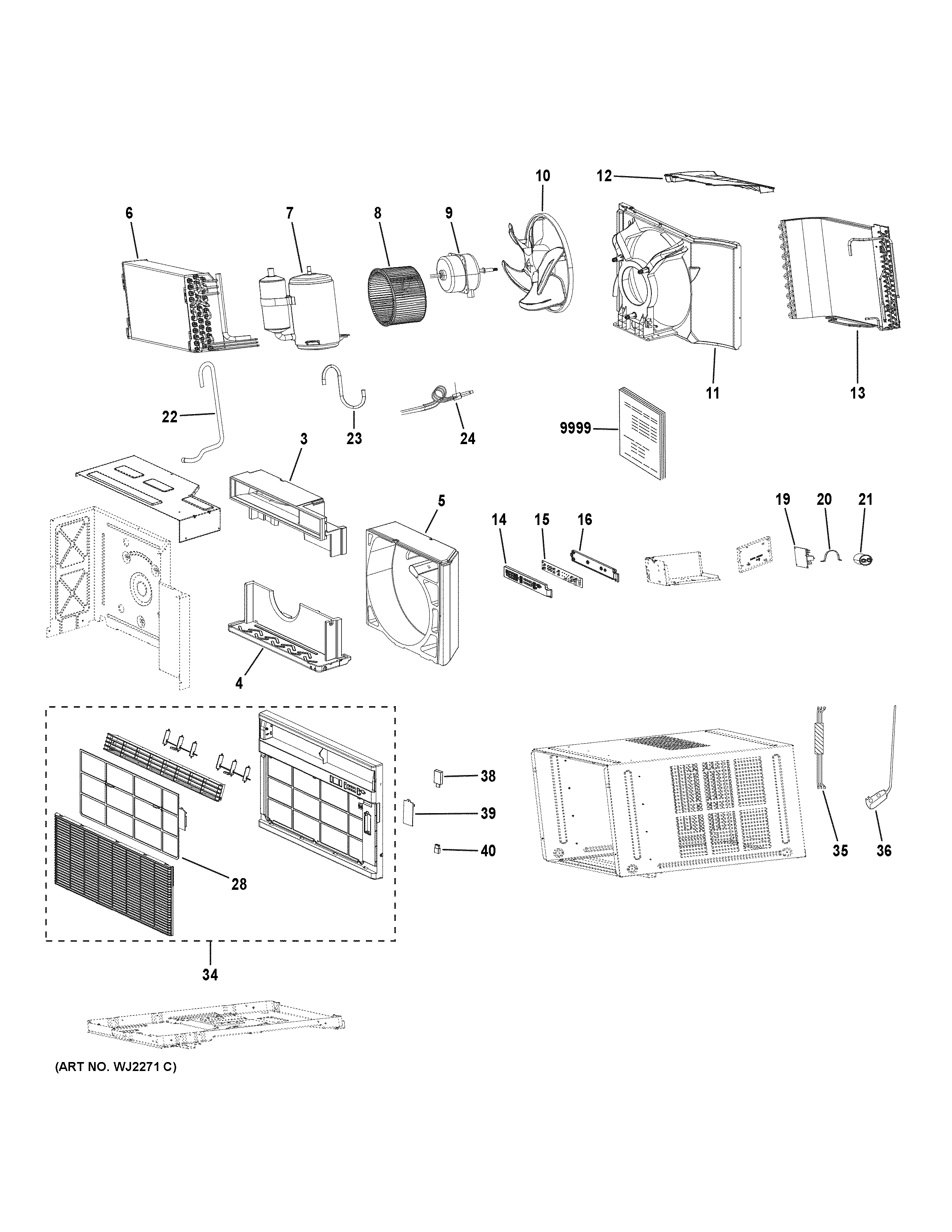

PositionProduct
3WJ76X23950 GE Indoor Fan Shroud Upper
4WJ76X23951 GE Indoor Fan Shroud
5WJ76X23949 GE Indoor Fan Shroud Lower
6WJ87X24343 GE Evaporator Assembly
7WJ98X22128 GE Air Conditioner Compressor
8WJ76X22121 GE Indoor Fan Blade
9WJ94X22119 GE Fan Motor
10WJ73X20130 GE Air Conditioner Axial Fan
11WJ76X23948 GE Outdoor Shroud Fan
12WJ76X20154 GE Rear Cover Board
13WJ88X22200 GE Condenser Assembly
14WJ26X23868 GE Air Conditioner UI Board Cover
15WJ26X23922 GE Air Conditioner IU Control Board
16WJ26X23867 GE Air Conditioner UI Board Support
19WJ26X22123 GE Air Conditioner Main Control Board
20WJ01X23946 GE Capacitor Clamp
21WJ20X23956 GE Capacitor
22WJ53X24347 GE Suction Tube
23DISCHARGE TUBE
24WJ53X22127 GE Capillary Tube
28WJ85X23947 GE Air Conditioner Filter
34WJ71X23953 GE Front Panel Assembly
35WJ36X10023 GE Harness
36POWER CORD
38WJ43X22122 GE Installation Parts
39WJ26X27734 GE Remote
40WJ65X22125 GE Top Rail
9999PM MINI MANUAL
9999PM USE AND CARE
