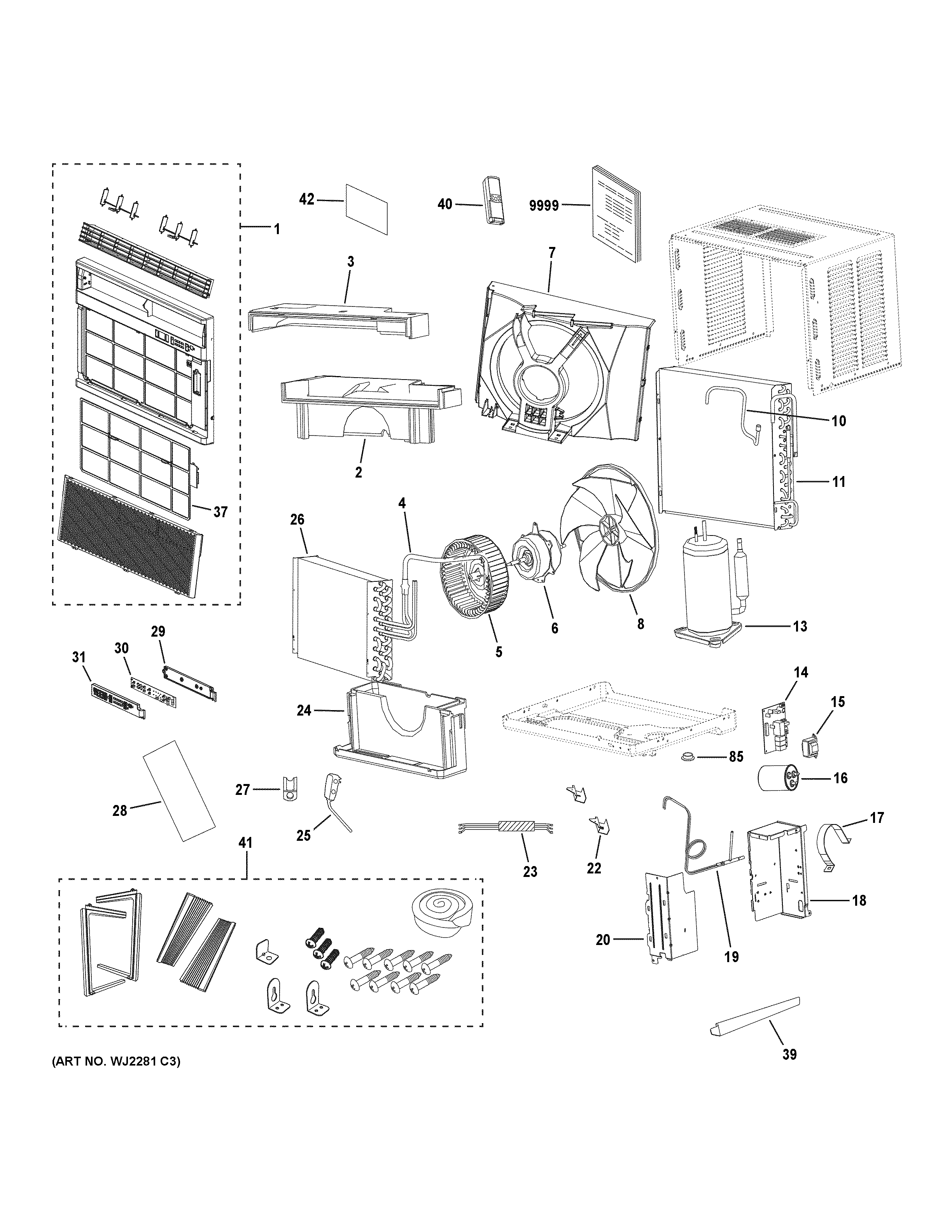

QHM06LXW1 ROOM AIR CONDITIONER

Products

Position	Product
1	WJ71X23883 GE Front Panel Assembly
2	WJ76X23864 GE Indoor Fan Shroud Middle
3	WJ76X23863 GE Upper Indoor Fan Shroud
4	SUCTION TUBE
5	WJ76X22190 GE Indoor Fan Shroud
6	WJ94X22189 GE Fan Motor
7	WJ76X23866 GE Outdoor Fan Shroud
8	WJ76X22192 GE Outdoor Fan Shroud
10	DISCHARGING TUBE
11	CONDENSER
13	WJ98X23881 GE Compressor
14	WJ26X22155 GE Air Conditioner Main Board
15	WJ27X20099 GE Transformer
16	WJ20X22183 GE Air Conditioner Capacitor
17	WJ03X10093 GE Capacitor Clamp
18	WJ76X23880 GE Cover
19	WJ53X23882 GE Capillary Tube
20	WJ76X23862 GE Electric Cover Box
22	BRACKET GUIDE
23	WJ35X22191 GE Main Harness
24	WJ76X23865 GE Indoor Fan Shroud Lower
25	WJ35X22193 GE Power Cord
26	WJ87X24344 GE Evaporator
27	WJ01X22194 GE Strain Relief
28	WJ43X22408 GE Evaporator Side Plate
29	WJ26X23867 GE Air Conditioner UI Board Support
30	WJ26X24348 GE Air Conditioner User Interface Board
31	WJ26X23868 GE Air Conditioner UI Board Cover
37	WJ85X23869 GE Air Conditioner Filter
39	WJ86X21742 GE Air Conditioner Top Rail
40	WJ26X27734 GE Remote
41	WJ43X23877 GE Air Conditioner Installation Assembly
42	WJ71X29319 GE Air Conditioner User Interface Overlay
85	WJ05X20122 GE Plug
9999	PM USE AND CARE
9999	PM MINI MANUAL
