QHM08LXW1 ROOM AIR CONDITIONER
Written by
in

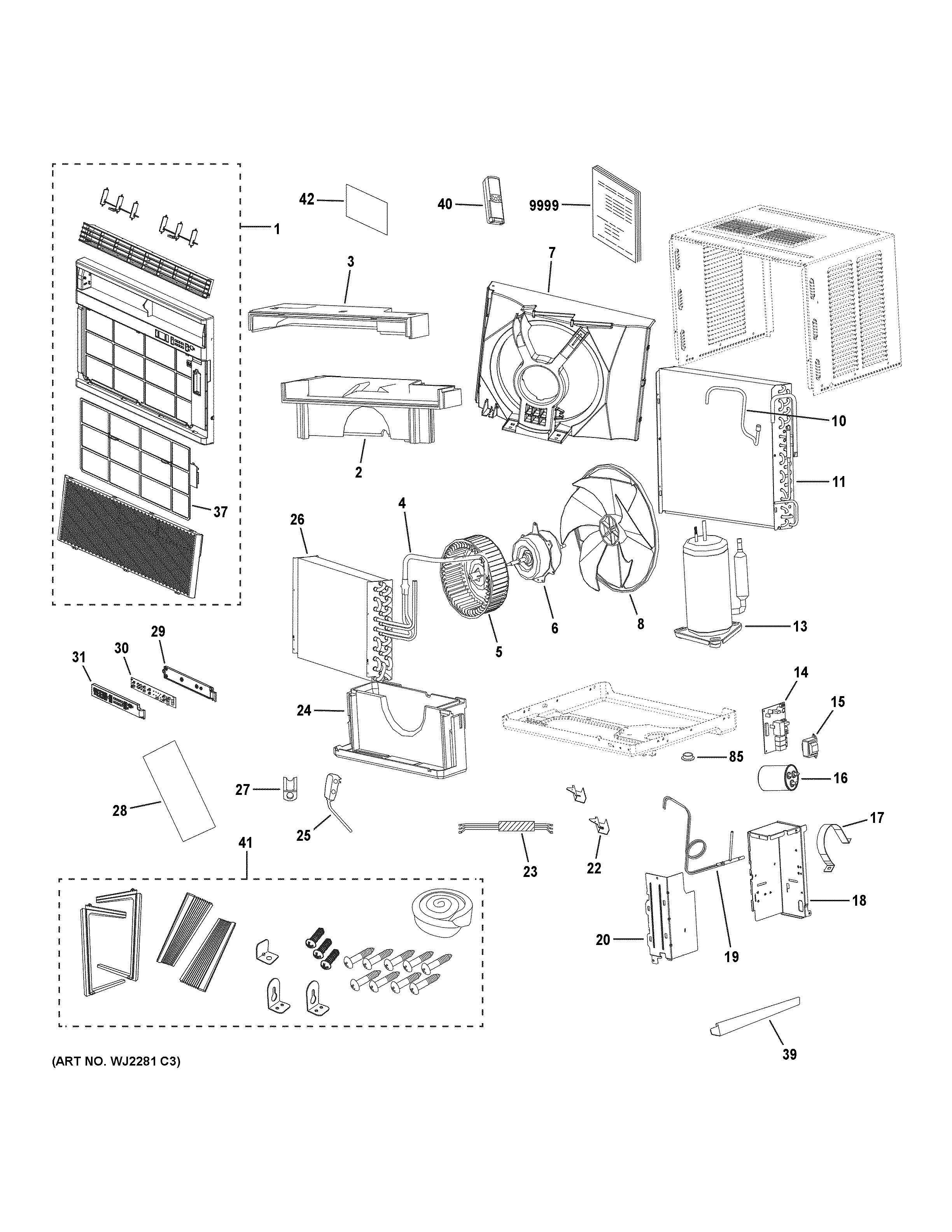

QHM08LXW1 ROOM AIR CONDITIONER
Products
Position
Product
1
WJ71X23905 GE Front Panel Assembly
2
WJ76X23888 GE Indoor Fan Shroud
3
WJ76X23887 GE Indoor Upper Fan Shroud
4
SUCTION TUBE
5
WJ76X22150 GE Air Conditioner Indoor Fan Blade
6
WJ94X22406 GE Air Conditioner Fan Motor
7
WJ76X23890 GE Outdoor Fan Shroud
8
WJ73X20380 GE Axial Fan
10
DISCHARGING TUBE
11
WJ88X24346 GE Air Conditioner Condenser
13
WJ98X23896 GE Air Conditioner Compressor
14
WJ26X22155 GE Air Conditioner Main Board
15
WJ27X20099 GE Transformer
16
WJ20X20068 GE Air Conditioner Capacitor
17
CAPACITOR CLAMP
18
WJ05X20076 GE Control Box
19
WJ53X23897 GE Capillary Tube
20
WJ76X23886 GE Electric Box Cover
22
BRACKET GUIDE
23
WJ35X23903 GE Main Harness
24
WJ76X23889 GE Indoor Lower Fan Shroud
25
WJ35X22193 GE Power Cord
26
WJ87X24341 GE Air Conditioner Evaporator Assembly
27
WJ01X22194 GE Strain Relief
28
WJ43X22408 GE Evaporator Side Plate
29
WJ26X23867 GE Air Conditioner UI Board Support
30
WJ26X24348 GE Air Conditioner User Interface Board
31
WJ26X23868 GE Air Conditioner UI Board Cover
37
WJ85X23892 GE Filter
39
WJ86X21742 GE Air Conditioner Top Rail
40
WJ26X27734 GE Remote
41
WJ01X21741 GE Air Conditioner Installation Kit
42
USER INTERFACE OVERLAY
85
WJ05X20122 GE Plug
9999
PM MINI MANUAL
9999
PM USE AND CARE
←
