QHM10AXQ1 ROOM AIR CONDITIONER

QHM10AXQ1 ROOM AIR CONDITIONER

Written by

in

QHM10AXQ1 ROOM AIR CONDITIONER

Products

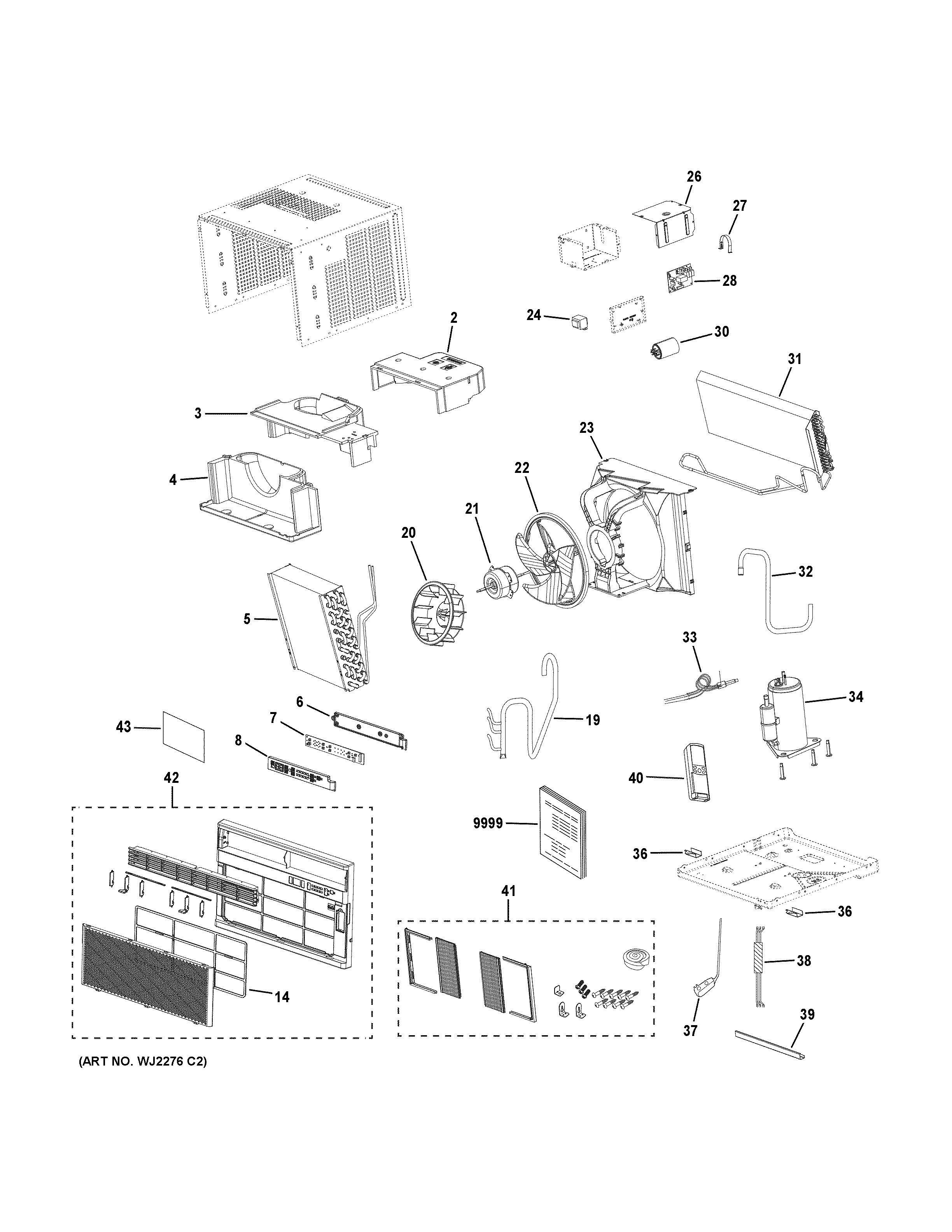

PositionProduct
2WJ76X22153 GE Indoor Fan Shroud Upper
3WJ76X22152 GE Indoor Fan Shroud
4WJ76X22151 GE Indoor Fan Lower Shroud
5WJ87X22940 GE Air Conditioner Evaporator Assembly
6WJ26X23868 GE Air Conditioner UI Board Cover
7WJ26X24348 GE Air Conditioner User Interface Board
8WJ26X23867 GE Air Conditioner UI Board Support
14FILTER
19WJ53X23908 GE Suction Tube
20WJ76X22150 GE Air Conditioner Indoor Fan Blade
21WJ94X22148 GE Air Conditioner Fan Motor
22WJ76X22156 GE Air Conditioner Outdoor Fan Blade
23WJ76X22157 GE Outdoor Fan Shroud
24WJ27X23906 GE Transformer Assembly
26WJ76X22145 GE Cover
27WJ1X21762 GE Capacitor Clamp
28WJ26X22155 GE Air Conditioner Main Board
30WJ20X21774 GE Air Conditioner Capacitor
31WJ88X22943 GE Condenser Assembly
32WJ53X23907 GE Discharging Tube
33WJ53X22141 GE Capillary Assembly
34WJ98X22142 GE Compressor
36BRACKET GUIDE
37POWER CORD
38WJ35X23903 GE Main Harness
39WJ65X23641 GE Top Rail
40WJ26X27734 GE Remote
41WJ43X22154 GE Air Conditioner Room Installation
42WJ71X23910 GE Front Panel Assembly
43WJ71X29315 GE User Interface Overlay
9999PM MINI MANUAL
9999PM USE AND CARE
