QHM15AXW1 ROOM AIR CONDITIONER

QHM15AXW1 ROOM AIR CONDITIONER

Written by

in

QHM15AXW1 ROOM AIR CONDITIONER

Products

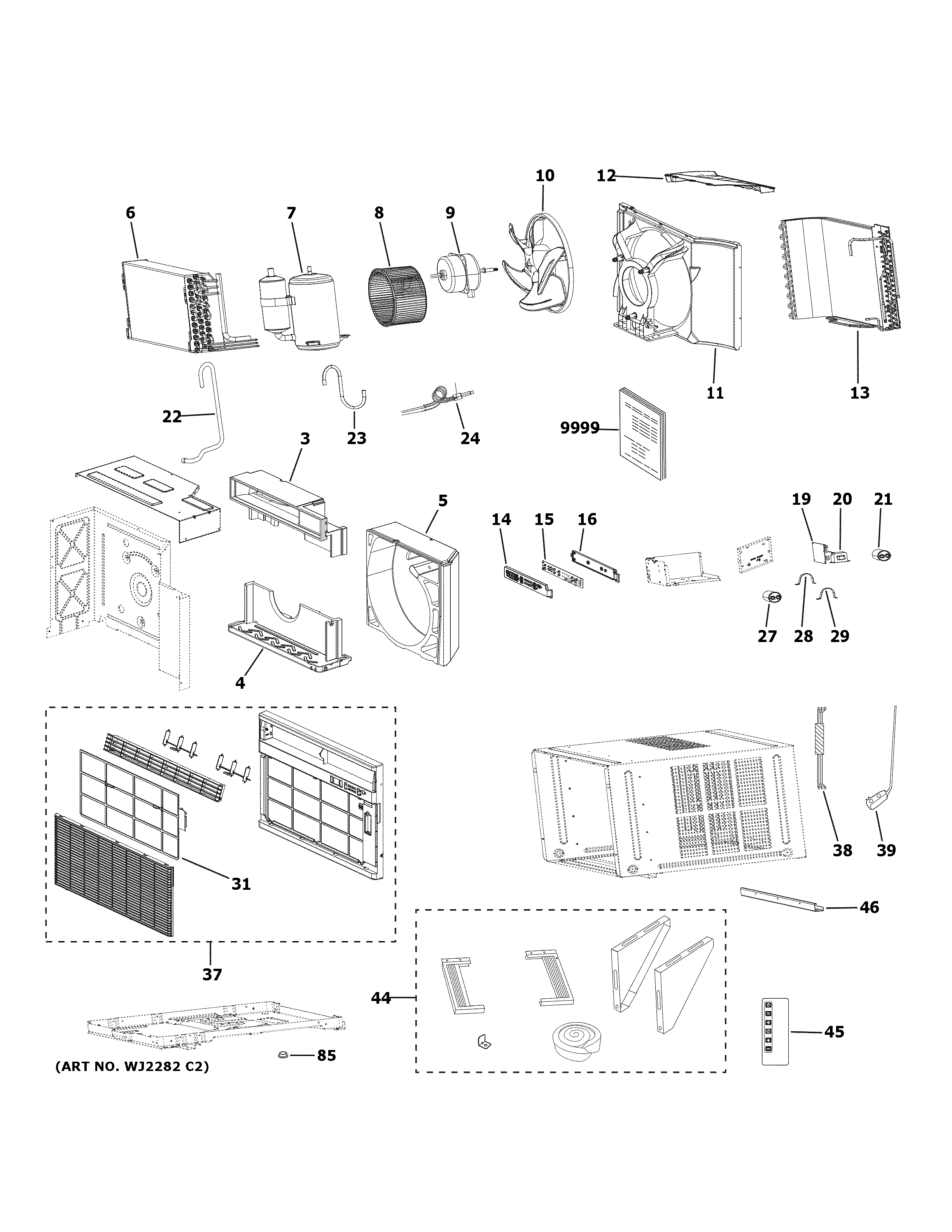

PositionProduct
3WJ76X23950 GE Indoor Fan Shroud Upper
4WJ76X23951 GE Indoor Fan Shroud
5WJ76X23949 GE Indoor Fan Shroud Lower
6WJ87X24342 GE Evaporator Assembly
7WJ98X22168 GE Compressor
8WJ76X22121 GE Indoor Fan Blade
9WJ94X22171 GE Fan Motor
10WJ73X20130 GE Air Conditioner Axial Fan
11WJ76X23948 GE Outdoor Shroud Fan
12WJ76X20154 GE Rear Cover Board
13WJ88X22200 GE Condenser Assembly
14WJ26X23868 GE Air Conditioner UI Board Cover
15WJ26X24348 GE Air Conditioner User Interface Board
16WJ26X23867 GE Air Conditioner UI Board Support
19WJ26X22155 GE Air Conditioner Main Board
20WJ27X23906 GE Transformer Assembly
21WJ20X22165 GE Capacitor
22WJ53X22172 GE Suction Tube
23WJ53X22169 GE Discharge Tube
24WJ53X22167 GE Capillary Tube
27WJ20X22164 GE Capacitor
28WJ01X23946 GE Capacitor Clamp
29CAPACITOR CLAMP
31WJ85X23947 GE Air Conditioner Filter
37WJ71X23953 GE Front Panel Assembly
38WJ36X10023 GE Harness
39POWER CORD
44WJ43X22122 GE Installation Parts
45WJ26X27734 GE Remote
46WJ65X22125 GE Top Rail
85WJ05X20122 GE Plug
9999PM MINI MANUAL
9999PM USE AND CARE
