QHQ06LXW1 ROOM AIR CONDITIONER

QHQ06LXW1 ROOM AIR CONDITIONER

Written by

in

QHQ06LXW1 ROOM AIR CONDITIONER

Products

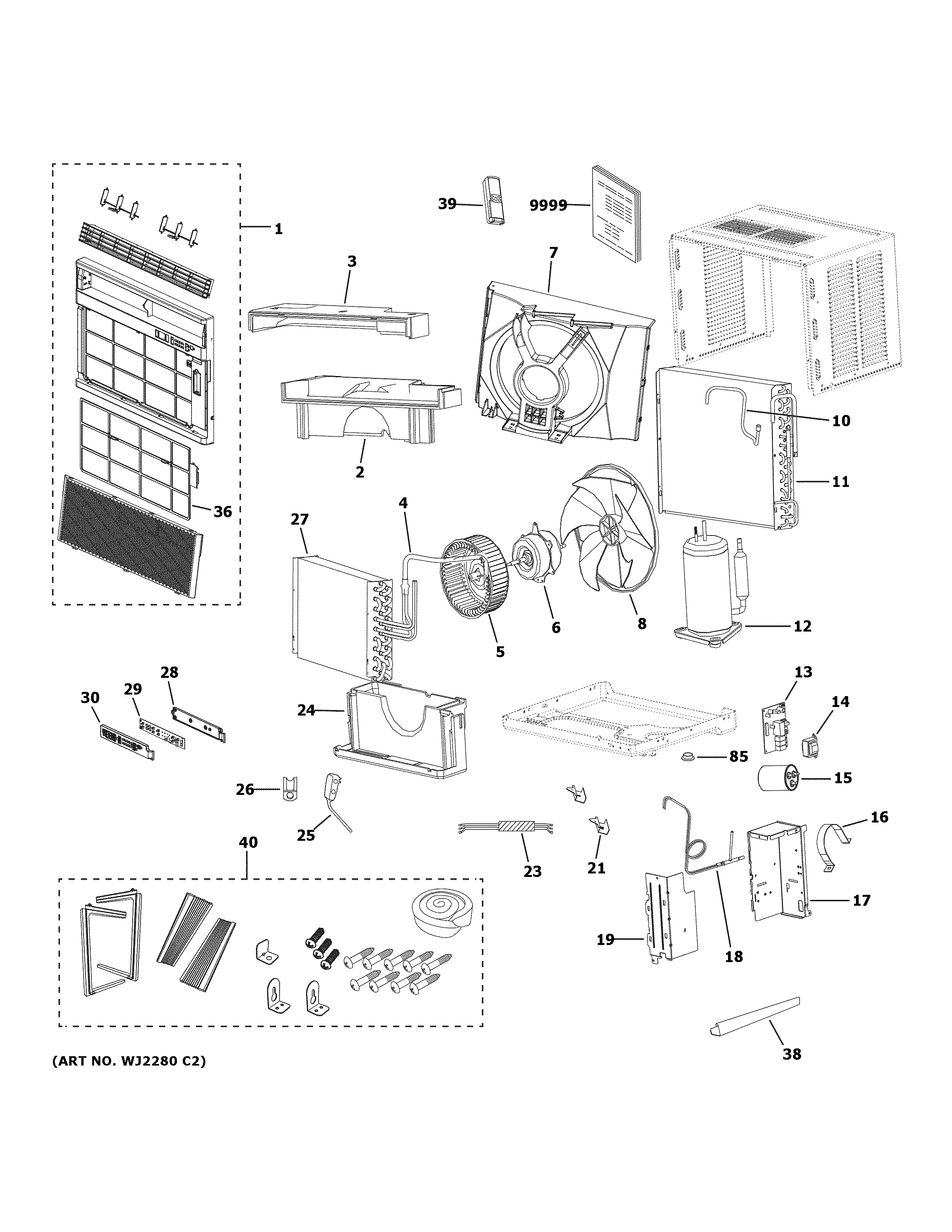

PositionProduct
1WJ71X23883 GE Front Panel Assembly
2WJ76X23864 GE Indoor Fan Shroud Middle
3WJ76X23863 GE Upper Indoor Fan Shroud
4SUCTION TUBE
5WJ76X22190 GE Indoor Fan Shroud
6WJ94X22189 GE Fan Motor
7WJ76X23866 GE Outdoor Fan Shroud
8WJ76X22192 GE Outdoor Fan Shroud
10DISCHARGING TUBE
11WJ88X24345 GE Condenser
12WJ98X23884 GE Compressor
13WJ98X23881 GE Compressor
14WJ26X22155 GE Air Conditioner Main Board
15WJ27X20099 GE Transformer
16WJ20X22183 GE Air Conditioner Capacitor
17WJ76X23861 GE Cover
18WJ53X23876 GE Capillary Tube
19WJ76X23862 GE Electric Cover Box
21BRACKET GUIDE
23WJ35X22191 GE Main Harness
24WJ76X23865 GE Indoor Fan Shroud Lower
25WJ35X22193 GE Power Cord
26WJ01X22194 GE Strain Relief
27WJ87X24344 GE Evaporator
28WJ26X23867 GE Air Conditioner UI Board Support
29WJ26X24348 GE Air Conditioner User Interface Board
30WJ26X23868 GE Air Conditioner UI Board Cover
36WJ85X23869 GE Air Conditioner Filter
38WJ65X22104 GE Air Conditioner Top Rail
39WJ26X27734 GE Remote
40WJ01X23642 GE Room Air Conditioner Installation Assembly
85WJ05X20122 GE Plug
9999PM MINI MANUAL
9999PM USE AND CARE
