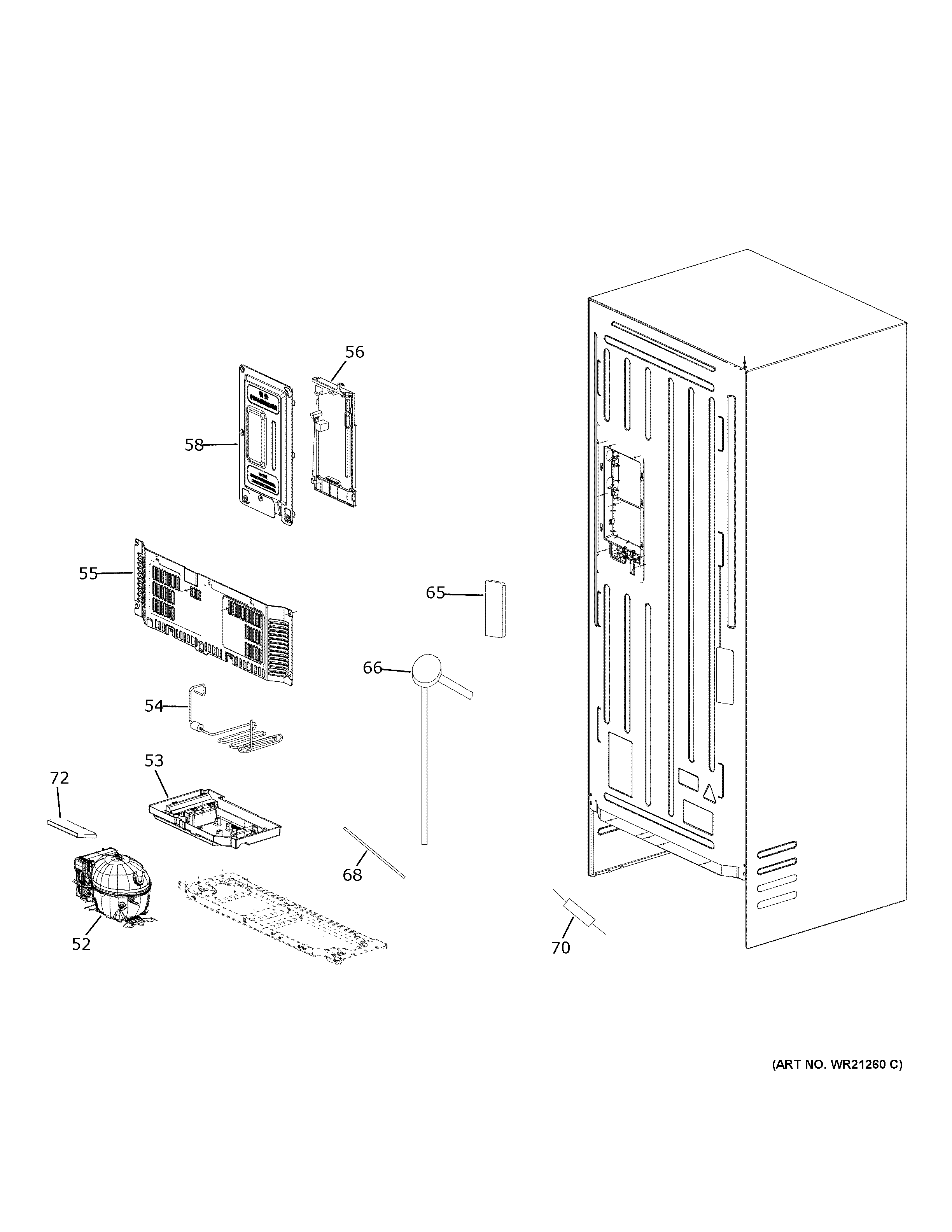

QJS15HYRBFS MACHINE COMPARTMENT

Products

Position	Product
52	WR87X31725 GE Refrigerator Compressor
53	DRAIN TRAY
54	CONDENSER
55	REAR ACCESS COVER
56	WR55X40165 GE Main Control Board with Power
58	MAIN CONTROL BOARD COVER
65	FILL TUBE COVER
66	FILLT TUBE GROMMET AND GASKET
68	WR87X30876 GE Refrigerator R600 Process Valve with Red Cap
70	WR87X30875 GE Refrigerator R600 Dryer with Red Cap
72	WR55X30490 GE Refrigerator Inverter
