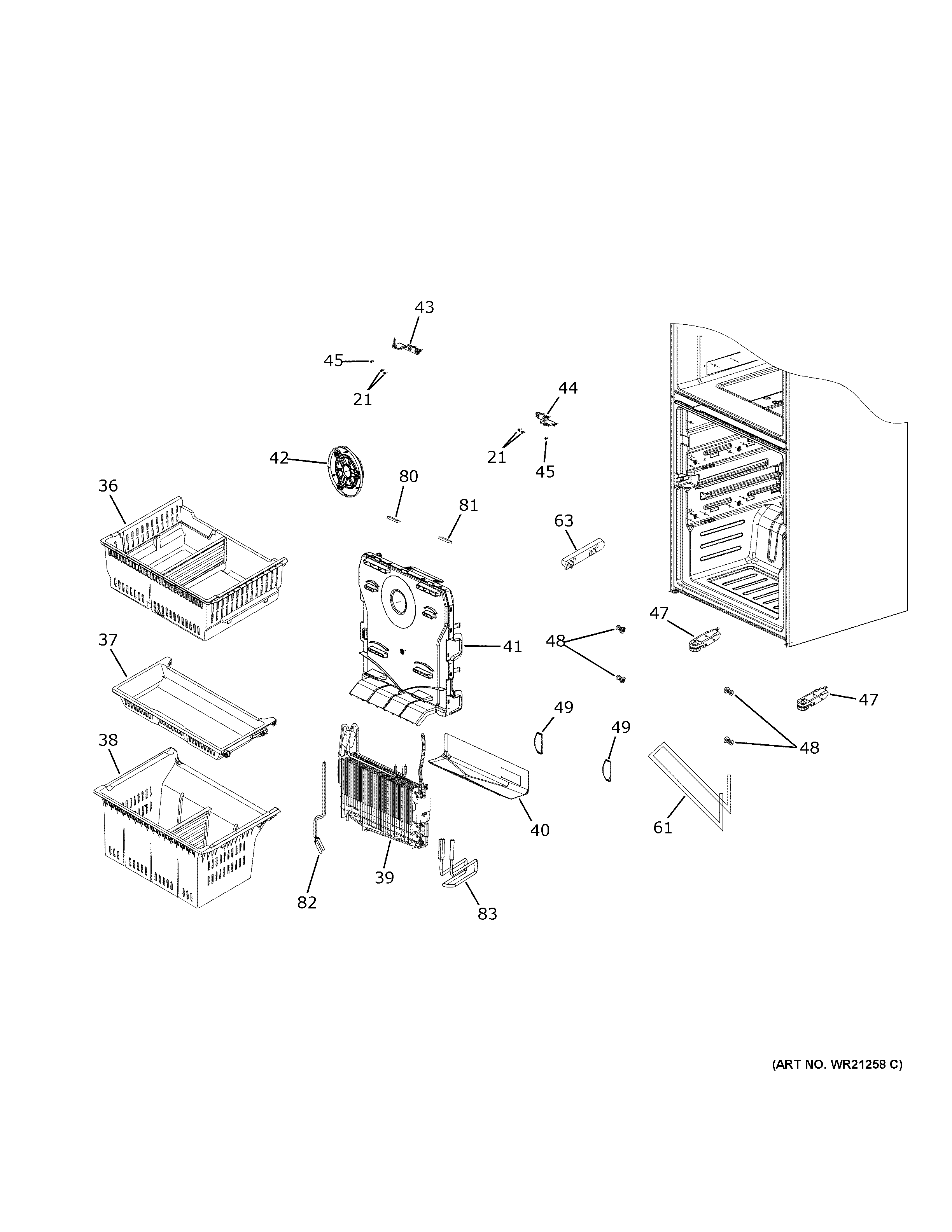

QJS15HYRCFS FREEZER SECTION

QJS15HYRCFS FREEZER SECTION

Written by

in

QJS15HYRCFS FREEZER SECTION

Products

PositionProduct
21WR01X28375 GE M5 x 16 Screw
36WR71X38391 GE Upper Basket
37FREEZER BASKET SHELF
38LOWER BASKET
39WR87X40051 GE Evaporator
40DRAIN TROUGH
41EVAPORATOR COVER
42WR60X38345 GE Refrigerator Evaporator Fan Motor
43MIDDLE HINGE – LEFT
44MIDDLE HINGE – RIGHT
45HINGE SCREW
47WR01X28530 GE Refrigerator Leveling Leg
48WR02X45725 GE Roller
49GROMMET
61DEFROST HEATER
63ICEMAKER SUPPORT
80WR55X28411 GE Refrigerator Freezer Sensor
81WR55X37108 GE Evaporator Thermistor
82GE APPLIANCES WR55X28412 DEFROST SENSOR
83WR55X30491 GE Refrigerator Defrost Harness
