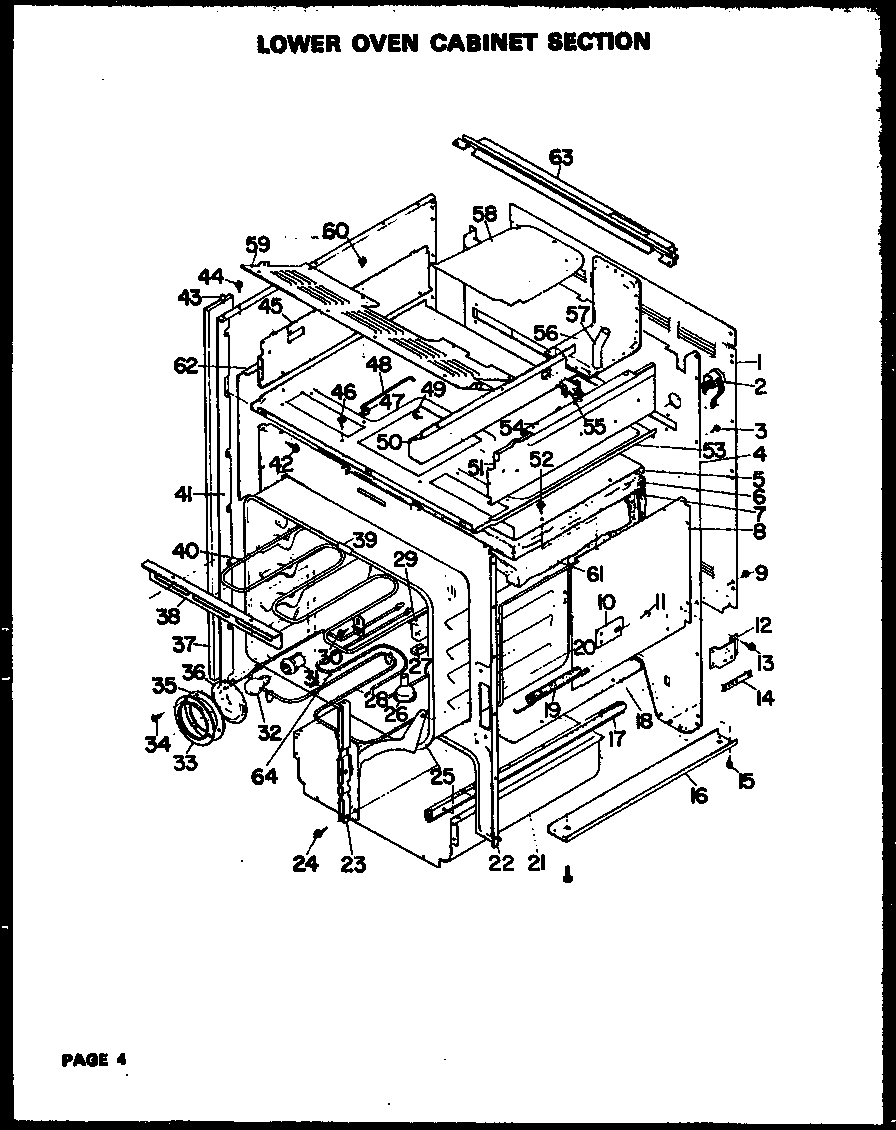

QMD-810 05 – LOWER OVEN CABINET SECTION

Products

Position	Product
	ORDER GRAPHICS PANEL FROM THE SOURCE WHERE THE DRYER WAS PURCHASED. INCLUDE THECOMPLETE MODEL AND SERIAL NUMBERS WITH ORDER.
NI	MAY Y0040777
NI	MAY 56-01-106
1	MAY Y0040778
2	MAY 77-09-020
4	MAY 16-09-093
5	MAY Y0040772
6	MAY 72-01-044
7	MAY 72-01-043
10	MAY Y0041017
12	MAY 44-01-670
14	MAY 44-01-671
16	MAY Y0041023
16	MAY 71-01-116
17	MAY 73-02-009
18	MAY Y0040774
19	MAY 78-03-018
20	MAY 74-06-176
21	MAY 12-04-068
23	MAY Y0047055
24	MAY 71-02-101
25	MAY Y0047051
26	MAY 74-09-024
27	MAY 44-01-680
28	MAY 74-06-186
29	MAY 44-01-678
30	MAY 71-02-102
31	MAY 74-08-063
32	MAY 74-07-003
33	MAY 44-01-645
35	MAY 72-03-084
36	MAY 79-02-197
37	MAY 77-04-315
37	MAY 77-04-314
38	MAY 44-01-642
39	MAY 20-06-196
40	MAY 74-06-185
41	MAY 16-02-170
43	MAY 72-04-016
45	MAY 24-01-112
50	MAY Y0048098
51	MAY 24-01-111
53	MAY 24-01-113
55	MAY 0045250
56	MAY Y0040587
58	MAY Y0040799
59	MAY Y0040776
60	MAY 71-02-088
61	MAY 72-01-042
62	MAY Y0040775
63	MAY 77-04-336
64	MAY 74-06-200
