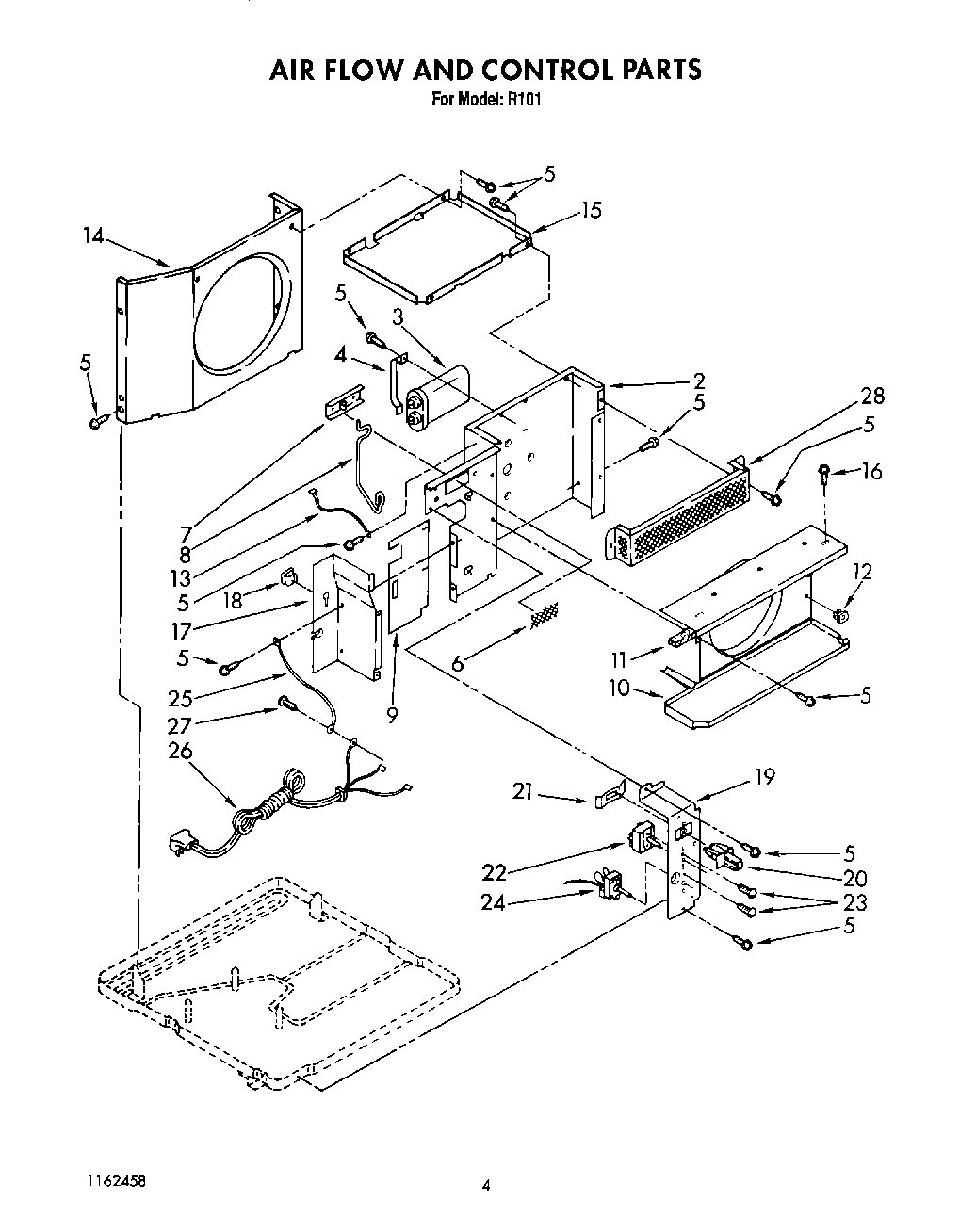

R101 03 – AIR FLOW AND CONTROL

Products

PositionProduct
2Wall, Dividing Also Order:
3Capacitor, Running
4Bracket, Capacitor
5WP489069 Whirlpool Compactor Screw
6Screen, Exhaust Door
7Door, Exhaust
8Arm, Door
9Insulation
10Shro\ud,\ Evaporator (Includes Item 11)
11Insulation, Evaporator Cover
12Fastener, snap (2)
13Wire, Ground
14Shroud, Condenser
15Support, Unit
16WP488729 Whirlpool Refrigerator Door Screw
17Extension, Dividing Wall (Requires Insulation Part No. 469938)
18Clip, Retainer
19Panel, Control
20Actuator, Door
21Spring, Retainer
22Switch, Rotary
23Screw, 6-32 x .175
24Control, Tempetature
25Wire, Ground
26Cable, Appliance
27WPW10141604 Whirlpool Screw
28Guard, Evaporator Impeller
