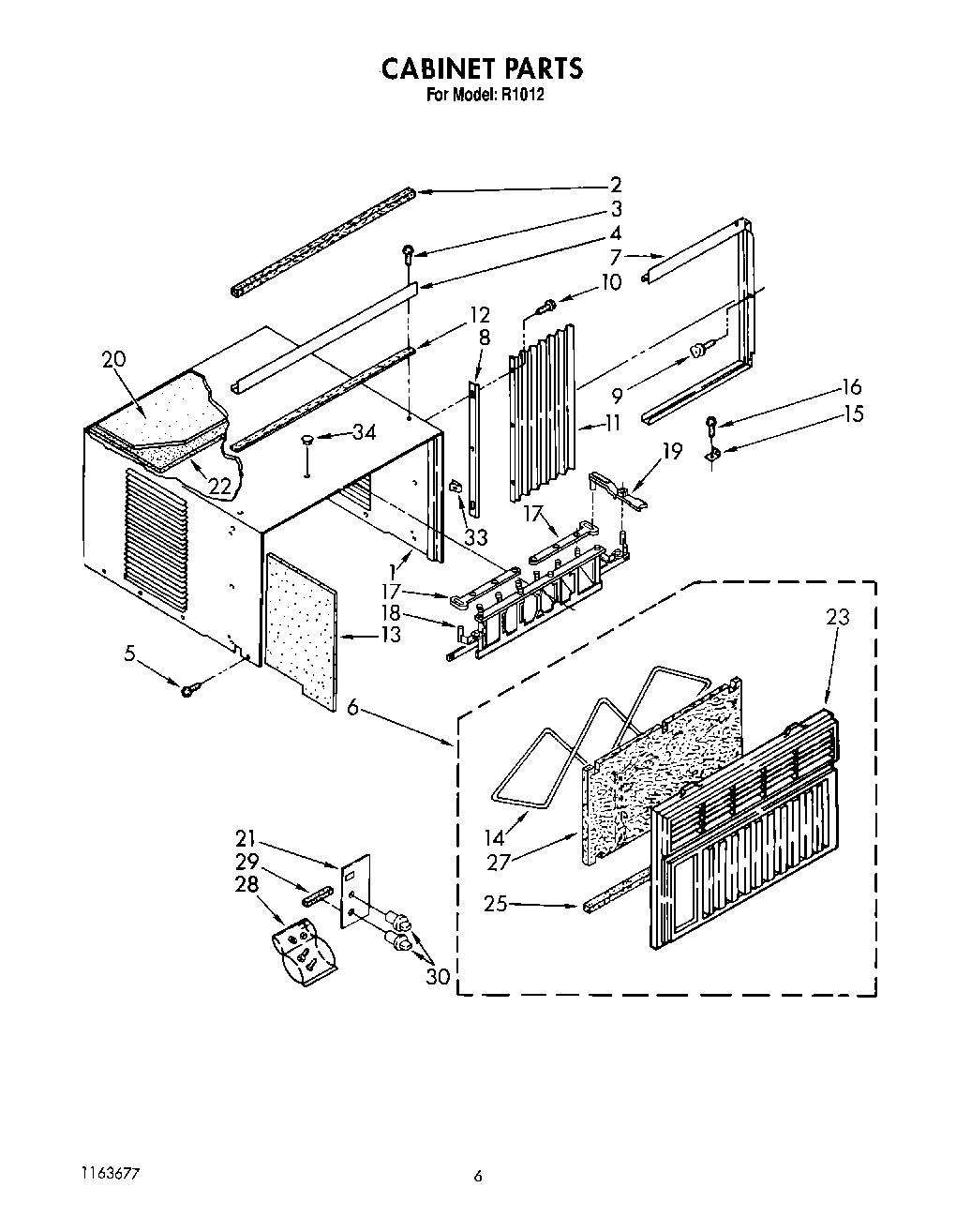

R1012 04 – CABINET

Products

PositionProduct
1Cabinet
2Gasket, Meeting Rail
3WP308685 Whirlpool Microwave Screw
4Channel, Top Mounting
5WP489069 Whirlpool Compactor Screw
6Front, Cabinet
7Housing, Curtain (R.S.)
7Housing, Curtain L.S.
8Retainer, Curtain
9Thumbscrew (2)
10Screw, 8-18 x 3/8
11Curtain (2)
12Strip, Seal
13Insul. Cabinet (Left Side)
13Insul. Cabinet (Right, Side)
14Retainer, Filter
15Bracket
16Screw, Wood 8-15 x .750
17Link, Vertical Louver (2)
18Louver, Vertical
19Handle, Vertical Louver (2)
20Insul. Cabinet
21Plate, Escutcheon
22Insul. Cabinet Top
23Front
25Seal, Front
25Seal, Top & Sides
27Filter
28Bag, Accessory
29Spacer, Escutcheon Plate (3)
30Knob, Control (2)
33Clip, Vertical Louver
34Cover, Hole
