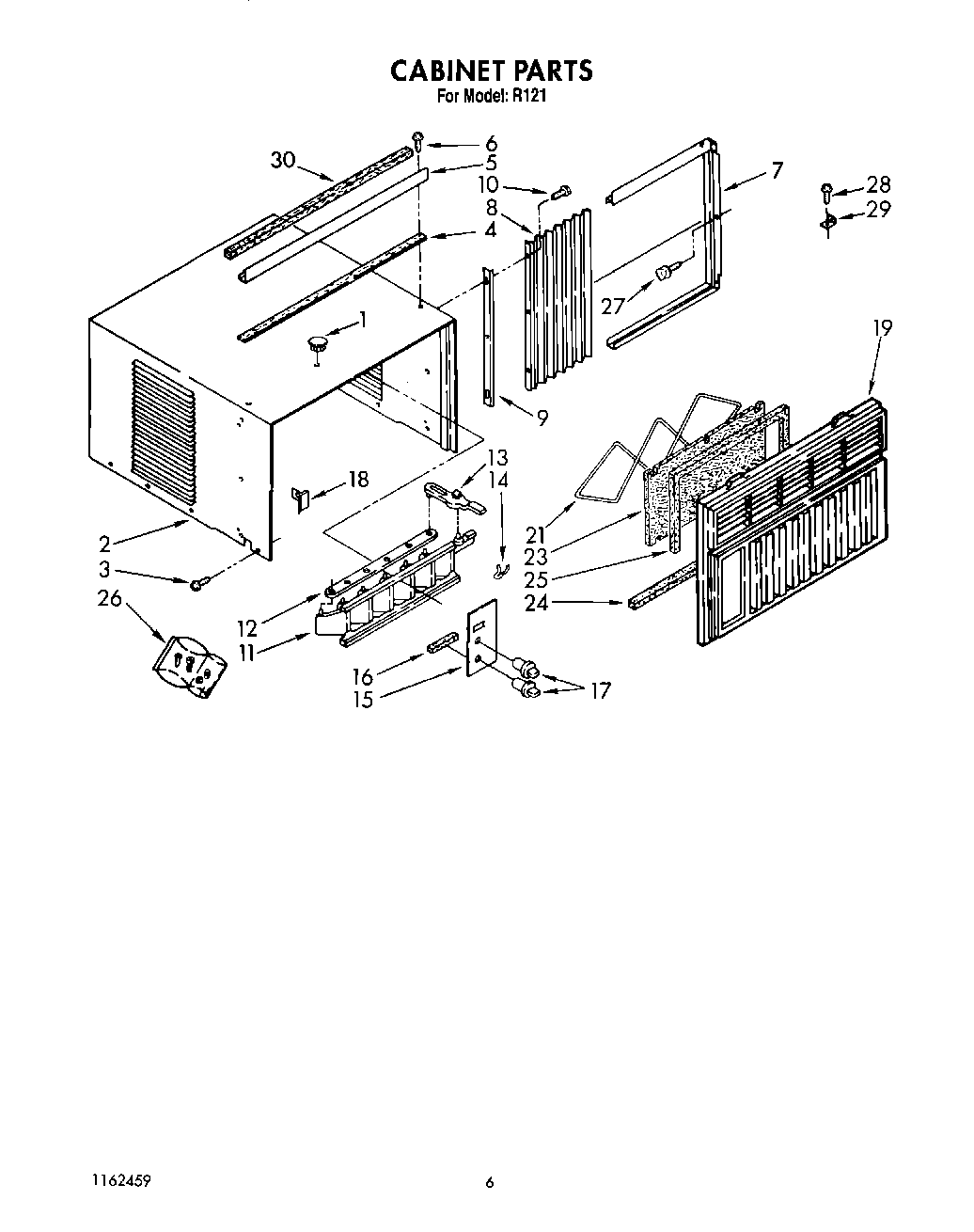

R121 04 – CABINET

Products

PositionProduct
1Cover, Hole
2Cabinet
3WP489069 Whirlpool Compactor Screw
4Strip, Seal
5Channel, Top Mounting
6WP308685 Whirlpool Microwave Screw
7Housing, Curtain (R.S.)
7Housing, Curtain L.S.
8Curtain (2)
9Retainer, Curtain
10Screw, 8-18 x 3/8
11Louver, Vertical
12Link, Louver
13Handle, Louver
14Detent Spring (2)
15Plate, Escutcheon
16Spacer, Escutcheon Plate (3)
17Knob, Control (3)
18Clip, Vertical Louver
19Front
21Retainer, Filter
23Filter
24Seal, Front
25Seal, Top & Sides
26Bag, Accessory
27Thumbscrew (2)
28Screw, Wood 8-15 x .750
29Bracket
30Gasket, Meeting Rail
