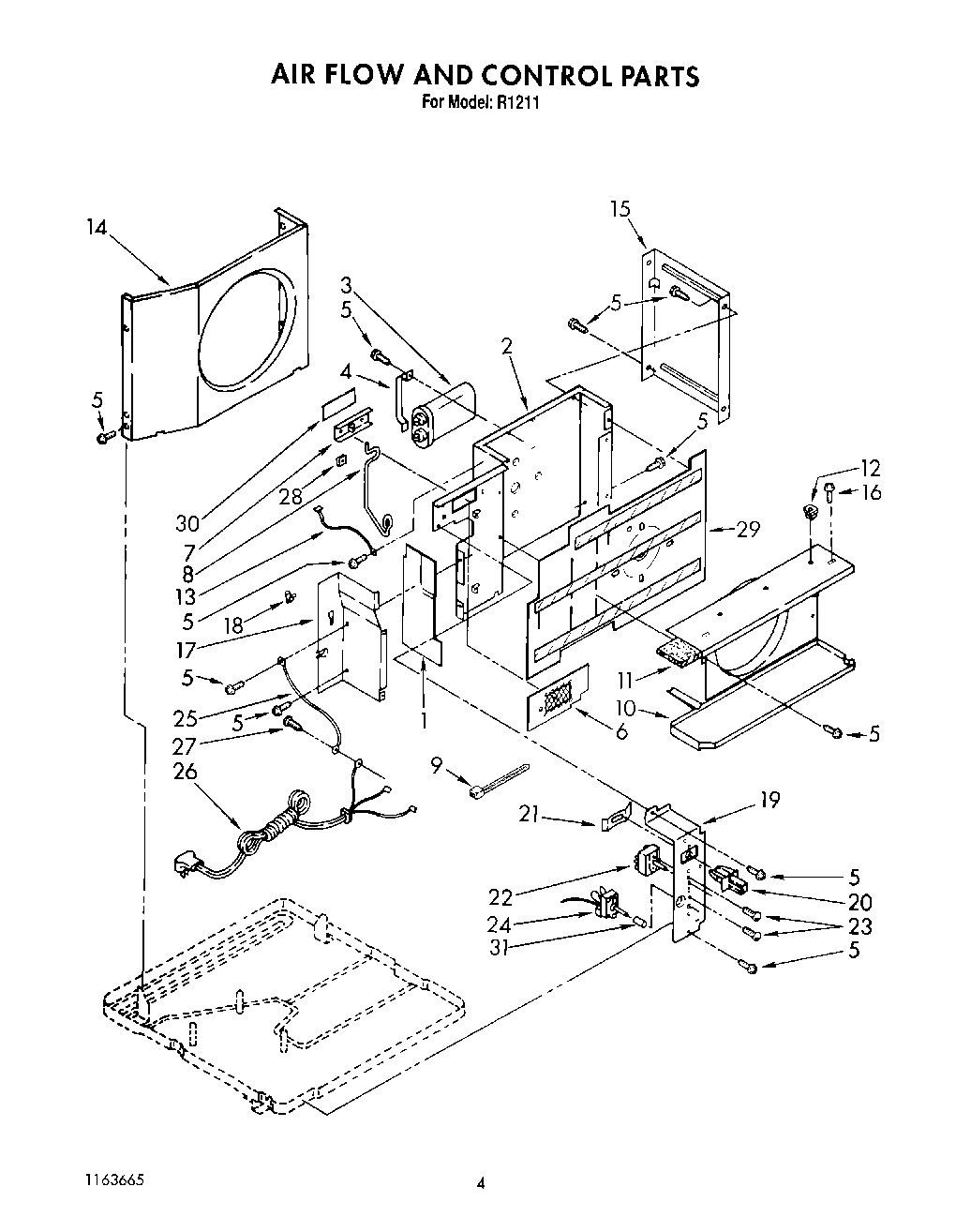

R1211 03 – AIRFLOW AND CONTROLadmin2025-04-26T12:48:31+00:00R1211 03 – AIRFLOW AND CONTROL
Products
| Position | Product |
|---|
| 1 | Insulation, Dividing Wall |
| 2 | Wall, Dividing Also Order: |
| 3 | Capacitor, Running |
| 4 | Bracket, Capacitor |
| 5 | WP489069 Whirlpool Compactor Screw |
| 5 | Screw, Repair |
| 6 | Screen, Insulation Assembly |
| 7 | Door, Exhaust |
| 8 | Arm, Door |
| 9 | WPW10339879 Whirlpool Wire Tie |
| 10 | Shro\ud,\ Evaporator (Includes Item 11) |
| 11 | Insulation, Evaporator Cover |
| 12 | Fastener, snap (2) |
| 13 | Wire, Ground |
| 14 | Shroud, Condenser |
| 15 | Support, Unit |
| 16 | WP488729 Whirlpool Refrigerator Door Screw |
| 17 | Extension, Dividing Wall (Requires Insulation Part No. 469938) |
| 18 | Clip, Retainer |
| 19 | Panel, Control |
| 20 | Actuator, Door |
| 21 | Spring, Retainer |
| 22 | Switch, Rotary |
| 23 | Screw, 6-32 x .175 |
| 24 | Control, Tempetature |
| 25 | Wire, Ground |
| 26 | Cable, Appliance |
| 27 | WPW10141604 Whirlpool Screw |
| 28 | Clip, Exhaust Door Linkage |
| 29 | Insulation Dividing Wall |
| 30 | Spacer |
| 31 | Insulation, Sleeve |
