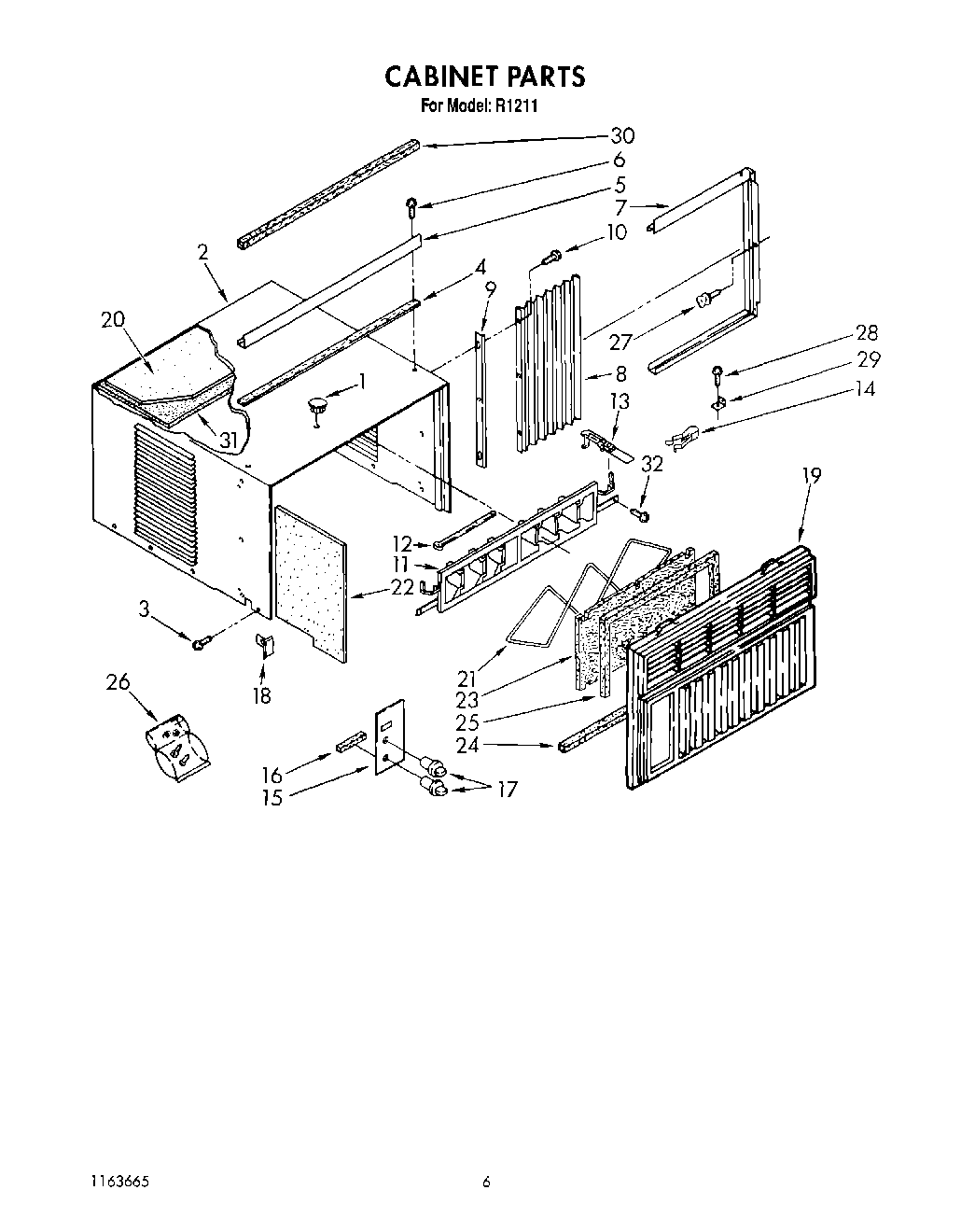

R1211 04 – CABINET

Products

Position	Product
1	Cover, Hole
2	Cabinet
3	WP489069 Whirlpool Compactor Screw
4	Strip, Seal
5	Channel, Top Mounting
6	WP308685 Whirlpool Microwave Screw
7	Housing, Curtain L.S.
7	Housing, Curtain (R.S.)
8	Curtain (2)
9	Retainer, Curtain
10	Screw, 8-18 x 3/8
11	Louver, Vertical
12	Link, Vertical Louver (2)
13	Handle, Vertical Louver (2)
14	Spring, Detent (2)
15	Plate, Escutcheon
16	Spacer, Escutcheon Plate (3)
17	Knob, Control (2)
18	Clip, Vertical Louver
19	Front
20	Insul. Cabinet Top
21	Retainer, Filter
22	Insul. Cabinet (Right, Side)
22	Insul. Cabinet (Left Side)
23	Filter
24	Seal, Front
25	Seal, Top & Sides
26	Bag, Accessory
27	Thumbscrew (2)
28	Screw, Wood 8-15 x .750
29	Bracket
30	Gasket, Meeting Rail
31	Insul. Cabinet
32	Screw 8-18 x .295
