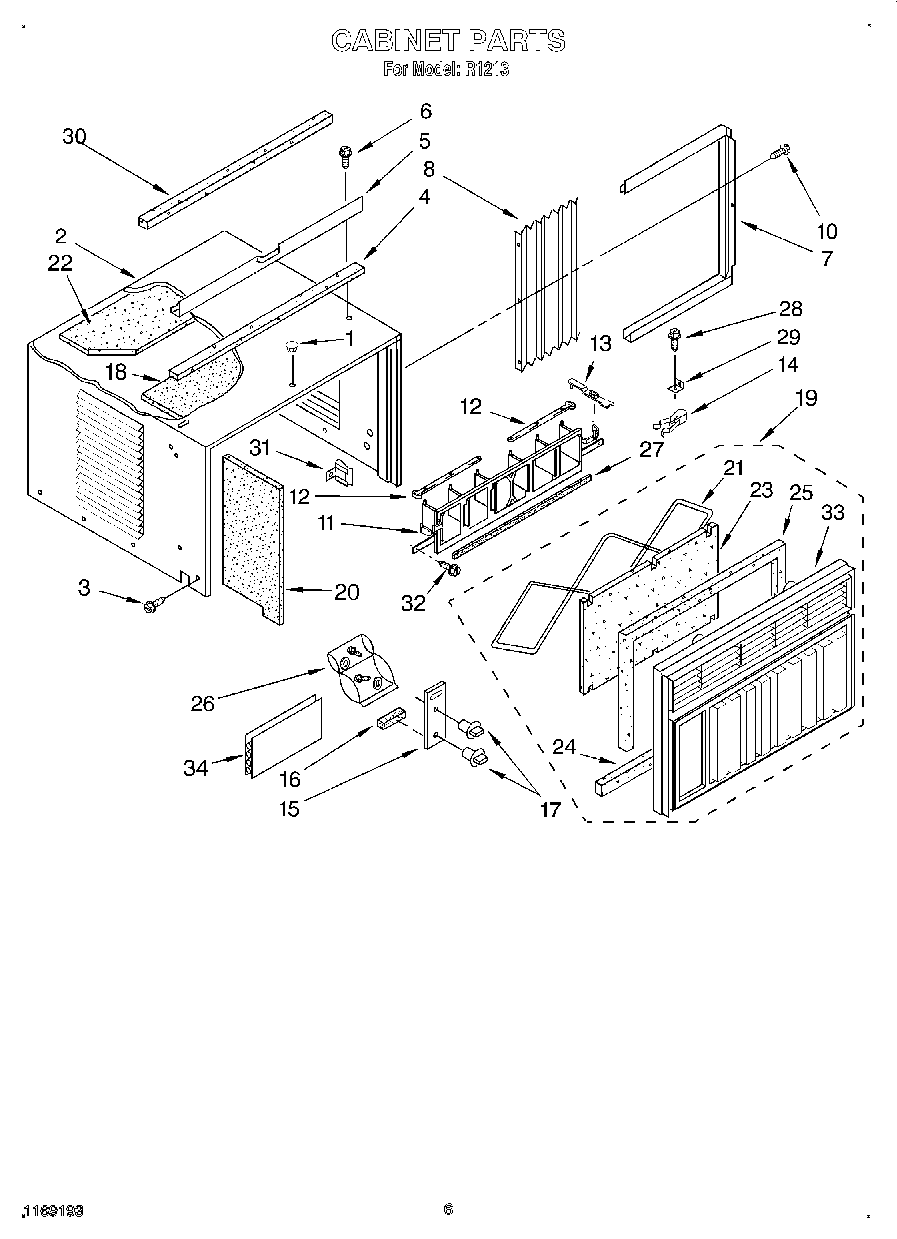

R1213 04 – CABINET

Products

PositionProduct
1Cover, Hole
2Cabinet
3WP489069 Whirlpool Compactor Screw
4Strip, Seal
5Channel, Top
6WP308685 Whirlpool Microwave Screw
7Housing, Curtain L.S. (Includes No.8)
7Housing, Curtain R.S.(Includes No.8)
8Curtain (2)
10Screw, 8-18 x 3/8
11Louver, Vertical (Includes Illus. 12, 13, 14 and 27)
12Link, Vertical Louver (2)
13Handle, Vertical Louver (2)
14Spring, Detent (2)
15Plate, Escutcheon
16Spacer, Escutcheon Plate (3)
17Knob, Control (2)
18Insul. Cabinet Top
19Front, Cabinet
20Insul. Cabinet (Left Side)
20Insul. Cabinet (Right, Side)
21Retainer, Filter
22Insul. Cabinet
23Filter
24Seal, Front
25Seal, Top & Sides
26Bag, Accessory
27Seal, Vertical Louver
28Screw, Wood 8-15 x .750
29Bracket
30Gasket, Meeting Rail
31Clip, Vertical Louver
32Screw 8-18 x .295
33Front
34212643 Whirlpool Refrigerator Permagum Sealer
