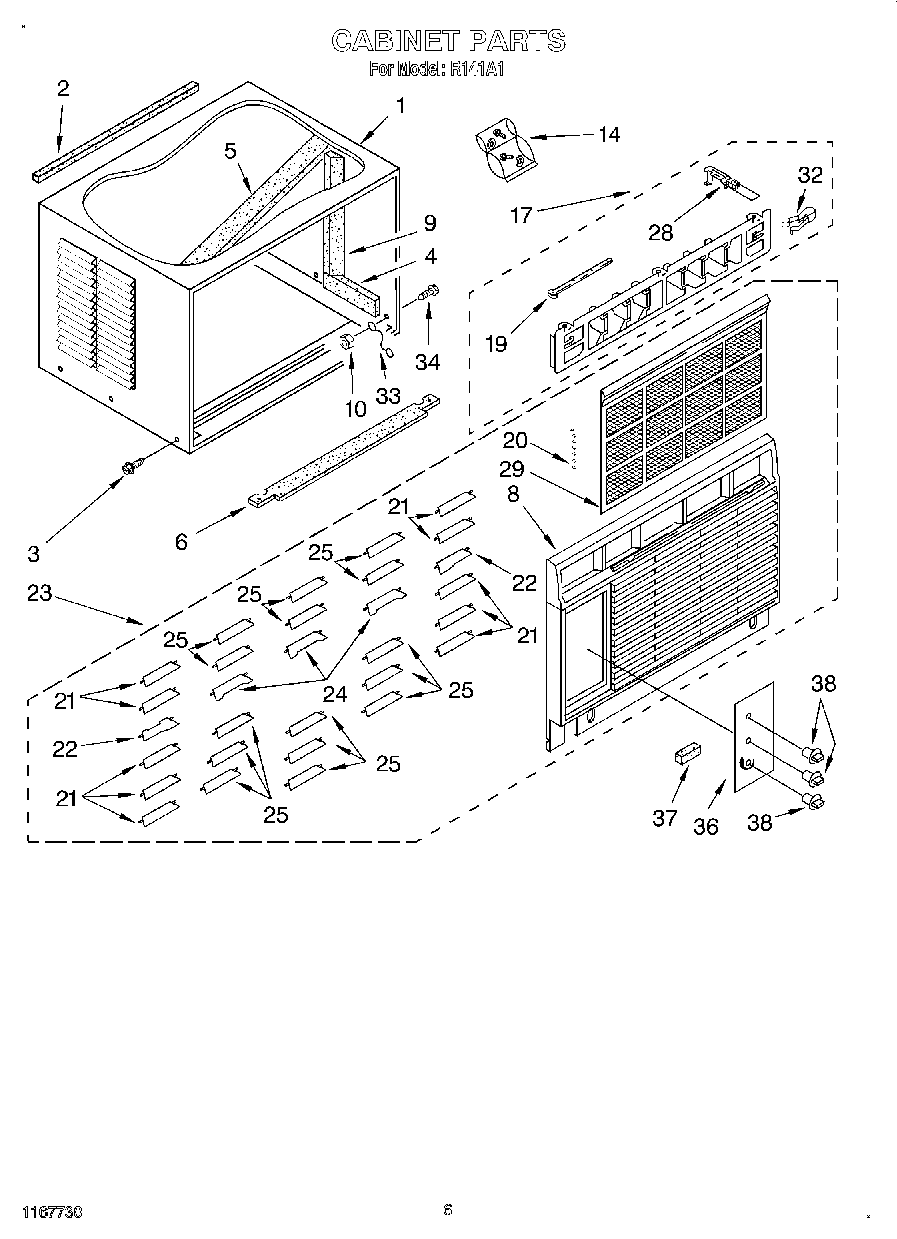

R141A1 04 – CABINET

Products

Position	Product
1	Cabinet (Includes Insulation)
2	Seal, Top Mounting Angle
3	WP489069 Whirlpool Compactor Screw
4	Insulation, Cabinet Side (2)
5	Insulation, Cabinet (Top)
6	Seal
8	Cabinet Front
9	Insulation, Cabinet Side (2)
10	WP486255 Whirlpool Air Conditioner Nut
14	Bag, Accessory
17	Louver, Verticle
19	Link, Vertical Louver (2)
20	Link, Horizontal Louver (5)
21	Louver, Horizontal (10)
22	Horzontal Louver W/ Handle (2)
23	Front, Complete
24	Louver, Horizontal W/Handles (3)
25	Louver, Horizontal (15)
28	Louver, Actuator
29	Filter
32	Spring, Detent
33	Wire, Ground
34	WP488234 Whirlpool Air Conditioner Screw
36	Plate, Escutcheon
37	Spacer, Escutcheon Plate (3)
38	Knobs, (3)
