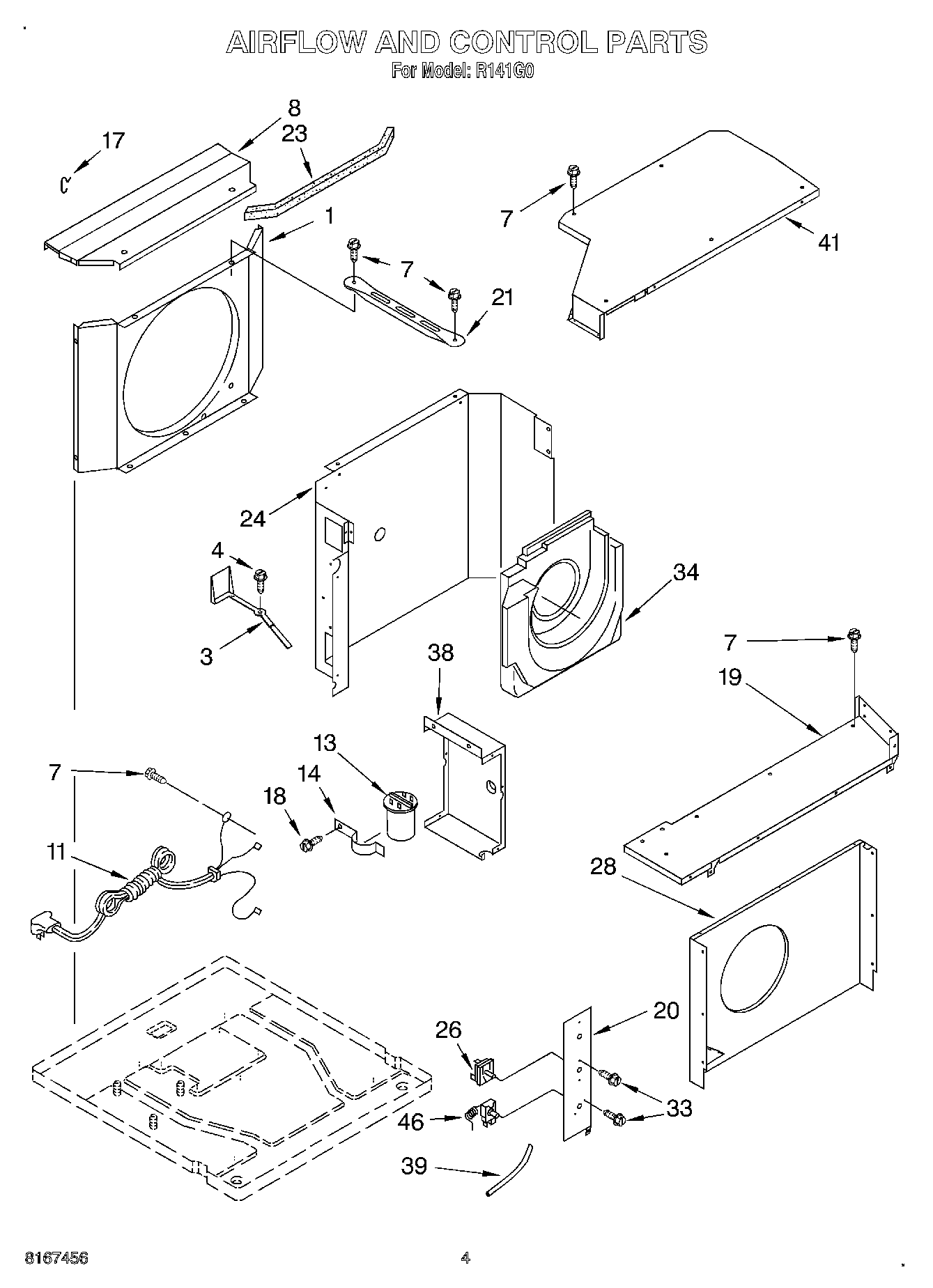

R141G0 03 – AIR FLOW AND CONTROL

Products

PositionProduct
1Shroud, Condenser
3Door, Exhaust
4Screw, 8-18 x .437
8Top, Condenser
11Cable, Appliance
13CAPACITOR
14Bracket, Capacitor
17Clip, Shroud (2)
18WP489069 Whirlpool Compactor Screw
19Top, Evaporator Shroud
20Panel, Control
21Support, Unit (2)
23Seal, Shroud
24Dividing Wall
26Switch, Rotary
28Shroud Assembly, Evaporator
33Screw, 6-32 x .175
34Housing, Air
38Control Box (R.S.)
39Sleeve, Insulating
41Cover, Top
46Control, Temperature
