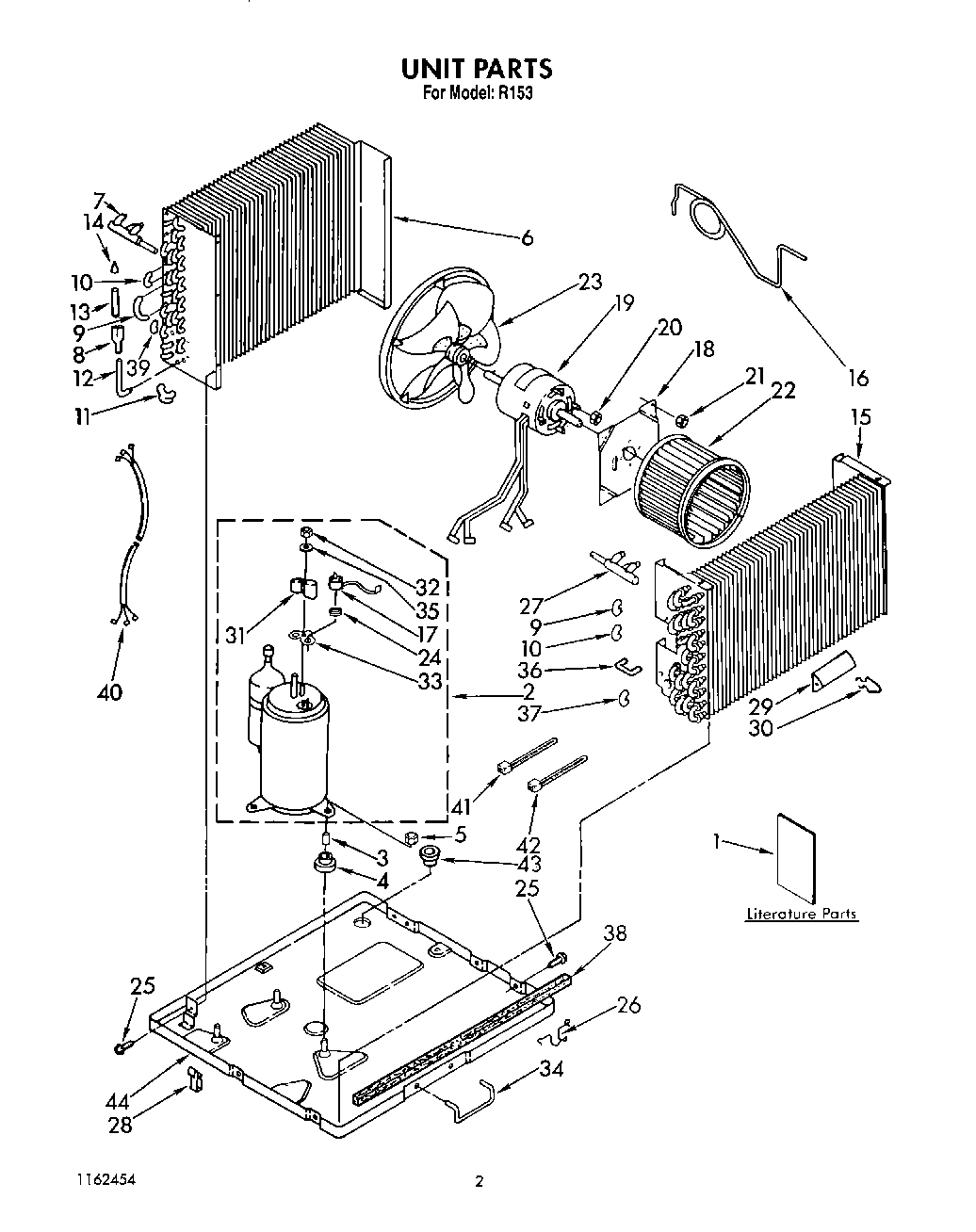

R153 02 – UNIT, LIT/OPTIONALadmin2025-04-26T12:48:34+00:00R153 02 – UNIT, LIT/OPTIONAL
Products
| Position | Product |
|---|
| 1 | List, Repair Parts |
| 1 | Sheet, Tech |
| 1 | Instructions, Installation |
| 1 | Literature Parts (Diagram, Wiring) |
| 1 | Guide, Operating |
| 2 | Compressor |
| 3 | Sleeve (3) |
| 4 | WP950021 Whirlpool Grommet |
| 5 | Locknut (3) |
| 6 | Condenser |
| 7 | Tube, Manifold |
| 8 | Tube, Flow Divider |
| 9 | Bend, Return Condenser (10) |
| 10 | Bend, Return Condenser (4) |
| 11 | Bend, 3-Way |
| 12 | Tube, Connecting |
| 13 | Tube, Outlet (Includes Illus. 4) |
| 14 | Strainer |
| 15 | Evaporator |
| 16 | Tube Restrictor (3) (Length 46.0``) |
| 17 | WP1161170 Whirlpool Air Conditioner Overload |
| 18 | WPL 998024 |
| 19 | Motor, Fan |
| 20 | WP488130 Whirlpool Air Conditioner Nut |
| 21 | Nut, Hex (4) |
| 22 | Wheel, Blower |
| 23 | Blade, Fan |
| 24 | Spring, Overload |
| 25 | WP489069 Whirlpool Compactor Screw |
| 26 | Clip, Mtg. (3) |
| 27 | Tube, Manifold |
| 28 | Clamp, Restrictor Tube |
| 29 | Anticipator |
| 30 | Clip (2) |
| 31 | WP950036 Whirlpool Cover Assembly |
| 32 | WP950027 Whirlpool Mounting Nut |
| 33 | WP950035 Whirlpool Cover Gasket |
| 34 | WPL 647971 |
| 35 | Gasket, Nut |
| 36 | Bend, Return Condenser (1) |
| 37 | Tube, Riser |
| 38 | Insulation, Base |
| 39 | Tube, Riser (2) |
| 40 | Harness, Wiring |
| 41 | WPW10339879 Whirlpool Wire Tie |
| 43 | Bushing, Base |
| 44 | Base |
