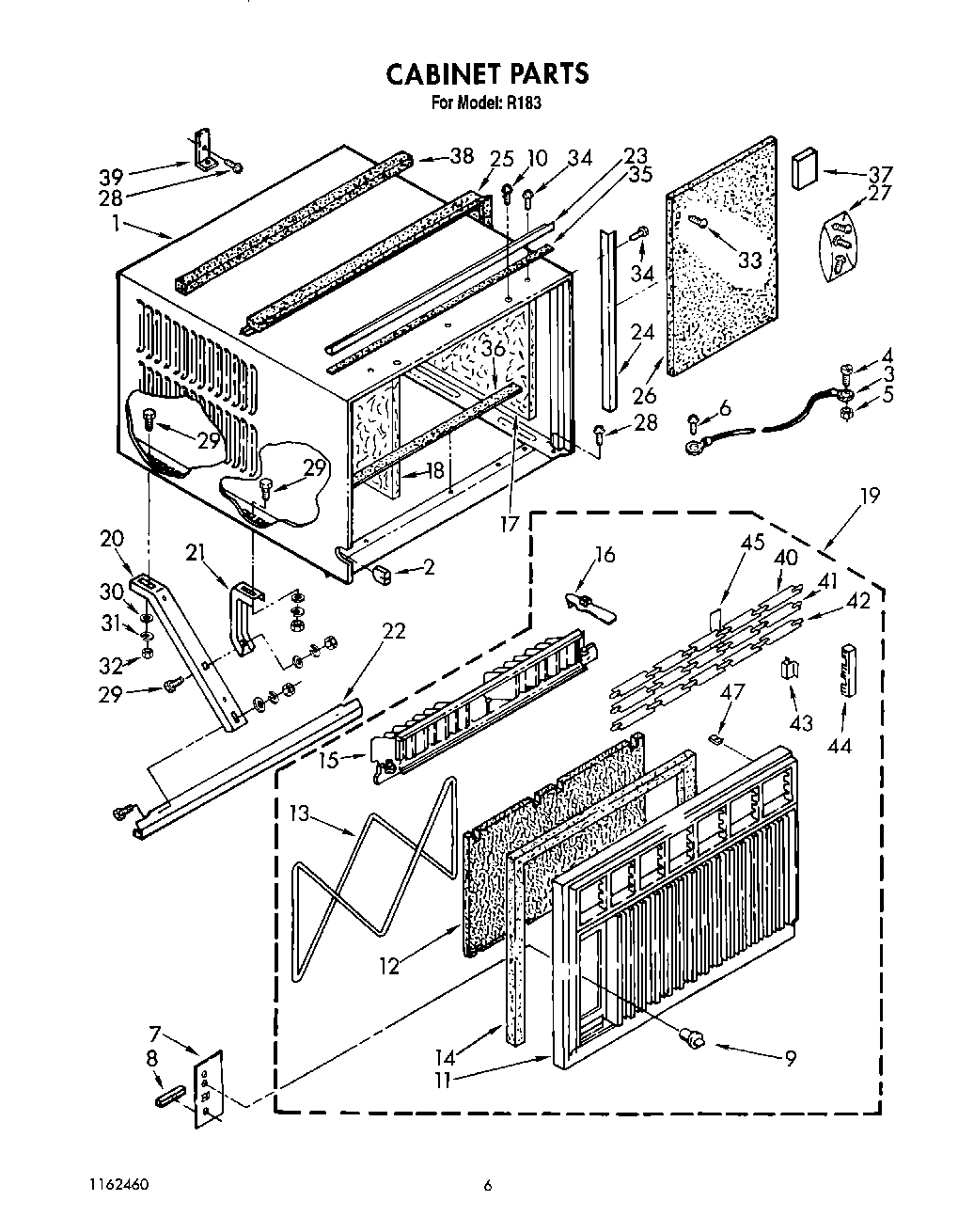

R183 04 – CABINET

R183 04 – CABINET

Written by

in

R183 04 – CABINET

Products

PositionProduct
1Cabinet
1Insulation Cabinet
2Grommet, Appliance Cable
3Wire, Ground
4Screw, 8 x 3/8
5WP486255 Whirlpool Air Conditioner Nut
6Screw, 8 x 3/8
7Plate, Escutcheon
8Spacer, Escutcheon Plate (2)
9Knob, Control (3)
10Screw (2)
11Front, Cabinet
12Filter, Air
13Retainer, Filter
14Seal, Front (Bottom)
14Seal, Front (Top & Sides)
15Louver, Vertical
16louver, horizontal (handle)
17Cabinet Insulation (Right Side)
18Cabinet Insulation (Left Side)
19Front, Cabinet (Assembly)
20Support, Cabinet (2)
21Support, Retainer (2)
22Bracket, Support
23Angle, Top Mounting
24Angle (2)
25Gasket, Sash
26Board, Filler
27Bag, Accessory
28Screw (Window Lock Bracket)
29Bolt, 1/4 x 3/4 (6)
30WP120393 Whirlpool Washer Assembly
31Lockwasher (6)
32Nut, Hex (6)
33WP965173 Whirlpool Dishwasher Screw
34WP308685 Whirlpool Microwave Screw
35Strip, Seal
36Seal, Bottom
37Spacer, Block (4)
38Gasket, Meeting Rail
39Bracket
40Louver, Horizontal (4)
41Louver, Horizontal (Relieved)
42Louver, Horizontal (Handle)
43Clip, Retainer (4)
44Rack, Louver (2)
45Retainer (4)
47Clip, Cabinet Front (2)
