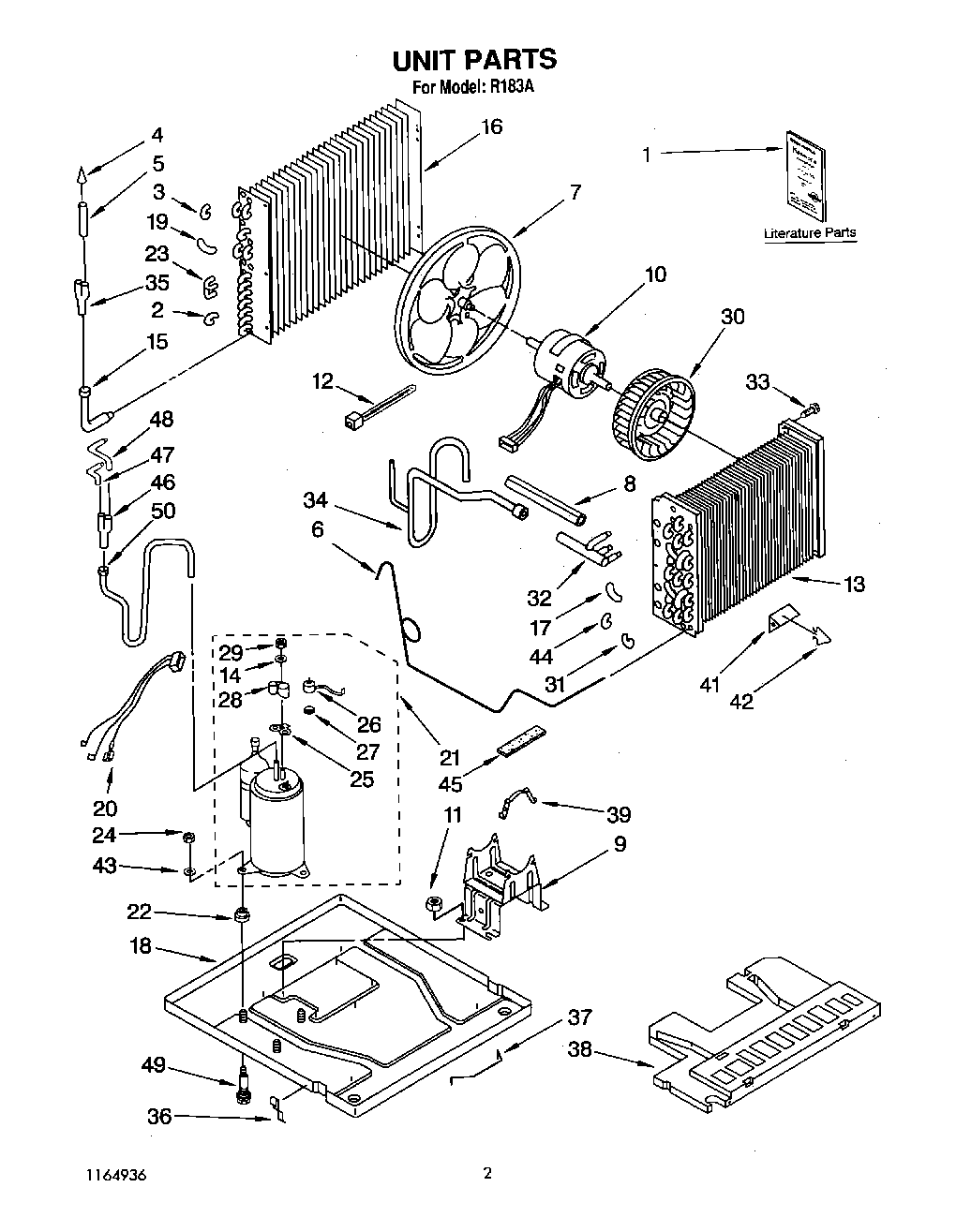

R183A 02 – UNIT, LITERATUREadmin2025-04-26T12:46:34+00:00R183A 02 – UNIT, LITERATURE
Products
| Position | Product |
|---|
| 1 | Wiring Diagram |
| 1 | Tech Sheet |
| 1 | List, Repair Parts |
| 1 | Owners Manual |
| 2 | Bend, Return Condenser (10) |
| 3 | Bend, Return Condenser (4) |
| 4 | Strainer |
| 5 | Tube, Outlet (Includes Illus. 4) |
| 6 | Tube, Restrictor (3) |
| 7 | Blade, Fan (Condenser) |
| 8 | Seal, Suction Tube |
| 9 | Bracket, Fan Motor |
| 10 | Motor, Fan |
| 11 | WP488130 Whirlpool Air Conditioner Nut |
| 12 | WPW10339879 Whirlpool Wire Tie |
| 13 | Evaporator |
| 14 | Gasket, Nut |
| 15 | Tube, Connecting |
| 16 | Condenser |
| 17 | Bend, Return Evaporator (4) |
| 18 | Base |
| 19 | Bend, Return Condenser (1) |
| 20 | Harness, Wiring (Compressor Service) |
| 21 | Compressor |
| 22 | WP950021 Whirlpool Grommet |
| 23 | Bend, Return (3-Way) |
| 24 | Locknut (3) |
| 25 | WP950035 Whirlpool Cover Gasket |
| 26 | WP1161170 Whirlpool Air Conditioner Overload |
| 27 | Spring, Overload |
| 28 | WP950036 Whirlpool Cover Assembly |
| 29 | WP950027 Whirlpool Mounting Nut |
| 30 | Wheel, Blower |
| 31 | Bend, Return Evaporator (11) |
| 32 | Manifold, Suction |
| 33 | WP489069 Whirlpool Compactor Screw |
| 34 | Tube, Suction |
| 35 | Tube, Flow Divider |
| 36 | Clamp (2) |
| 37 | WPL 647971 |
| 38 | Pan, Drain |
| 39 | WPY015825 Whirlpool Motor Clip |
| 41 | Anticipator |
| 42 | Clip, Anticipator |
| 43 | W11236646 Whirlpool Washer Assembly |
| 44 | Bend, Return Evaporator (4) |
| 45 | Seal, Restrictor Tube |
| 46 | Tube, Flow Divider |
| 47 | Tube, Feeder |
| 48 | Tube, Feeder |
| 49 | Bolt, Compressor |
| 50 | Tube, Discharge |
