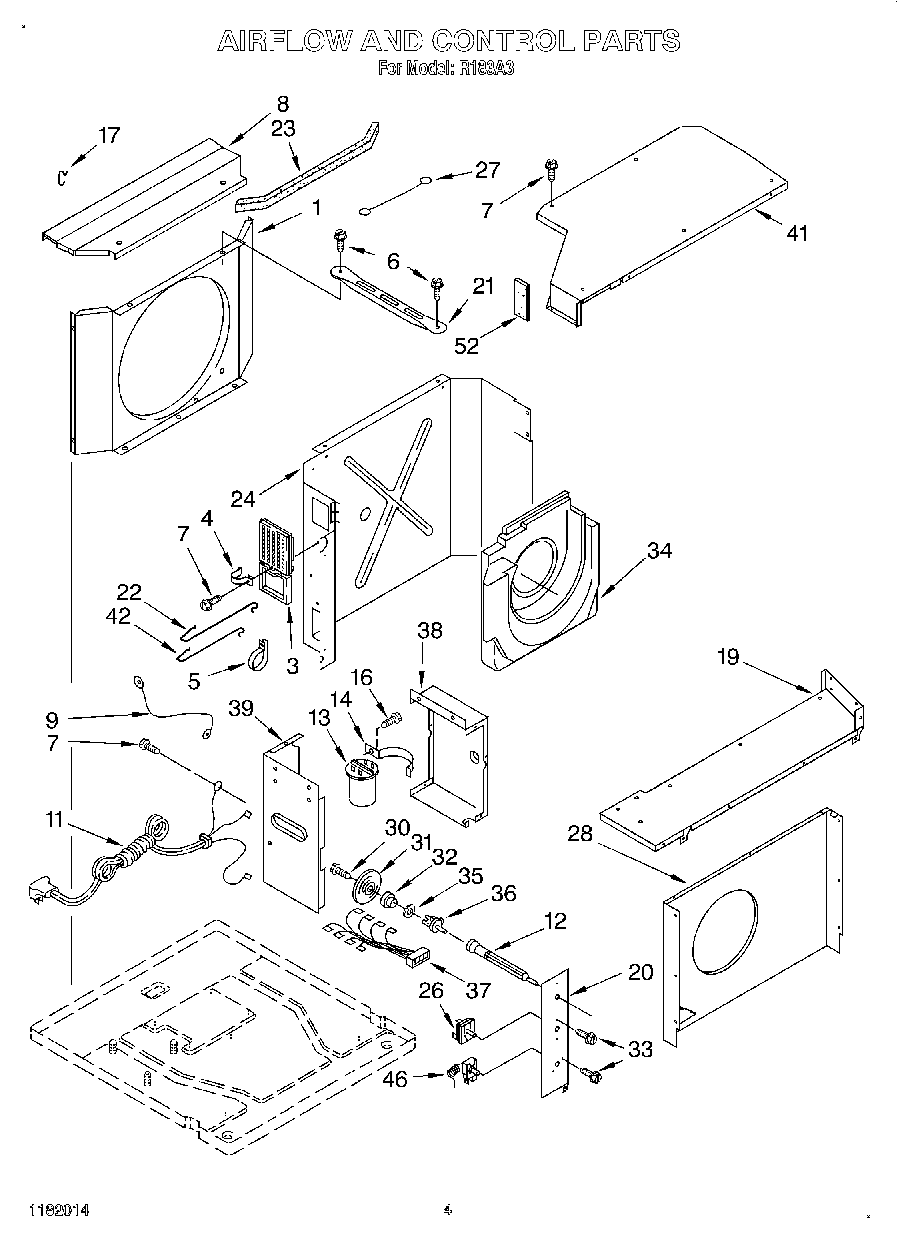

R183A3 03 – AIR FLOW AND CONTROL

Products

PositionProduct
1Shroud, Condenser
3Door, Air (2)
4Spring, Door (2)
5Clamp, Wiring
6WP308685 Whirlpool Microwave Screw
7WP489069 Whirlpool Compactor Screw
8Top, Condenser
9Wire, Ground
11Cord, Appliance
12Control, Shaft
13Capacitor, Running
14Bracket, Capacitor
16WP488787 Whirlpool Refrigerator Screw
17Clip, Shroud (2)
19Top, Evaporator Shroud
20Panel, Control
21Support, Unit (2)
22Wire, Control Fresh Air
23Seal, Shroud
24Dividing Wall
26Switch, Rotary
27Wire, Thermostat To Switch
28Shroud Assembly, Evaporator
30Screw, 7-18 x 5/8
31Cam, Exhaust
32Bushing, Shaft
33Screw, 6-32 x .175
34Housing, Air
35Washer
36Shaft, Control Exhaust
37Harness, Wiring – Control Box
38Control Box (R.S.)
39Control Box (L.S.)
41Cover, Top
42Wire, Control Exhaust
46Control, Temperature
52Seal, Anti-Rub
