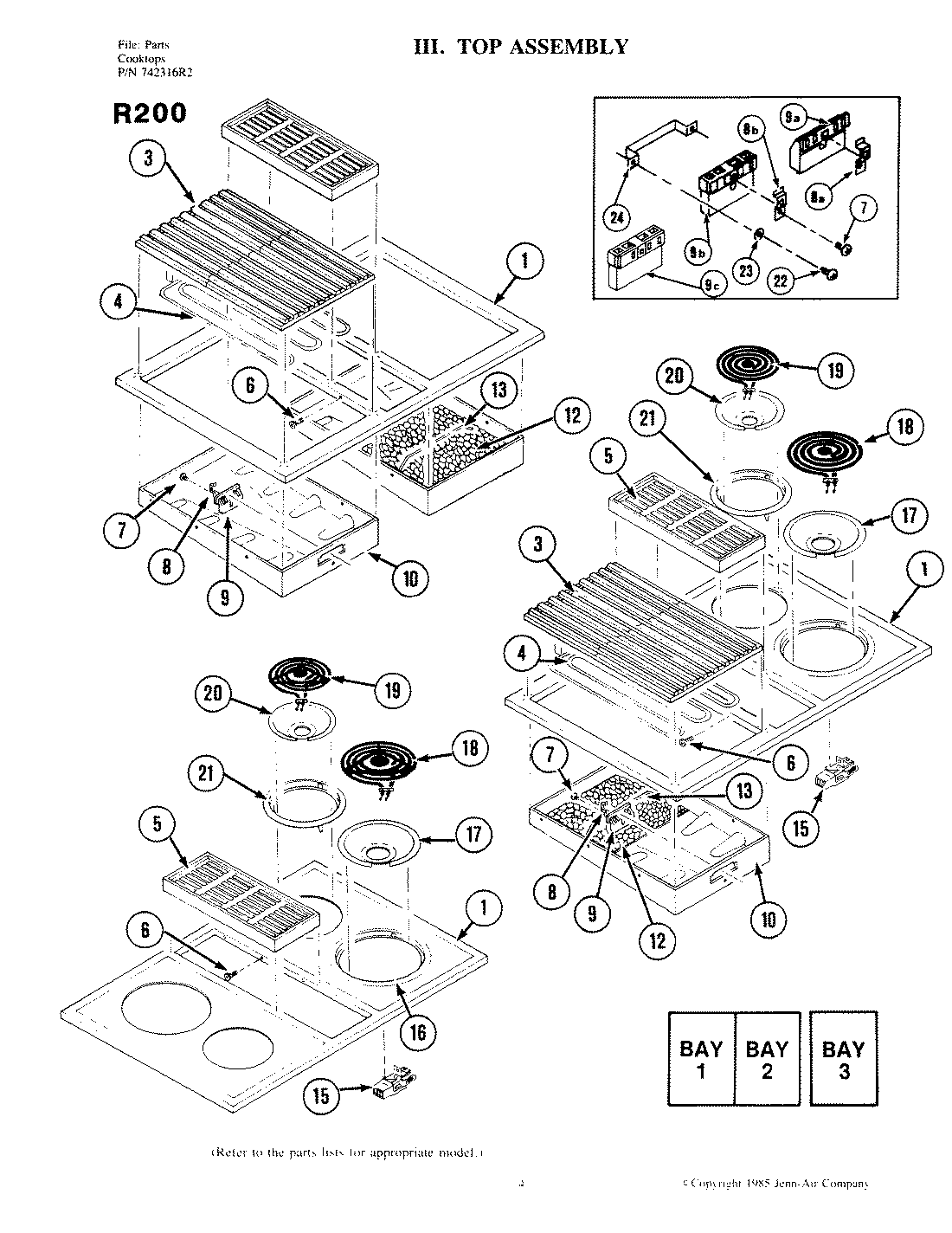

R200 04 – TOP ASSEMBLY

Written by

Products

Position	Product
1	MAY 701841
5	MAY 700667
15	MAY 700154
16	WPY707453 Whirlpool Range 8" Chrome Adaptor Ring
17	715878 Whirlpool Range 8" Chrome Drip Pan
18	MAY 715928
19	MAY 715927
20	715877 Whirlpool Electric Range 6" Chrome Drip Pan
21	WPY707454 Whirlpool Range Chrome 6" Adaptor Ring
23	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
