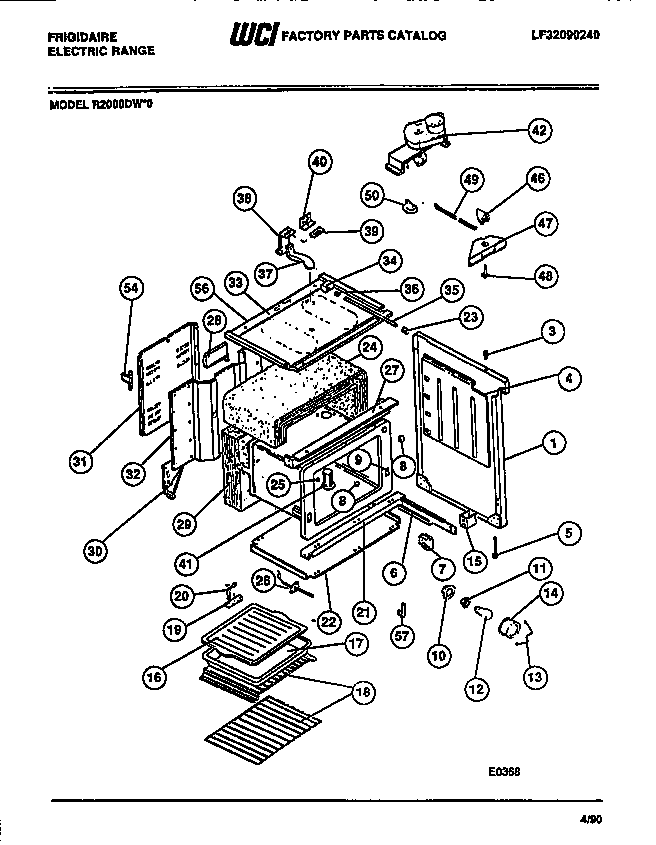

R2000DL0 06 – OVEN LINER, SIDE PANELS

R2000DL0 06 – OVEN LINER, SIDE PANELS

Written by

in

R2000DL0 06 – OVEN LINER, SIDE PANELS

Products

PositionProduct
1CSIDE PANEL LH-ALMD
1BSIDE PANEL RH-ALMD
3BUMPER, COOKTOP (4)
4RETAINER, INSULATION (2)
5LEG, LEVELLER (4)
6WCI 5308015746
6ARAIL, DRAWER LH
7GUIDE-DRAWER FRNT (2)
8BUTTON-PLUG
9WCI 3205272
10WCI 3051511
11316116400 Frigidaire Oven Light Socket
12316538904 Frigidaire Oven Lamp Light
13RETAINER-LENS
145304524341 Frigidaire Lens
15SPACER, DRAWER RAIL (2)
16WCI 3205234
17WCI 3205232
18316067902 Frigidaire Oven Rack
195304409888 Frigidaire Oven Terminal Block with Hardware
20PLATE=GROUND STRAP
21CHANNEL – OVEN SUPPORT LOWER
22WCI 08015969
23WCI 3051251
25PLUG BUTTON – THERMO BULB HOLE
26WCI 5303209695
27CHANNEL, OVEN SUPPORT UPPER
28WCI 3051634
29INSULATION
30AWCI 3017482
30WCI 3017481
31WIRE, COVER
32WCI 3205259
33WCI K005025704
34SWITCH, DOOR
35ROD-SWITCH
36WCI 08007444
37WCI 3051655
38BRACKET, VENT TUBE
39GASKET, OVEN VENT TUBE
40BRACKET-DOOR SW
41TUBE-OVEN VENT
42WCI 5303016242
46WCI 3202387
47HOUSING-DOOR LATCH
48AXLE – HINGE (2)
49WCI 3051649
50WCI 3202430
54BALLAST-LAMP (NON-ILLUSTRATED)
56WCI 3205257
57WCI 3051810
57CBRKT – THERMO BULB
57AWCI 3203574
57BANTI-TIP KIT, (NON-ILLUSTRATED)
