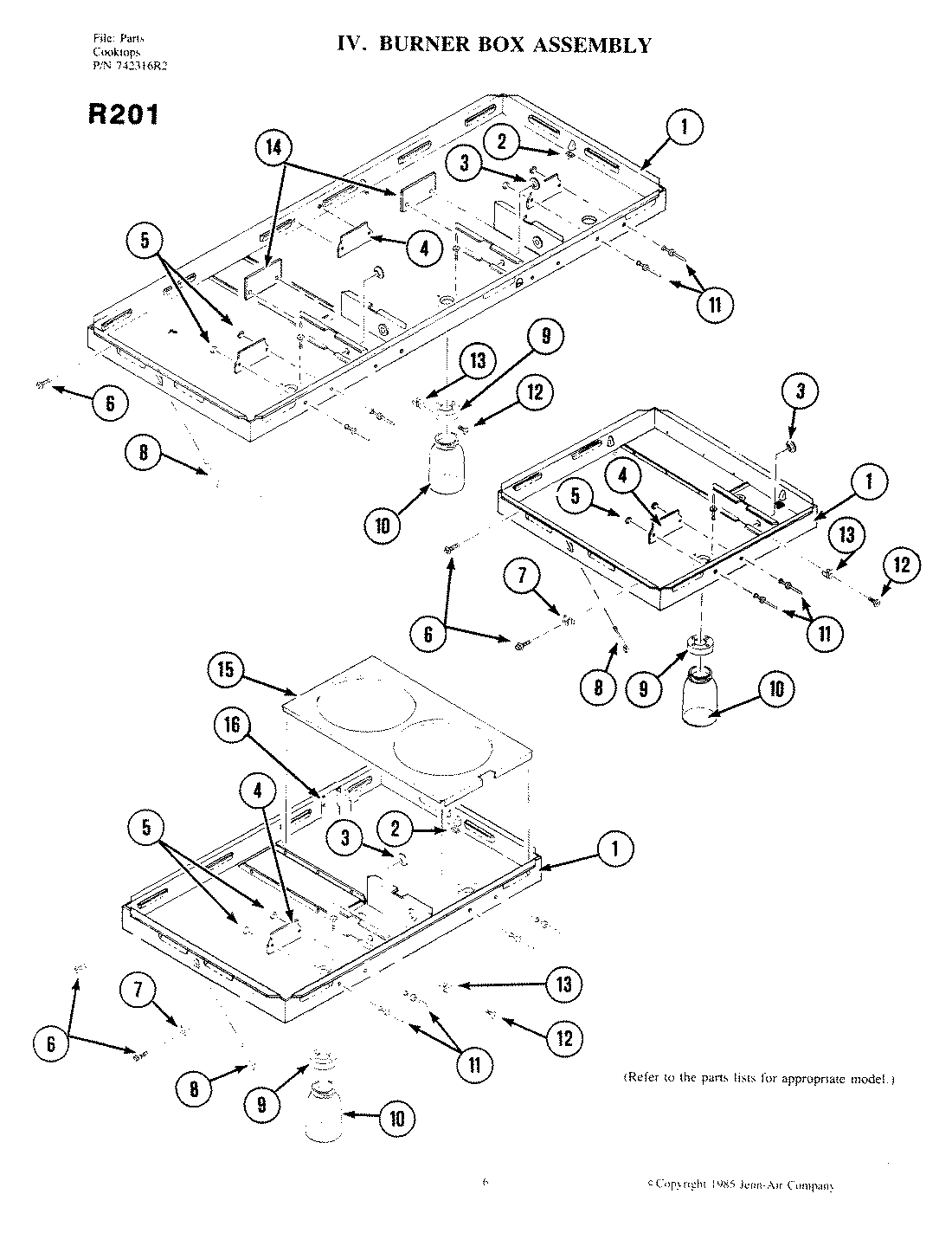

R201 02 – BURNER BOX ASSEMBLY
Products
| Position | Product |
|---|---|
| 1 | MAY 702010 |
| 2 | MAY Y707124 |
| 3 | MAY Y707695 |
| 8 | MAY Y707121 |
| 11 | MAY Y707128 |
| 14 | MAY 707746 |
| 15 | MAY Y707822 |
| 16 | NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED) |
R201 02 – BURNER BOX ASSEMBLY
| Position | Product |
|---|---|
| 1 | MAY 702010 |
| 2 | MAY Y707124 |
| 3 | MAY Y707695 |
| 8 | MAY Y707121 |
| 11 | MAY Y707128 |
| 14 | MAY 707746 |
| 15 | MAY Y707822 |
| 16 | NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED) |
