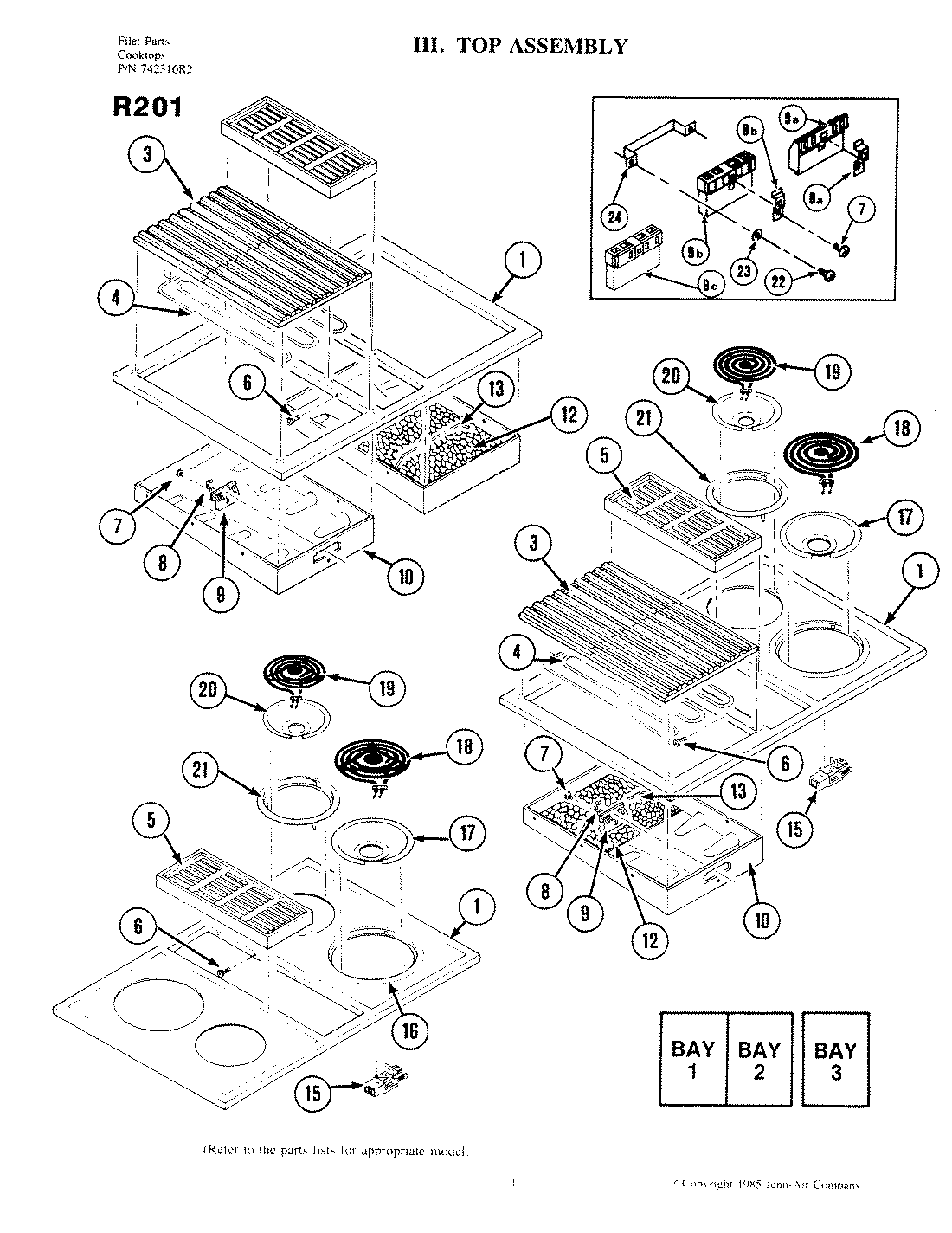

R201 04 – TOP ASSEMBLY

R201 04 – TOP ASSEMBLY

Written by

in

R201 04 – TOP ASSEMBLY

Products

PositionProduct
1MAY 701841
2MAY 707886
5MAY 700667
15MAY 700154
16WPY707453 Whirlpool Range 8" Chrome Adaptor Ring
17715878 Whirlpool Range 8" Chrome Drip Pan
18MAY 715928
19MAY 715927
20715877 Whirlpool Electric Range 6" Chrome Drip Pan
21WPY707454 Whirlpool Range Chrome 6" Adaptor Ring
23NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
