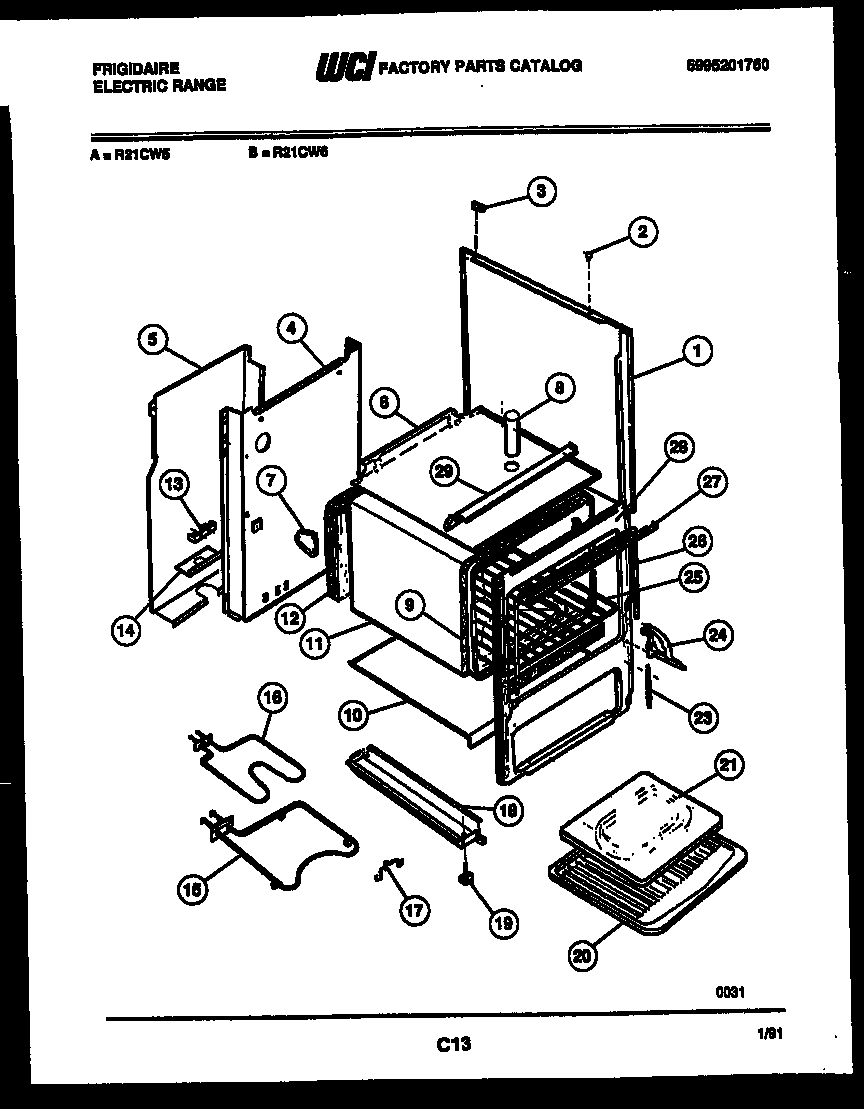

R21CW5 04 – BODY PARTS

Products

Position	Product
*39895	ANTI-TIP KIT
*39895	WCI 08003146
*39895	WCI 19100210113
1	BODYSIDE PANEL-WHITE (2)
3	GROMMET-MAINTOP
4	BACK MAIN
5	COVER-WIRE
6	BURNER BOX-BTM
7	SUPPORT-REAR OVN (2)
8	WCI 08013195
9A	LINER-LEFTSIDE
9B	WCI 3017708
9D	WCI 3017710
9	LINER-RIGHT SIDE
9C	WCI 3017720
10	PAN BOTTOM
11	INSUL WRAP
12	INSUL BACK
13	5304409888 Frigidaire Oven Terminal Block with Hardware
14	SUPPORT-CONDUIT
15	WCI 5303051076
16	WCI 3051071
17	SUPPORT-BROIL ELMNT
18A	Rail,base ,RH
18	RAIL-BASE, LH
20	WCI 5303016973
21	WCI 5303017712
23	SPRING-OVEN DOOR
24	HINGE ASSY-RH
24A	318348801 Frigidaire Oven Left Side Door Hinge
25	WCI 3016158
26	SEAL OVEN DOOR
27	SUPPORT-CONTROL PNL
28	FRAME-FRONT
29	GROMMET
