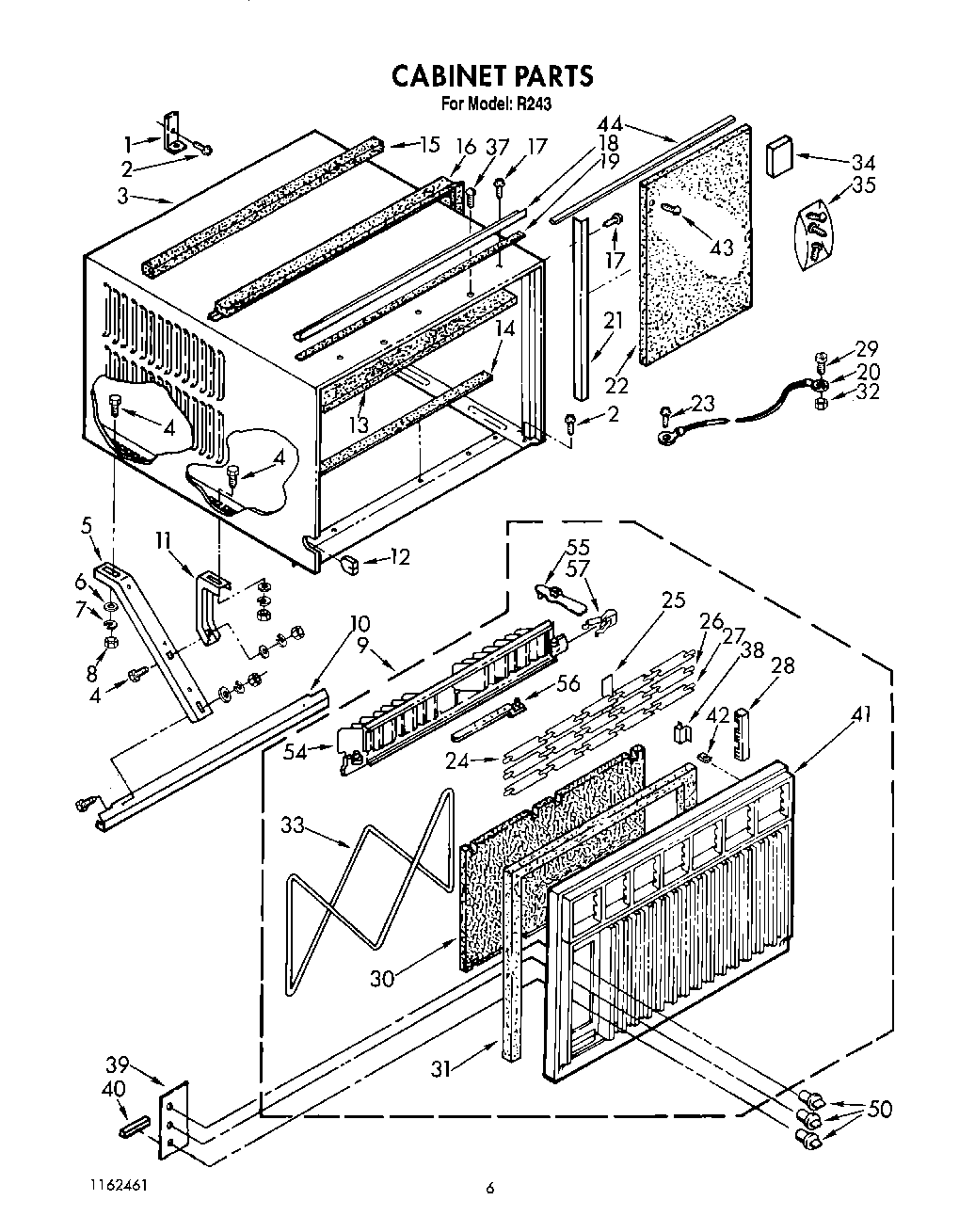

R243 04 – CABINET

Products

Position	Product
1	Bracket
2	Screw (Window Lock Bracket)
3	Cabinet
4	Bolt, 1/4 x 3/4 (6)
5	Support, Cabinet (2)
6	WP120393 Whirlpool Washer Assembly
7	Lockwasher (6)
8	Nut, Hex (6)
9	Front, Cabinet (Assembly)
10	Bracket, Support
11	Support, Retainer (2)
12	Grommet, Appliance Cable
13	Cabinet Insulation (Right Side)
13	Cabinet Insulation (Left Side)
13	Insulation Cabinet
14	Seal, Bottom
15	Gasket, Meeting Rail
16	Gasket, Sash
17	WP308685 Whirlpool Microwave Screw
18	Angle, Top Mounting
19	Strip, Seal
20	Wire, Ground
21	Angle (2)
22	Board, Filler
23	Screw, 8 x 3/8
24	Louver, Horizontal (4)
25	Retainer (4)
26	Louver, Horizontal (Handle)
27	Louver, Horizontal (Relieved)
28	Rack, Louver (2)
29	Screw, 8 x 3/8
30	Filter, Air
31	Seal, Front (Bottom)
31	Seal, Front (Top & Sides)
32	WP486255 Whirlpool Air Conditioner Nut
33	Retainer, Filter
34	Spacer, Block (4)
35	Bag, Accessory
37	Screw (2)
38	Clip, Retainer (4)
39	Plate, Escutcheon
40	Spacer, Escutcheon Plate (2)
41	Front, Cabinet
42	Clip, Cabinet Front (2)
43	WP965173 Whirlpool Dishwasher Screw
44	Seal
50	Knob, Control (3)
54	Louver, Vertical
55	Handle, Vertical Louver (2)
56	Link, Vertical Louver (2)
57	Detent Spring (2)
